9
12. Insert the 12 x 1 Pan Head Screw into the inside of the front upright DX for a ratchet lever stop. When transporting the loom lift
and pull the lever sideways, then let it hang down.

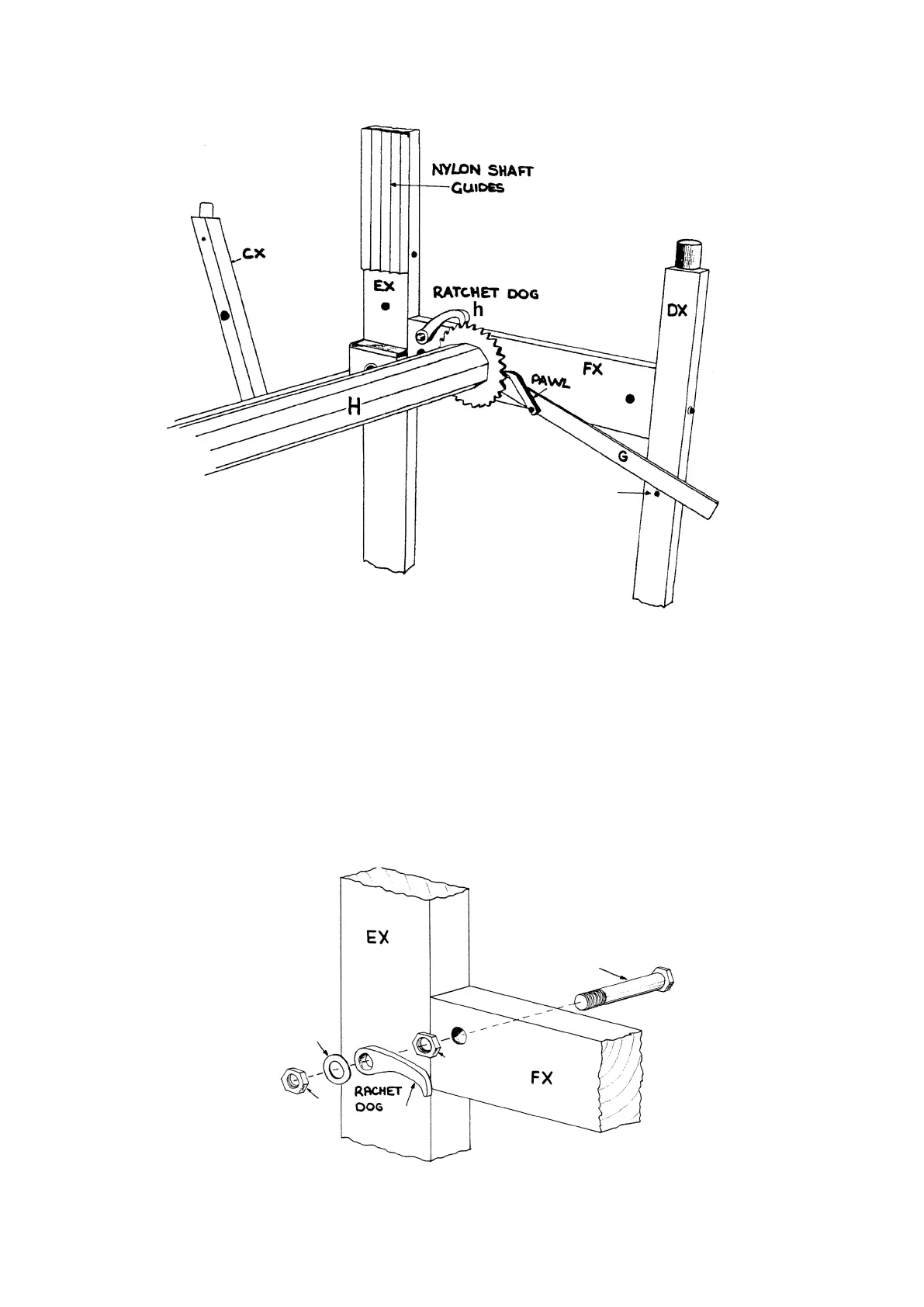

13. Attach the ratchet dog h to the right cloth beam support FX using a M8 x 50 Hex Head Bolt, M10 Hex Nut, M8 x 19 Washer and
M8 Nylock Nut. Tap the head of the bolt into the counter-bored hole. Do not overtighten as the dog should move freely after
tightening the nut.
12 x 1 Pan
Head Screw
M10 Hex Nut
M8 x 50 Hex
Head Bolt
M8 x 19
Washer
M8 Nylock
Nut
To Next Page
