Ashley AWC21 - Repair Parts Identification; Main Assembly Parts List; Parts Replacement and Warranty

18

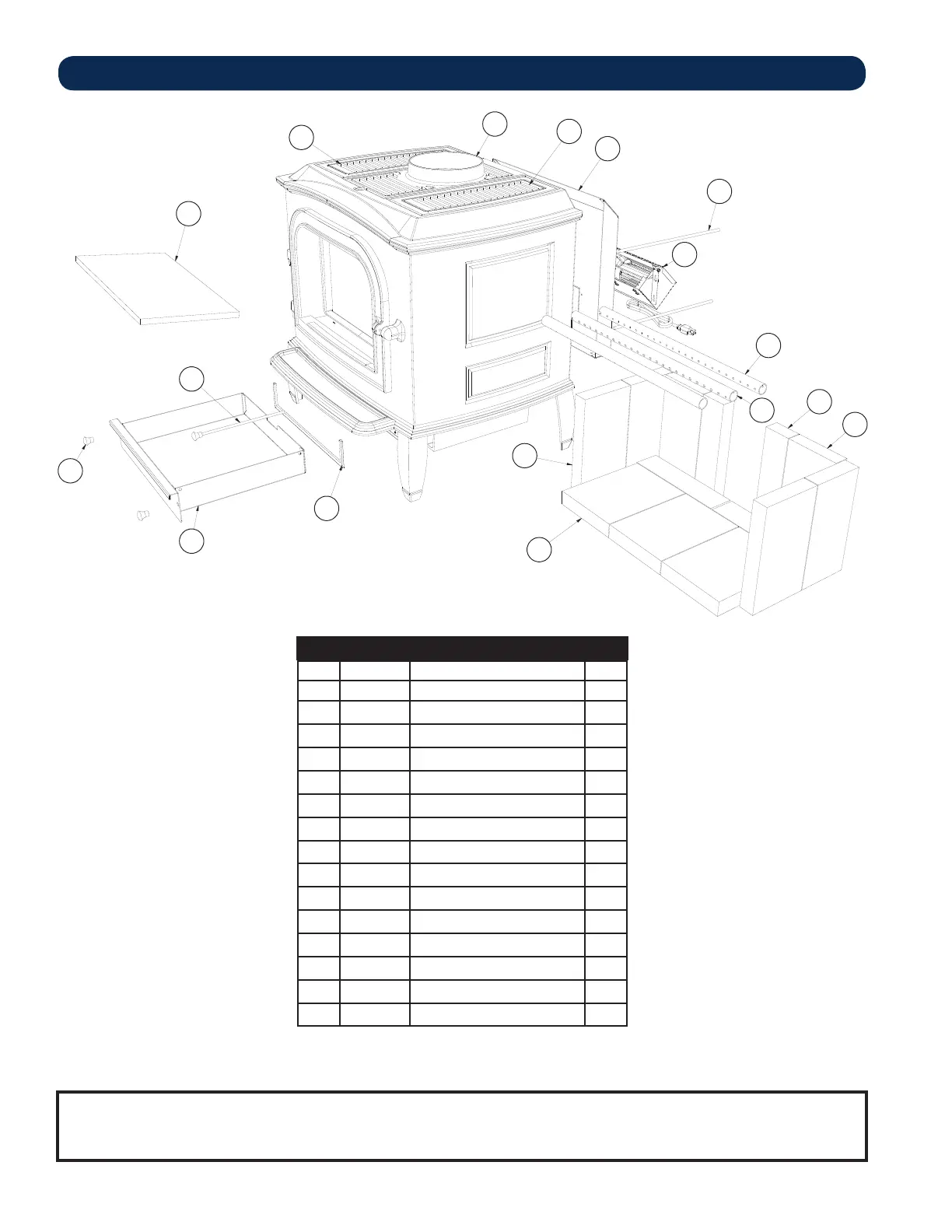

REPAIR PARTS
Key Part No. Description Qty.
1 89066 Firebrick (4-1/2 X 9) 6
2 891492 Blower Assembly (B36) 1
3 891414 Half Firebrick 4
4 86656 Secondary Air Tubes 2
5 86655 Secondary Air Tube, Rear 1
6 69942 Heatshield Weldment 1
7 891095 Firebrick (60 X 8-1/4) 3
8 891987 Plastic Knob 3
9 69945 Weldment, Ash Pan 1
10 86668 Damper Rod 1
11 83614 15" Threaded Rod 4
12 88147 Bafe Board 1
13 40619 Top Cast Grate Left 1
14 40620 Top Cast Grate With Flue 1
15 40621 Top Cast Grate Right 1
16 88174 Gasket-Flat 1
IN ORDER TO MAINTAIN WARRANTY, COMPONENTS MUST BE REPLACED USING ORIGINAL
MANUFACTURERS PARTS PURCHASED THROUGH YOUR DEALER OR DIRECTLY FROM THE
APPLIANCE MANUFACTURER.
USE OF THIRD PARTY COMPONENTS WILL VOID THE WARRANTY.
2
12
16
15
7
14
9
10
11
17
1
8
6
5
4
3
13
