Back wall / Arrière Mur
Side wall / Paroi Latérale Side wall / Paroi Latérale
Back wall / Arrière Mur
Side wall / Paroi Latérale Side wall / Paroi Latérale
Back wall / Arrière Mur
Ceiling / Plafond
Floor Protector / Protection de Plancher
K
H
L
J
M M
C
B
A
E
E
D
D
F
G

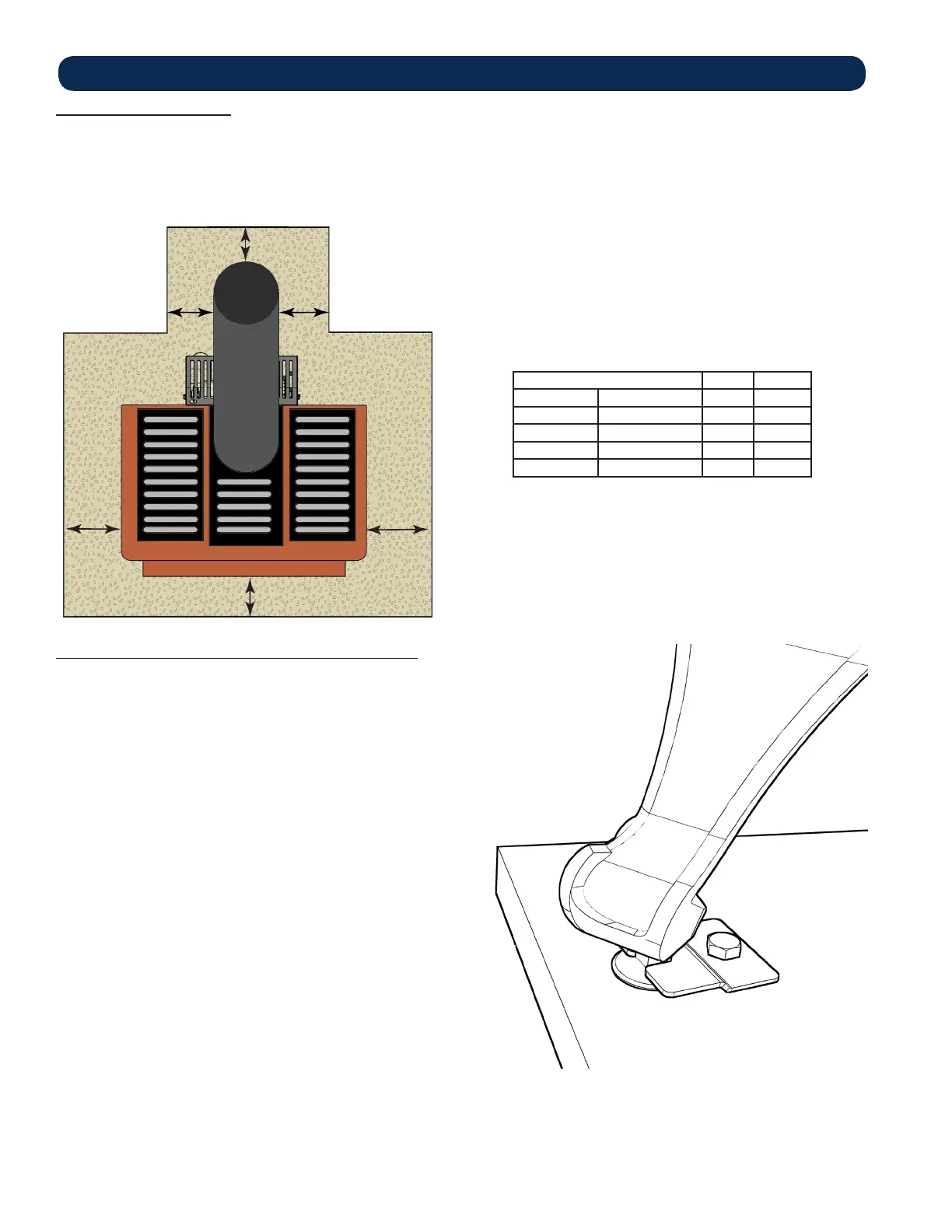

FLOOR PROTECTOR
The stove must be placed on solid concrete, solid masonry, or when installed on a combustible oor, on a oor protector. The oor
protector is required to provide heat, live ember, and ash protection and must be of a non-combustible, continuous solid surface to
protect against inltration of live embers and ash. The stove must be placed on solid concrete, solid masonry, or when installed on a
combustible oor, on a Type 2 oor protector listed to standard UL 1618 with a minimum R value of 1.03 and a minimum thickness
of 1/2” or equivalent.
Dimension Inch mm
H* Front 16 407
J Flue rear 2 51
K** Left 6 204
L** Right 6 204
M Flue Side 2 51
 Canadian installations require 18” (457mm)
  Canadian installations require 8” (203mm)
SPECIAL MOBILE HOME REQUIREMENTS
U WARNING! - Do not install in a sleeping room
U CAUTION! - The structural integrity of the mobile
home oor, wall, and ceiling/roof must be maintained.
In addition to the previously detailed installation requirements,
mobile home installations must meet the following requirements:
• The heater must be permanently attached to the oor.
1. There are two holes in the pedestal base, use 3/8” bolts
through the oor.
2. To attach the leg model use two 3/8-16 UNC bolts
through the oor.
• The heater must be electrically grounded to the steel chassis
of the mobile home with 8 GA copper wire using a serrated or
star washer to penetrate paint or protective coating to ensure
grounding.
• When moving your mobile home, all exterior venting must
be removed while the mobile home is being relocated. After
relocation, all venting must be reinstalled and securely fastened.
• Outside Air is mandatory for mobile home installation. See
your dealer for purchasing.
• Check with your local building ofcials as other codes may
apply.
MOBILE HOME ATTACHMENT
INSTALLATION
