Asko D1996FI - WATER LEVEL SETTINGS

Model D1996FI, SS, and HNDL
(DW 95FI)
Page
Date
2000-06
30
SERVICE INFORMATION
Product: DW95 Date: 98-03-13
TOPIC: WATER LEVEL

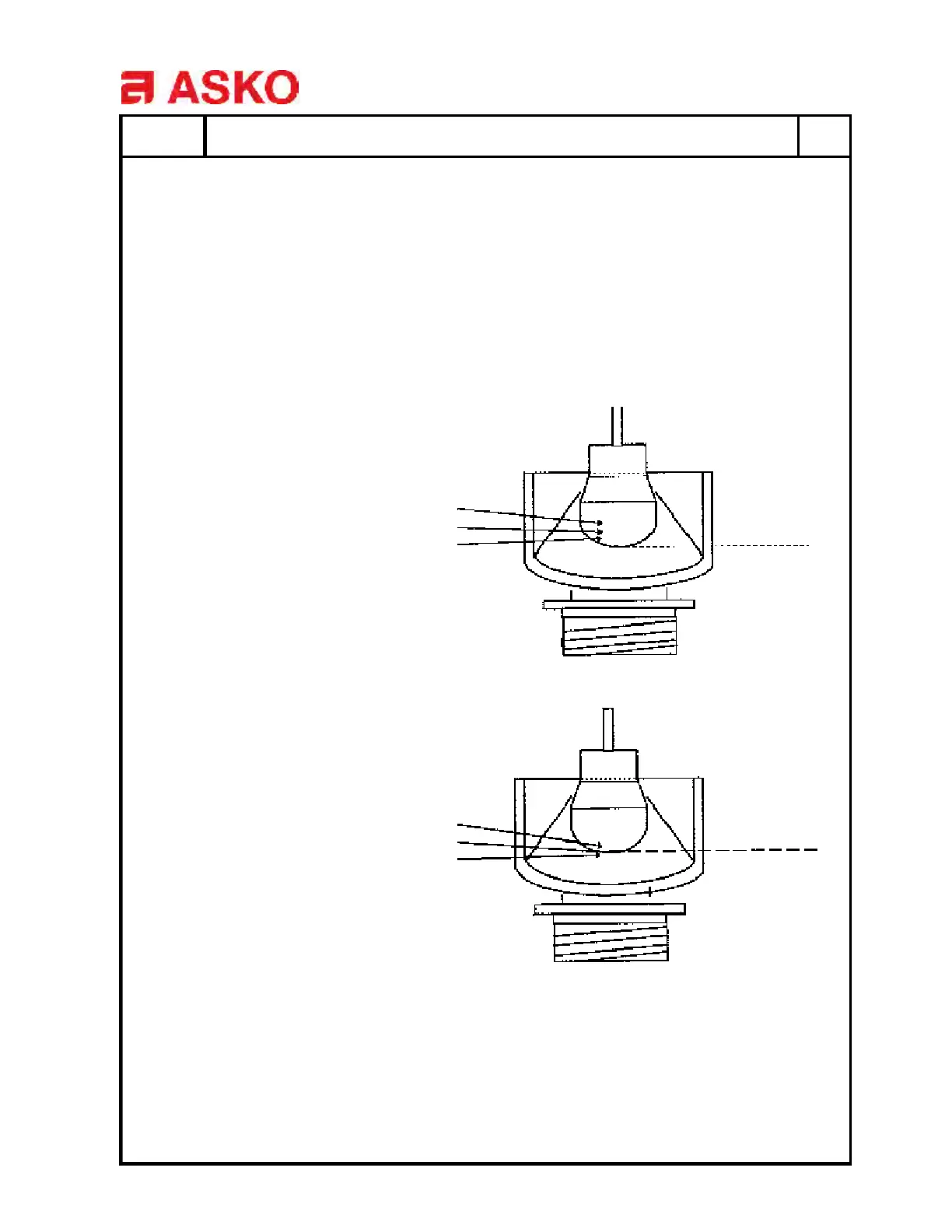

Switch level transferred to measuring points on the coil arm bearing.
Timer-controlled machines
Water flow inlet valve = 3.8 +/- 5% ltr / min
Water flow inlet valve = 3.8 +/- 5% ltr / min
Intake time = 60 seconds
Intake time = 57 seconds
Max. tol. 3.8 +5% = 3.9 ltr +3 mm
Electronic machines
Point of reference
Point of reference
Max. tol. 3.8 +/- 5% = 3.9 ltr +2 mm
Max. tol. 3.8 -5% = 3.9 ltr +1 mm
Max. tol. 3.8 +5% = 3.7 ltr +1 mm
Max. tol. 3.8 +/- 5% = 3.51 ltr +0 mm
Max. tol. 3.8 -5% = 3.3 ltr -1 mm
Note: Start with dry bottom well, which gives a 2mm lower level.
