Model D1996FI, SS, and HNDL
(DW 95FI)
Date
2000-06
Page
4
PROGRAMS
FAULT INDICATIONS
Blinking lights indicate a machine fault.
Blinking Lights Problem
L3 and L7 Heating element
L1–L8 Overfill
L4 and L5 Thermistor fault (heater control)
L1–L4 Water inlet
FAULT-TRACING PROGRAM
The functions of the electrical components can be tested by pressing S6 five times
then pressing one of the following:
S2 for inlet valve 2
S3 for inlet valve 1
S4 for combi-dispenser
S5 for heating element
S6 for the circulation pump
S7 for the outlet pump
S8 for fan motor and wax motor
Stop the fault-tracing program by pressing one of the program buttons for 3 seconds.
LINKS ON THE PROCESSOR BOARD
(for program variations)
These diodes should be cut for proper U.S.iInstallation:
Link 953: D1796 processor board layout
Link USA: USA processor board layout

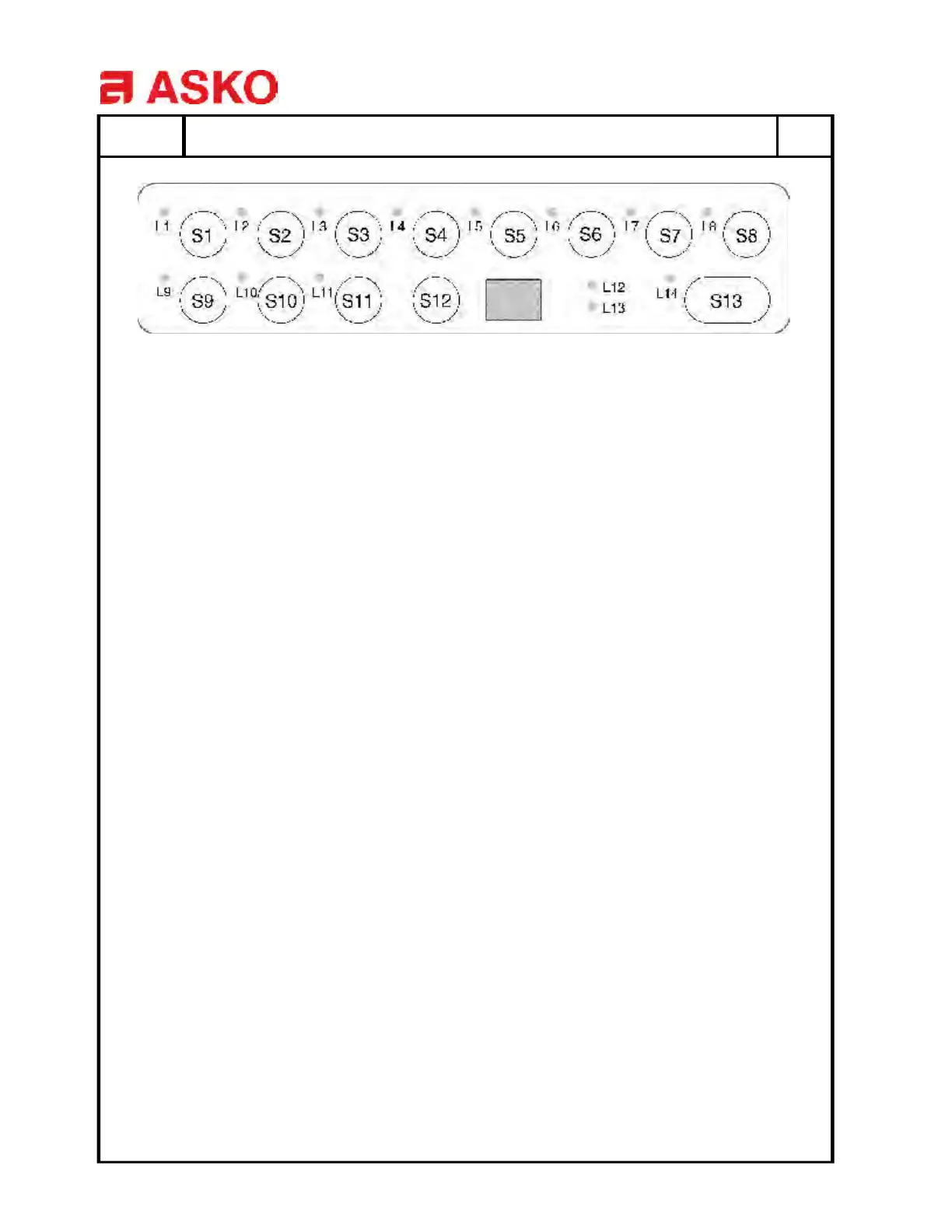

S = Pushbutton switch L = Indicator light
