COMPONENTS AND MEASUREMENT VALUES
46
47
48
49
50
69
(64)
70
(65)
71
(66)
72
(67)
73
(68)
1+2
1
1+2
1
1+2
1
OFF
11
1
OFF
OFF1+2
1+2
1
1+2
1
1+2
1
OFF
21
2
OFF
OFF1+2

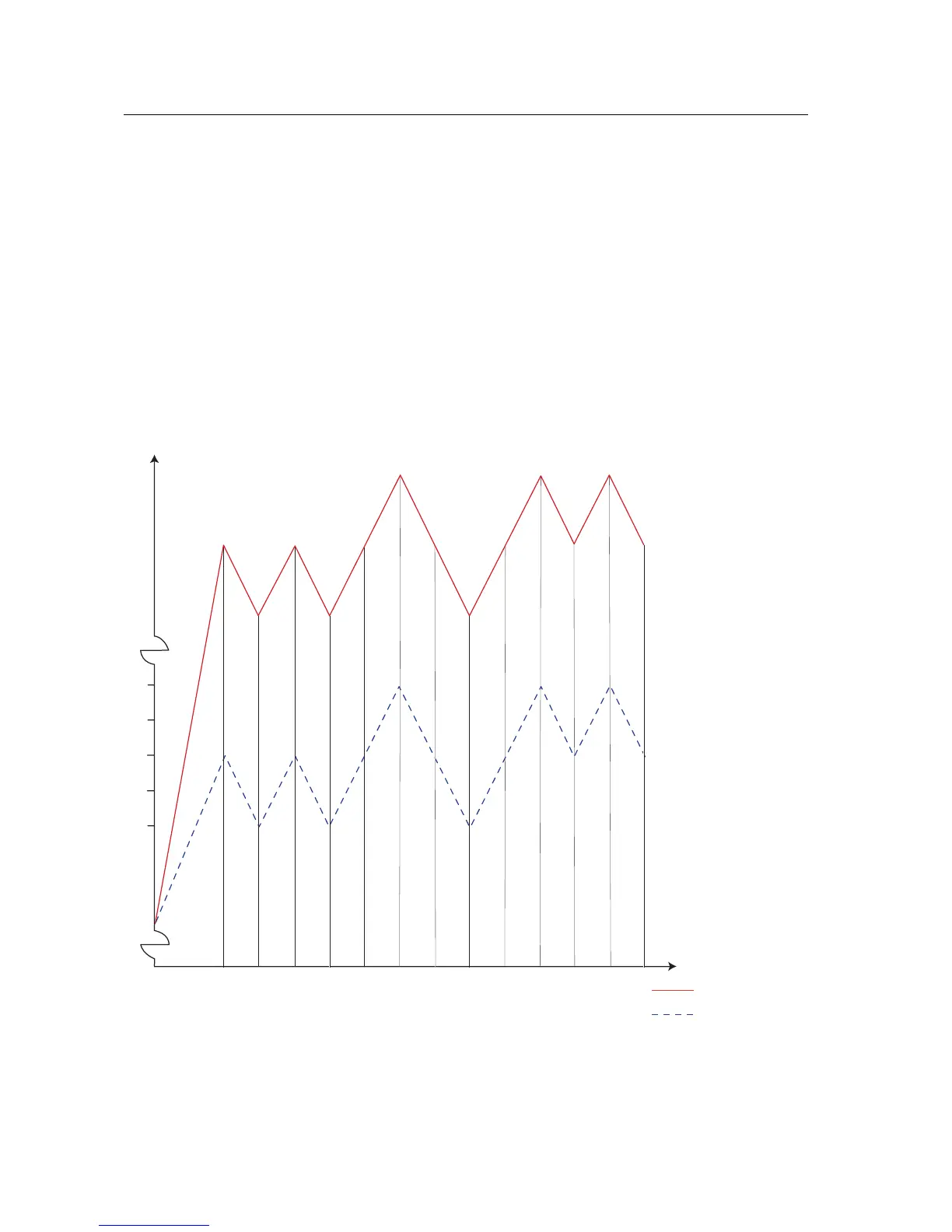

Low Temperature
Normal Temperature
1 = High Power Heater
2 = Low Power Heater
Temperature ˚C
T720/780 2500 W
Part no.: 80 637 71
Resistance: 79,7/25 Ω
The element has a maximum power rating of
2500W but consists of two loops of 1900W and
600W, which permits rewiring from 2500W to
1900W.
