Asko T780 - Side Panels

75
SERVICE
3
5
10
4
5
SIDE PANELS

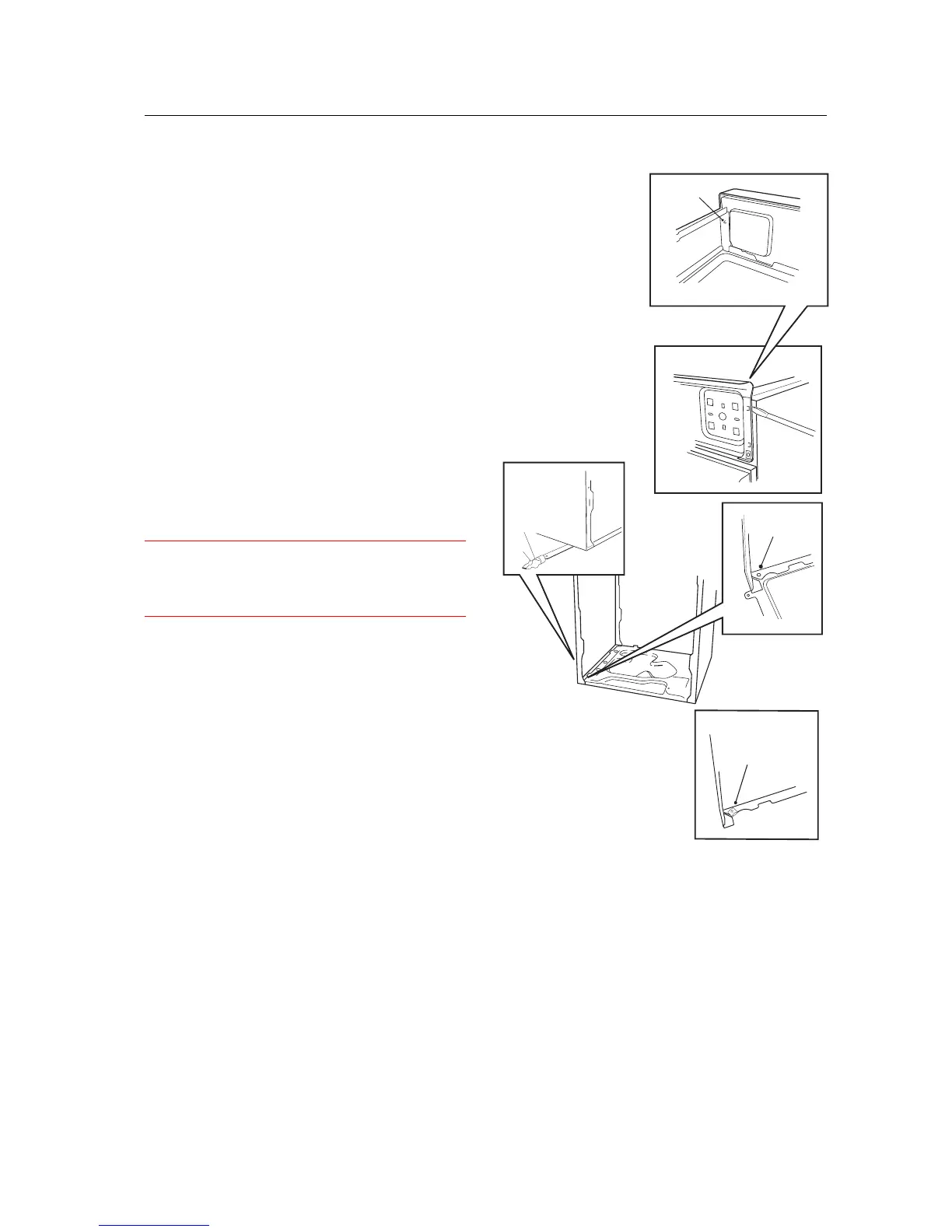

Changing the side panels
1. Remove the front panel in accordance with
the section "Front panel - removing...".
2. Remove the panel in accordance with the sec-
tion "Panel - removing...".
3. Early models: the hole is marked out on the
bottom.
4. Early models: the hole is marked out on the
front rail.
5. Using a narrow chisel, cut off the rivet heads
(7) and break those on the front rail off with
a screwdriver (2).
6. Lift away the side panel.
7. File or grind smooth the places where the ri-
vets were in the bottom and use a polygrip to
flatten the front rail.
WARNING
The edges of the bottom and the front rail where
the rivets were placed must be completely flat and
smooth.
8. Early models: Drill a 6.5 mm diameter hole
in the bottom at the marking.
9. Early models: Drill a 5 mm diameter hole in
the front rail at the marking.
10. Install 3 clips at the bottom of the side pa-
nels.
11. Screw the side plates to the bottom from un-
derneath and to the front rail.
12. Install the front panel in accordance with the
section "Front panel -installation...".
13. Install the panel in accordance with the sec-
tion "Panel -installation...".
