Asko T780 - Air Extraction System

48
SERVICE
2
1
2
3
AIR EXTRACTION SYSTEM

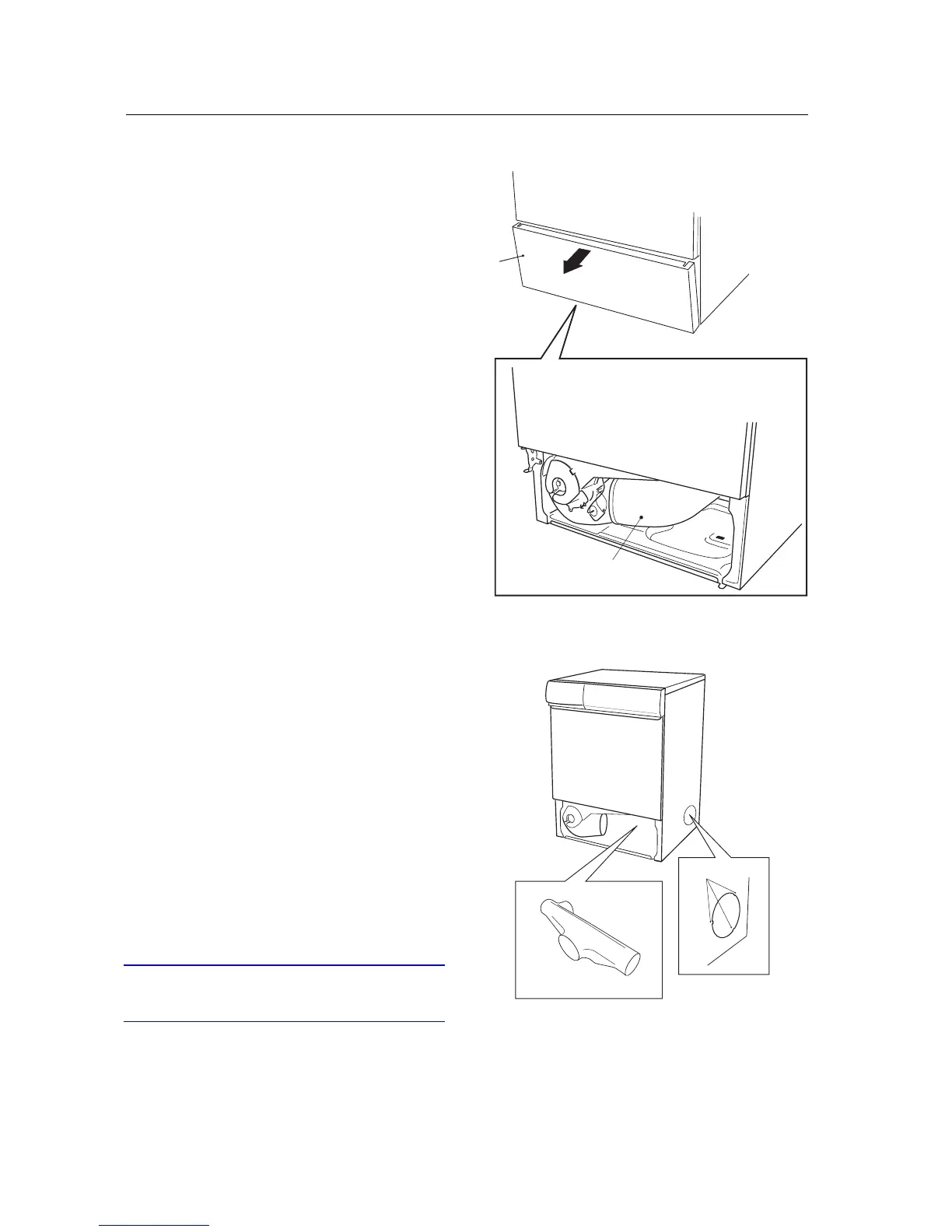

Removing the exhaust air duct hook
1. Remove the bottom cover.
2. Take hold of the duct hook and twist it free.
Installing exhaust air duct hook
3. Push one end into the exhaust air duct T-pie-
ce.
4. Press it on to the exhaust front lip.
Removing the exhaust air duct T-piece
1. Remove the exhaust air duct hook.
2. Take off the two exhaust covers from the side
and/or rear panels by pressing with a screw-
driver on the three latches.
3. Lift out the exhaust air duct T-piece.
Installing the exhaust air duct T-piece
4. Position the exhaust air duct T-piece on the
bottom.
5. Install both exhaust covers.
IMPORTANT
The covers must be connected to the T-piece out-
lets.
6. Install the exhaust air duct hook.
