SERVICE
2
3
Ra / R1 a
Rb / R1 b
R13 / R1 13
R43 / R1 43
R23/ R1 23
R33 / R1 33
R14 / R1 14
R24 / R1 24
R34 / R1 34
R44 / R1 44
CONTACTOR

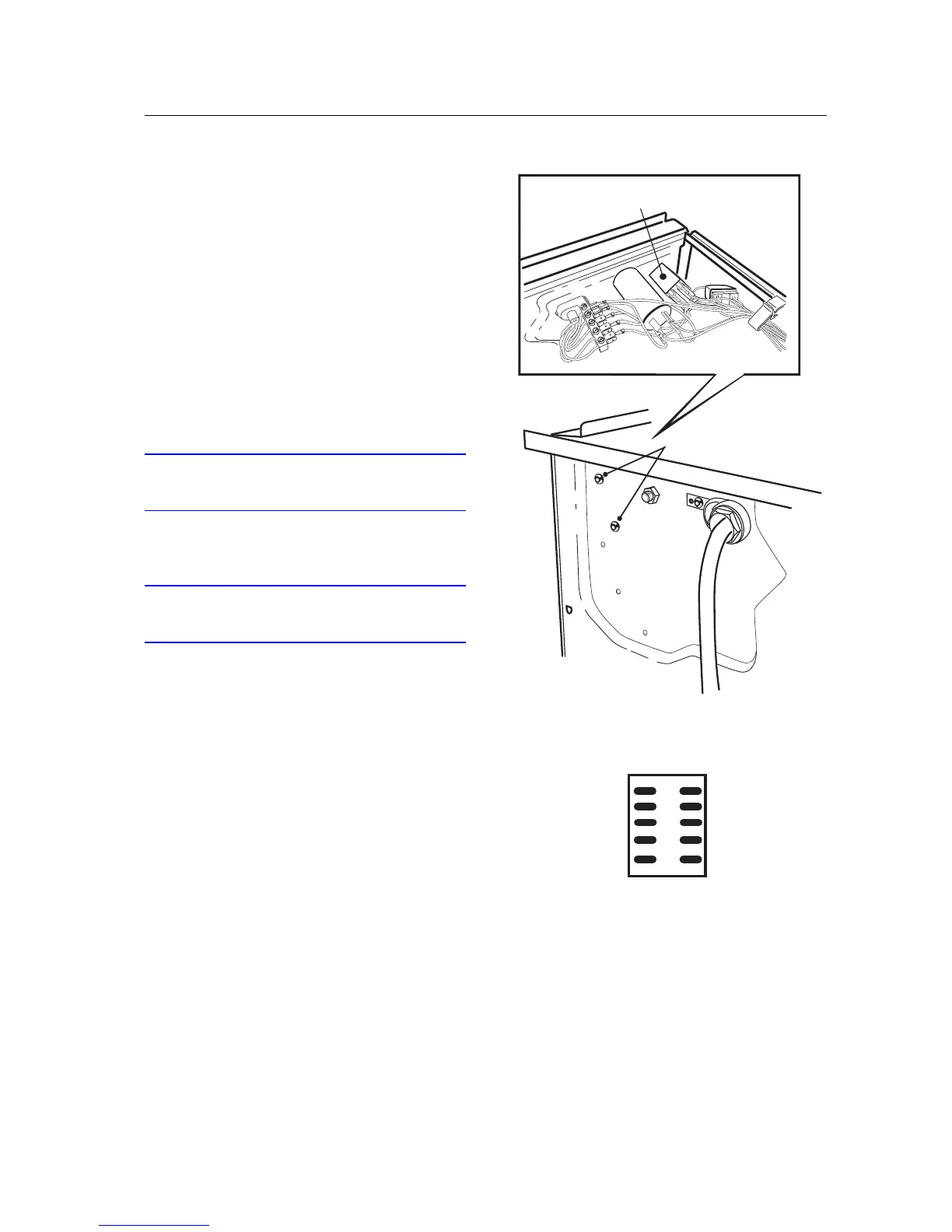

Removing the contactor
1. Remove the three screws at the rear edge and
lift off the top cover.
2. Remove the wiring to the contactor.
3. Unscrew the 2 screws that secure the contac-
tor.
Installing the contactor
4. Fit the contactor.
5. Install the wiring in accordance with the la-
bels on the wires.
IMPORTANT
Connect the wires to the correct flat pin connec-
tors.
6. Fit the top cover.
IMPORTANT
Don't forget the 2 star washers for the outermost
screws.
