Asko TD25 - Timer Diagram; Programme Flow Description; Table Explanation

Service manual TD25
17
Timer diagram
80 800 48 Rev 02 Service maual TD25 EN
Product information TD25
Start
Components
Step times
Program Option

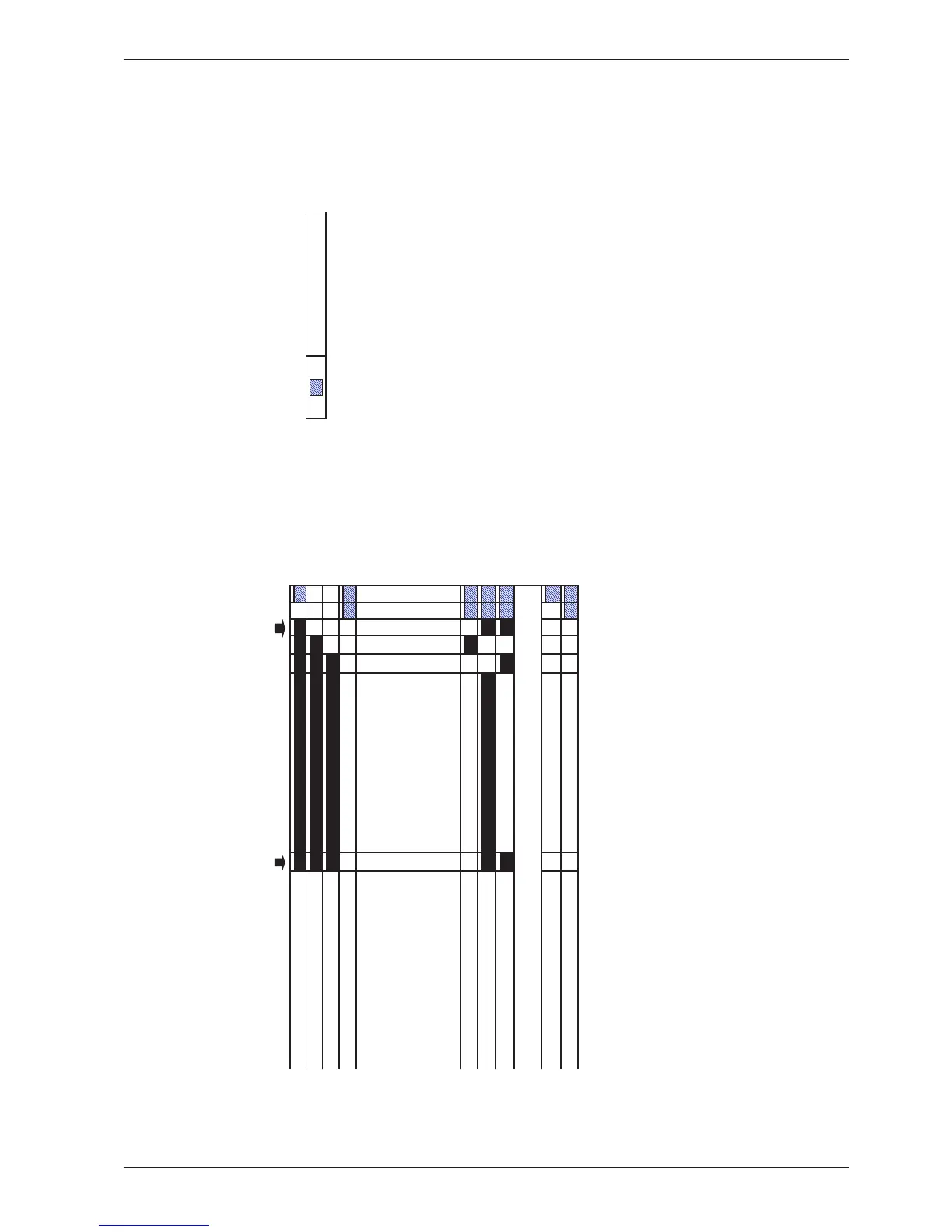

Timer diagram (description of program flow) TD25
Motor
2'
Drain pump (30 sec. on, 210 sec. off) Heater Buzzer
Drying sequence (max 3 hours)
20 minutes - 2 hours
5 minutes - 2 hours
Buzzer
3'' on, 57'' off
3' - 15'
3''
Air fluff Auto program Time program Anti crease
Cool-down
Table explanation
Option
Appendix: Timer diagram Page 1
