Priming
Preparing to Spray Oil–Based Materials After Spraying Water–Based
Materials
NOTE: To spray water–based materials after spraying
oil–based materials, follow the procedure outlined
below, using water instead of mineral spirits to flush
system.

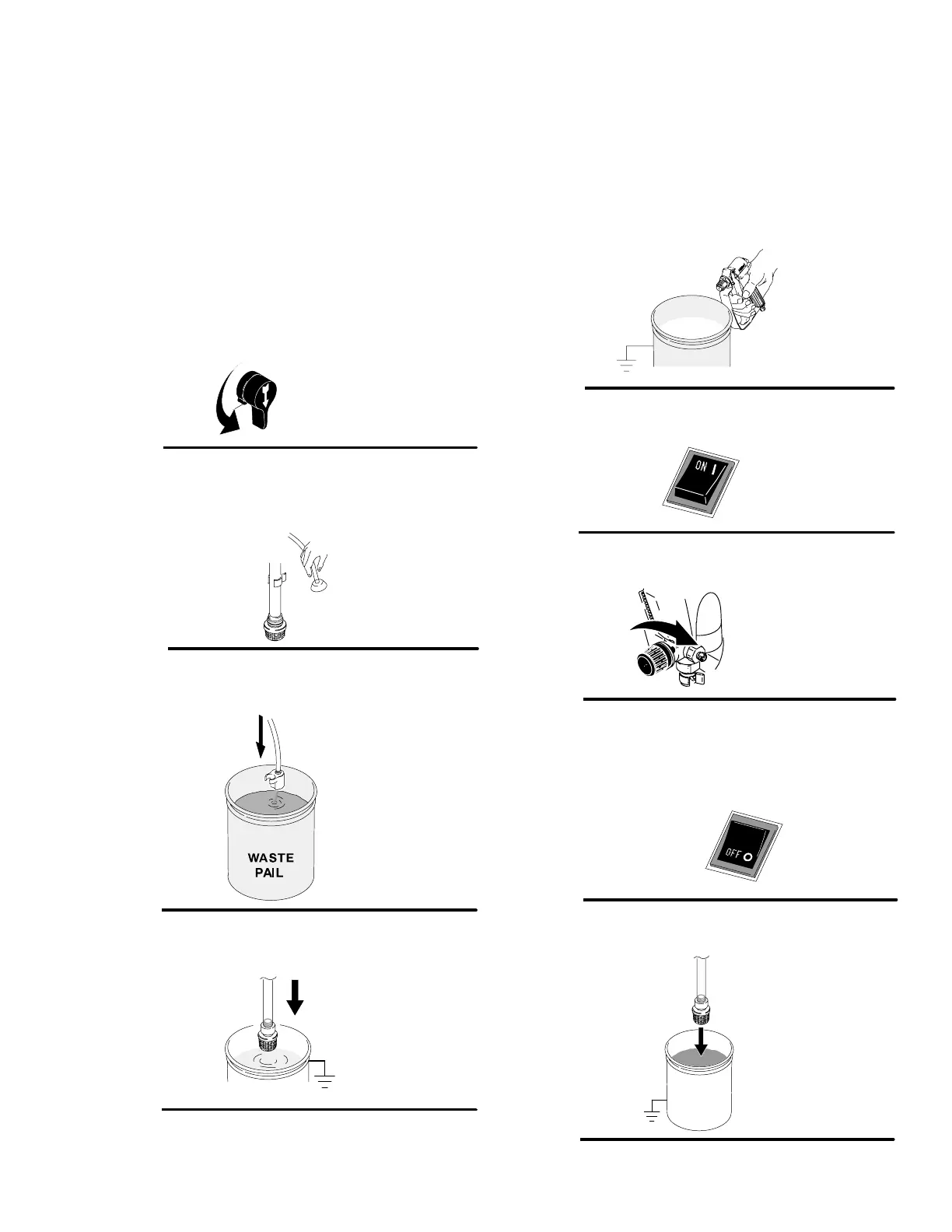

1. Turn Spray/Prime valve to PRIME.
Fig. 22
PRIME
2. Separate prime tube (smaller) from suction tube
(larger).
Fig. 23
prime
tube
suction
tube
3. Place prime tube in waste pail.
Fig. 24
4. Place suction tube in bucket of mineral spirits.
Fig. 25
Mineral Spirits
5. Plug sprayer into grounded outlet.
6. Point gun into waste pail.
Fig. 26
WASTE
ti6913a
7. Turn power switch ON.
Fig. 27
8. Turn up Pressure Control knob until pump starts.
Fig. 28
ti6906a
9. Flush until mineral spirits flow out of prime tube
into waste pail, for 30 to 60 seconds.
10. Turn power switch OFF.
Fig. 29
11. Submerge suction tube in paint.
Fig. 30
PAINT
