Aspes APV1201 - Page 17

avoid the electrical shock and larger deformation caused by the heat radiation from the

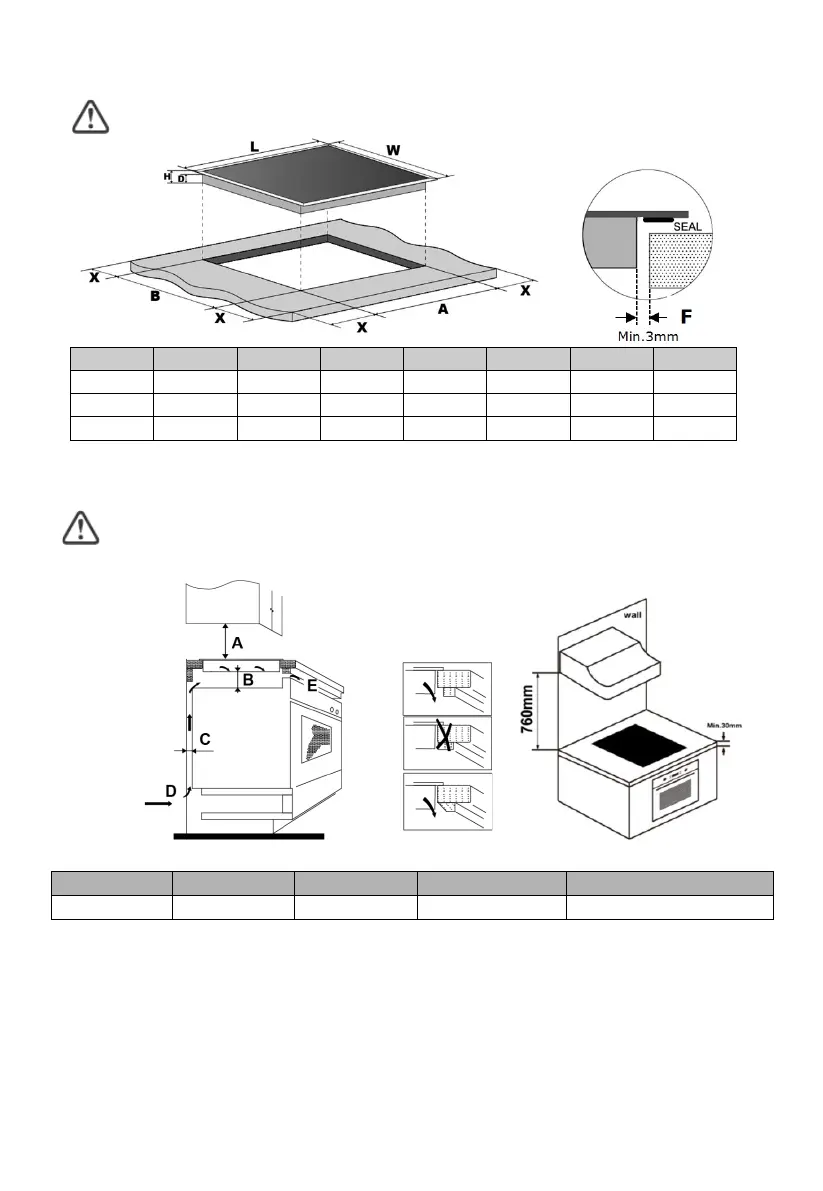

hotplate. As shown below:
Note: The safety distance between the sides of the hob and the inner surfaces of
the worktop should be at least 3mm.
L(mm)
W(mm)
H(mm)
D(mm)
A(mm)
B(mm)
X(mm)
APV1201
290
520
50
46
270
490
50 min.
APV2303
290
520
50
46
270
490
50 min.
API2300I
590
520
50
62
560
490
50 min.
Under any circumstances, make sure the hob is well ventilated and the air inlet and
outlet are not blocked. Ensure the hob is in good work state. As shown below:
Note: The safety distance between the hotplate and the cupboard above the hotplate
should be at least 760 mm.
A(mm)
B(mm)
C(mm)
D
E
760
50 min.
20 min.
Air intake
Air exit 5mm
WARNING: Ensuring Adequate Ventilation
Make sure the hob is well ventilated and that air inlet and outlet are not blocked. In order
to avoid accidental touch with the overheating bottom of the hob, or getting
unexpectable electric shock during working, it is necessary to put a wooden insert, fixed
by screws, at a minimum distance of 50mm from the bottom of the hob. Follow the
requirements below.
