This document is an instruction manual for Aspes cooktops, specifically models APV1201, APV2303, and API2300I. It covers safety warnings, installation, operation, maintenance, troubleshooting, and technical specifications.

Function Description

These are electric cooktops designed for household cooking. They utilize either ceramic or induction heating technology, depending on the model. Induction cooktops generate heat directly in the pan through electromagnetic vibrations, making them efficient and economical. Ceramic cooktops use heating elements that warm the glass surface, which then transfers heat to the cookware.

Important Technical Specifications

The manual provides detailed technical specifications for each model:

APV1201 (2 Zones)

Supply Voltage: 220-240V~ 50-60Hz
Installed Electric Power: 3000W
Circular Cooking Zones (diameter of useful surface area):
- Front: 190mm
- Rear: 155mm
Energy Consumption per Cooking Zone:
- Front: 185.84 Wh/kg
- Rear: 194.91 Wh/kg
Energy Consumption of the Hob: 190.37 Wh/kg
Default Working Timer (hours) per Power Level:
- Levels 1-3: 8 hours
- Levels 4-6: 4 hours
- Levels 7-9: 2 hours

APV2303 (3 Zones)

Supply Voltage: 220-240V~ 50-60Hz
Installed Electric Power: 5700W
Circular Cooking Zones (diameter of useful surface area):
- Left up: 15.5mm
- Left down: 19.0mm
- Right up: 30.0mm
Energy Consumption per Cooking Zone:
- Left up: 195.29 Wh/kg
- Left down: 183.85 Wh/kg
- Right up: 180.86 Wh/kg
Energy Consumption of the Hob: 186.66 Wh/kg
Default Working Timer (hours) per Power Level:
- Levels 1-3: 8 hours
- Levels 4-6: 4 hours
- Levels 7-9: 2 hours

API2300I (3 Zones)

Supply Voltage: 220-240V~ 50-60Hz
Installed Electric Power: 7200W
Circular Cooking Zones (diameter of useful surface area):
- Left up: 16.0mm
- Left down: 18.0mm
- Right up: 28.0mm
Energy Consumption per Cooking Zone:
- Left up: 186.9 Wh/kg
- Left down: 196.5 Wh/kg
- Right up: 192.5 Wh/kg
Energy Consumption of the Hob: 191.97 Wh/kg
Default Working Timer (hours) per Power Level:
- Levels 1-3: 8 hours
- Levels 4-6: 4 hours
- Levels 7-9: 2 hours

Usage Features

The cooktops feature touch controls that respond to the ball of a finger. A beep confirms each touch. The controls must be kept clean and dry for proper operation.

General Operation

Start Cooking: Touch the ON/OFF key for one second. The display will show "-" or "--", indicating standby mode. Place a suitable pan on the desired cooking zone, ensure the pan bottom and cooking zone are clean and dry. Touch the heating zone selection control, and its indicator will flash. Select the power level using the MINUS or PLUS keys. If no heat setting is chosen within 1 minute, the hob automatically switches off.
Finish Cooking: To turn off a cooking zone, touch its selection control, then touch the MINUS key to set it to "0". To turn off the entire cooktop, touch the ON/OFF control.
Hot Surface Indicator: An "H" will display for hot cooking zones, disappearing when the surface cools to a safe temperature. This can also be used as an energy-saving function to heat further pans on a still-hot hotplate.
Automatic Shut Down: As a safety feature, the hob will automatically shut down if left unattended for a period, with default working times varying by power level (e.g., 8 hours for levels 1-3, 2 hours for levels 7-9). If a pot is removed, the hob stops heating immediately and switches off after 2 minutes.

Induction Hob Specific Features

Boost Function: Select a zone, then touch the BOOST key (7). The zone indicator will show "P", and the power will reach maximum. This function can be used in any cooking zone and returns to its original setting after 5 minutes. To cancel, select the zone in Booster mode, touch the MINUS key (2), and set the desired level.
Small Articles Detection: If an unsuitable size, non-magnetic pan, or small metallic item (knife, fork, key) is left on an induction hob, it will automatically go into standby in 1 minute. The fan will continue to cool the hob for another minute.

Ceramic Hob Specific Features

Extended Zone Control: If equipped, an extendable zone can be used in two modes:
- A (Center zone): Only the first heating unit is on.
- B (Extended zone): Both first and second heating circuits are on. To activate the outer zone, select the cooking zone, then touch the extendable zone key (7). The indicator display will show "=". To cancel, press the extendable zone key (7) to turn off the second heating circuit, then select the desired power level.

Common Features

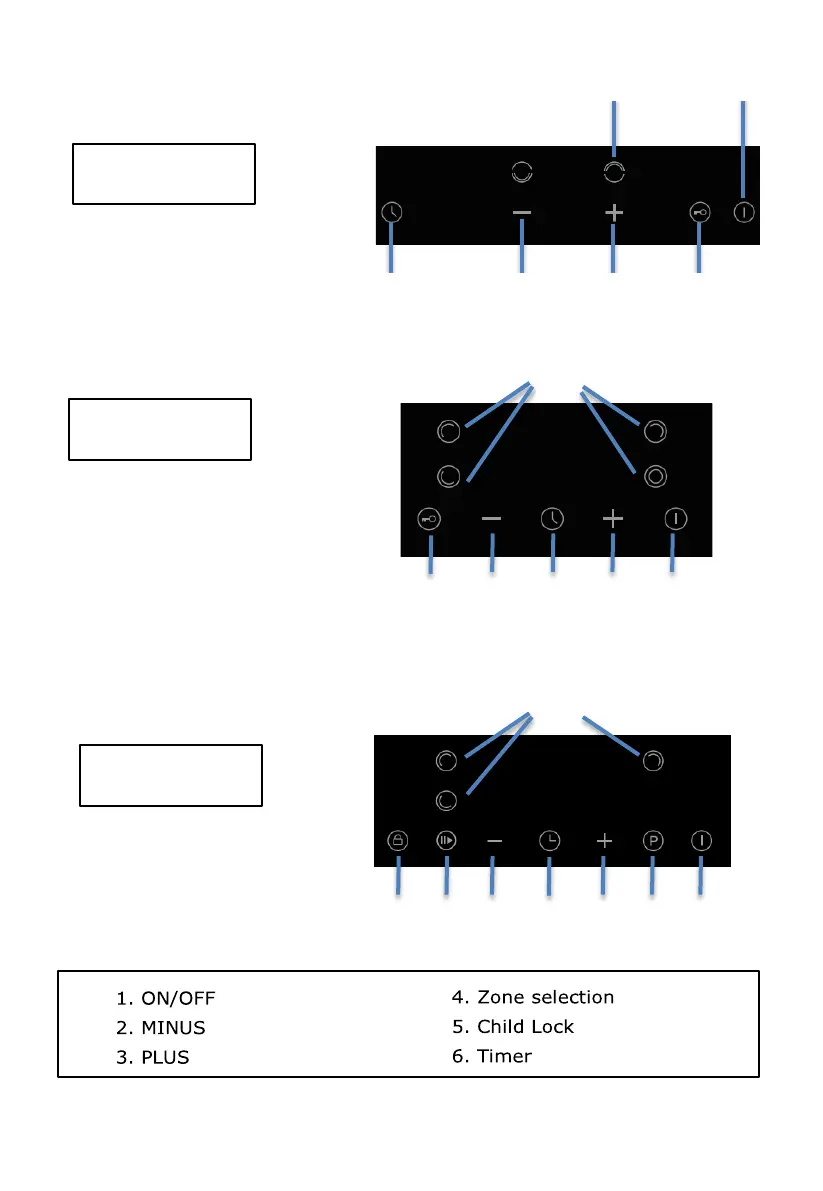

Locking Controls: Touch and hold the lock key (5) to prevent unintended use. The timer indicator will show "Lo". All controls except ON/OFF are disabled. To unlock, touch and hold the lock key (5) for 3 seconds. In an emergency, the hob can always be turned off with the ON/OFF control, but must be unlocked for the next operation.
Pause Mode (Optional): Touch the Pause key (8) to pause heating. All indicators will show "II". All controls except ON/OFF are disabled. The hob will shut down after 10 minutes if not exited from pause mode. Touch the Pause key again to exit.
Timer Control:
- Minute Minder: Can be used without selecting a cooking zone. Touch timer key (6), "10" will show, and "0" flashes. Set time with MINUS/PLUS keys. Touch timer key again, and the tens digit flashes. Set desired dozens of minutes. The display shows remaining time, and a buzzer beeps for 30 seconds when time is up.
- Setting Timer for Cooking Zones: Touch the heating zone key (4) for the desired zone. Touch timer key (6), "10" shows, and "0" flashes. Set time with MINUS/PLUS keys. Touch timer key again, and the tens digit flashes. Set desired dozens of minutes. A red dot next to the power level indicator illuminates, showing the zone is selected. When the timer expires, the corresponding cooking zone switches off automatically. Other zones continue operating. For multiple zones, decimal dots of relevant zones are on, and the minute display shows the minimum timer. The dot of the corresponding zone flashes.
- Cancel Timer: Touch the heating zone selection control (4) for the zone with the timer. Touch the timer control (6), and the indicator flashes. Touch the MINUS key (2) to set the timer to "00", cancelling it.

Cookware Selection

Induction Cooktops: Only use cookware with a base suitable for induction cooking (look for the induction symbol). A magnet test can confirm suitability (magnet should be attracted to the pan base). If no magnet is available, put water in the pan and check if the display flashes and the water heats. Unsuitable materials include pure stainless steel, aluminum or copper without a magnetic base, glass, wood, porcelain, ceramic, and earthenware.
General: Cookware should have a smooth, flat base and match the size of the cooking zone. Using a pot slightly wider than the zone maximizes efficiency. Pots less than 140mm may not be detected. Always center the pan on the cooking zone. Do not use cookware with jagged edges or a curved base. Always lift pans; do not slide them to avoid scratching the glass.

Cooking Tips

Reduce temperature setting once food boils.
Use a lid to reduce cooking times and save energy.
Minimize liquid or fat to reduce cooking times.
Start cooking on a high setting, then reduce once food is heated through.

Maintenance Features

Cleaning

Everyday Soiling (fingerprints, marks, non-sugary spills): Switch off the cooktop. Apply a cooktop cleaner while the glass is warm (not hot). Rinse and wipe dry with a clean cloth or paper towel. Switch the power back on. Avoid heavy-duty scourers or harsh cleaning agents. Never leave cleaning residue.
Boilovers, Melts, Hot Sugary Spills: Immediately remove with a fish slice, palette knife, or razor blade scraper (suitable for glass cooktops), being careful of hot surfaces. Switch off power at the wall. Hold the blade at a 30° angle and scrape the soiling to a cool area. Clean up with a dishcloth or paper towel. Follow steps for everyday soiling. Remove stains as soon as possible to prevent permanent damage. Be aware of the razor-sharp blade of a scraper.
Spillovers on Touch Controls: Switch off the cooktop. Soak up the spill. Wipe the control area with a clean damp sponge and cloth. Wipe the area completely dry. Switch the power back on. The cooktop may beep and turn itself off if there is liquid on the controls.
General: Do not use scourers or harsh abrasive cleaning agents on induction glass. A steam cleaner is not to be used.

Troubleshooting (Failure Display and Inspection)

The manual provides a table of error codes and their solutions for both ceramic and induction hobs.

Ceramic Hob Errors:
- E0 & repeated beep: Overheating protection. Stop cooking until internal temperature returns to normal. Contact after-sales service if PCB failure is suspected.
- E1: Open circuit failure of thermocouple. Contact after-sales service.
Induction Hob Errors:
- E1: Signal lost (PCB failure). Contact after-sales service.
- E2/E3: Abnormal high/low input voltage. Stop cooking and wait for voltage to normalize. Contact service center if not resolved.
- E4/E5/E6: Thermistor failure. Contact service center.
- E7: Abnormal high temperature (dry burning). Cut off power, wait 30 minutes, and switch on. Contact service if not working.
- E8/E9: Failure of IGBT sensor. Contact service center.
- E0: IGBT Overheat. Check if the fan is working. Contact service center if not.
- EE: Display PCB failure. Contact service center. Users are warned not to disassemble the unit themselves.

Installation

Work Surface: Cut the work surface according to provided dimensions. A minimum of 5cm space around the hole and a work surface thickness of at least 30mm are required. Use heat-resistant and insulated material.
Ventilation: Ensure the hob is well ventilated, and air inlet/outlet are not blocked. A minimum safety distance of 3mm between the hob sides and inner worktop surfaces, and 760mm between the hotplate and cupboard above, must be maintained. A wooden insert, fixed by screws, at a minimum distance of 50mm from the bottom of the hob is necessary to prevent accidental touch with the overheating bottom or electric shock.
Pre-Installation Checks: Work surface must be square, level, heat-resistant, and insulated. If installed above an oven, the oven must have a cooling fan. Installation must comply with all clearance requirements and regulations. A suitable isolating switch providing full disconnection from mains power supply (3mm air gap contact separation in all poles) must be incorporated, accessible to the customer. Consult local building authorities if in doubt. Use heat-resistant and easy-to-clean finishes for surrounding wall surfaces.
Post-Installation Checks: Power supply cable must not be accessible through cupboard doors/drawers. Adequate fresh air flow to the hob base. A thermal protection barrier below the hob if installed above a drawer/cupboard. Isolating switch must be accessible.
Fixing Brackets: Place the unit on a stable, smooth surface. Fix the hob to the work surface by screwing 2 brackets to the bottom of the hob, adjusting position for table top thickness.
Electrical Connection: Must be done by a qualified person. Check domestic wiring system suitability, voltage matching rating plate, and cable section capacity. Do not use adapters, reducers, or branching devices. Power supply cable must not touch hot parts and temperature must not exceed 75°C. An omnipolar circuit-breaker with a minimum 3mm opening between contacts must be installed if connecting directly to mains. Installer must ensure correct electrical connection and compliance with safety regulations. Cable must not be bent or compressed, and checked/replaced by authorized technicians only. Bottom surface and power cord must not be accessible after installation.
Placement Restrictions: Do not install directly above a dishwasher, fridge, freezer, washing machine, or clothes dryer due to humidity. The hotplate must be installed to ensure good heat radiation. Sandwich layer and adhesive must be heat-resistant.

Safety Warnings

The manual emphasizes several safety warnings:

Electrical Shock Hazard: Disconnect from mains before maintenance. Essential earth wiring. Alterations by qualified electrician only. Failure to follow can result in shock or death. Do not cook on broken/cracked cooktop; switch off immediately. Switch off before cleaning.
Cut Hazard: Panel edges are sharp. Cooktop scraper blade is razor-sharp when retracted; use with extreme care and store safely out of reach of children.
Important Safety Instructions: Read instructions carefully. No combustible materials on appliance. Install according to instructions by a qualified person. Connect to a circuit with an isolating switch providing full disconnection. Incorrect installation invalidates warranty.
Children and Persons with Reduced Capabilities: Can be used by children aged 8+ and persons with reduced capabilities if supervised and instructed. Children should not play with or clean the appliance without supervision. Do not store items of interest to children in cabinets above the appliance.
Supply Cord: If damaged, must be replaced by manufacturer, service agent, or similarly qualified persons.
Cracked Surface: If cracked, switch off immediately to avoid electric shock.
Metallic Objects: Knives, forks, spoons, lids should not be placed on the hob surface as they can get hot.
Steam Cleaner: Not to be used for cleaning.
External Timer/Remote Control: Appliance not intended for operation by external timer or separate remote-control system.
Fire Hazard: Do not store items on cooking surfaces. Supervise cooking continuously. Unattended cooking with fat/oil can be dangerous and cause fire. NEVER extinguish a fire with water; switch off and cover flame (e.g., with a lid or fire blanket).
Health Hazard: Persons with cardiac pacemakers or other electrical implants should consult their doctor/implant manufacturer before use due to electromagnetic fields.
Hot Surface Hazard: Accessible parts become hot enough to cause burns. Do not let body, clothing, or unsuitable items contact glass until cool. Keep children away. Handles of saucepans may be hot; check they don't overhang other hot zones. Keep handles out of reach of children.
Unattended Use: Never leave unattended when in use. Boilovers cause smoking and greasy spillovers that may ignite.
Work/Storage Surface: Never use as a work or storage surface. Never leave objects/utensils on the appliance.
Warming/Heating Room: Never use for warming or heating the room.
Pan Detection: Always turn off cooking zones and cooktop using touch controls; do not rely on pan detection to turn off zones.
Heavy Objects: Do not place or drop heavy objects on cooktop. Do not stand on cooktop.
Pans with Jagged Edges: Do not use pans with jagged edges or drag pans across glass surface to avoid scratches.
Repair/Replacement: Do not repair/replace any part unless recommended in manual. All other servicing by qualified technician.
Heating Elements: Care should be taken to avoid touching heating elements.
Children under 8: Shall be kept away unless continuously supervised.
Heart Pacemakers: People with heart pacemakers should consult their doctor before using this unit.
