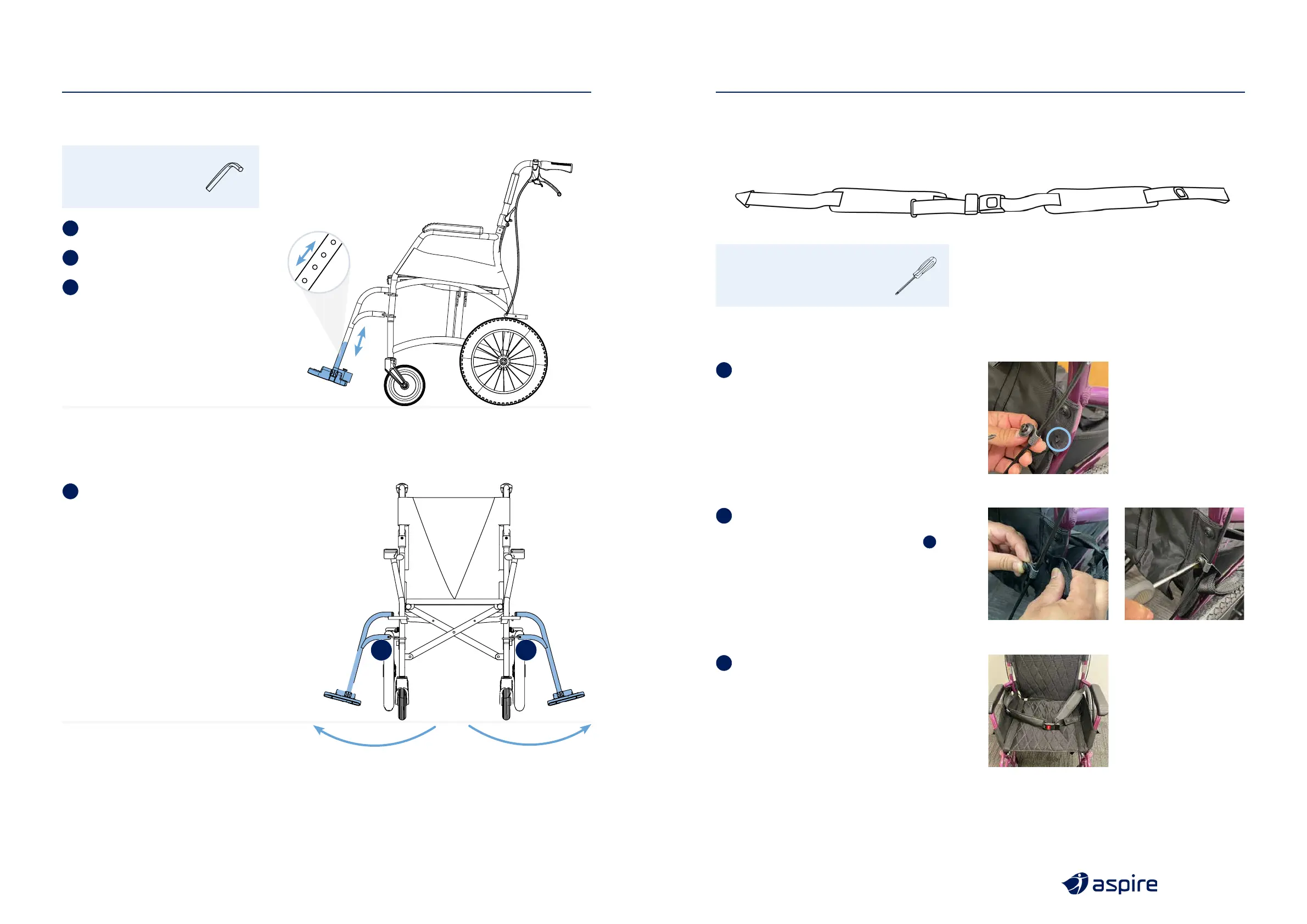

12.1 ADJUSTING LEGREST HEIGHT
1
Using a 5mm Allen key loosen the
bolt and remove the centre pin.
2
Nominate the preferred height by
raising or lowering footplate.
3
To secure, align the centre pin with
the chosen hole and tighten.
12.2 REMOVING LEGRESTS
1
Pull release latch outwards and
hold the latch, simultaneously
rotating the legrest (away from the
centre of the chair) in an outwards
direction until loose. Repeat for the
other side.
12. ADJUSTING YOUR WHEELCHAIR
TOOLS REQUIRED
5mm Allen Wrench
L R
13. ACCESSORIES
TOOLS REQUIRED
5mm Phillips Head Screwdriver
INSTALLING THE LAP BELT
LAP BELT
WCA848300
3
Adjust the length of the lap belt so that it fits
comfortably around the user.
1
Remove screws (both sides) from the lower
backrest mounting point.
2
With screws removed, align the seatbelt
mounting clip with the frame and fasten it in
place with the same screw removed
1
.
The screw should go through the mounting
clip, upholstery and into the same frame
location (both sides).
Ensure it is locked firmly in place to make
sure the seatbelt is securely fitted to
the frame.
