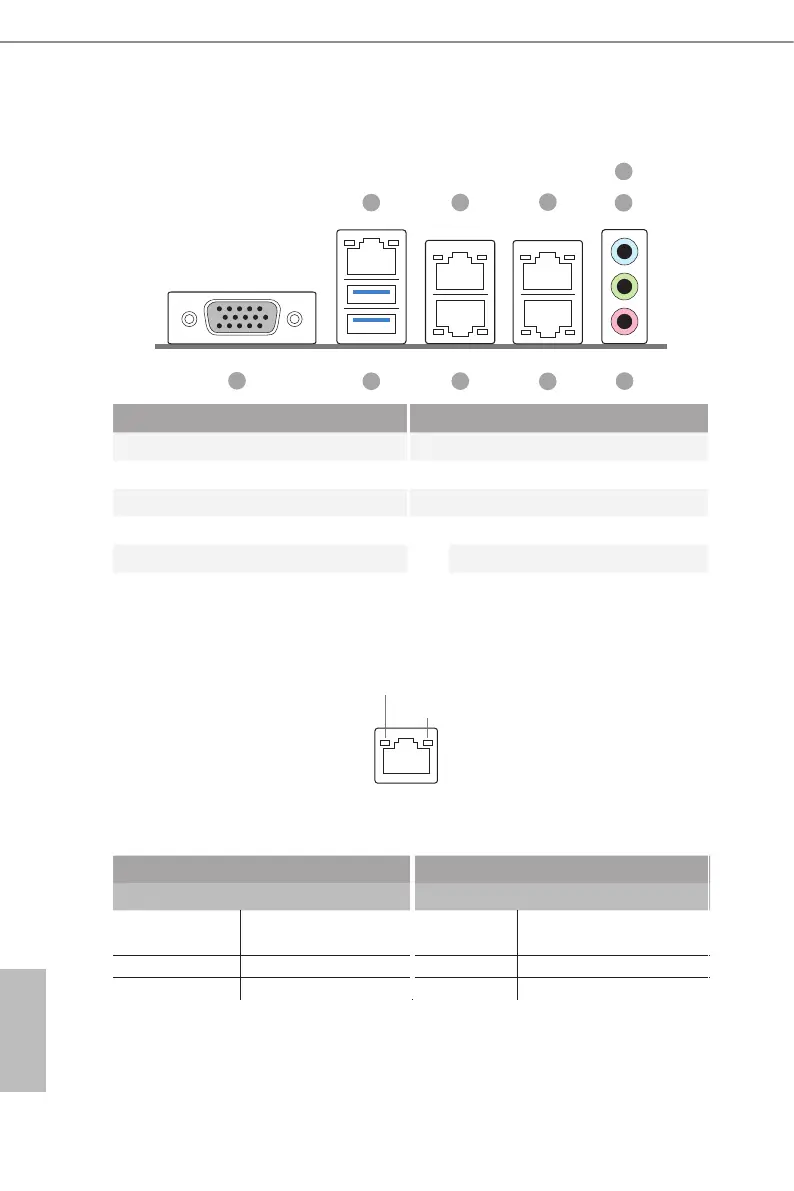

1.6 I/O Panel
1
4
5
3
2
6
7
8
9
10
No. Description No. Description
1 VGA Port (VGA1) 6 GLAN RJ-45 Port (LAN3)**
2 USB 3.0 Ports (USB3_1_2) 7 GLAN RJ-45 Port (LAN4)**
3 LAN RJ-45 Port (IPMI_LAN)* 8 Microphone (Pink)***
4 GLAN RJ-45 Port (LAN1)** 9 Front Speaker (Lime)***
5 GLAN RJ-45 Port (LAN2)** 10 Line In (Light Blue)***
LAN Port LED Indications
*ere are two LED next to the LAN port. Please refer to the table below for the LAN port
LED indications.
Dedicated IPMI LAN Port LED Indications
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10M bps connection or no
link
Blinking Yellow Data Activity Yellow 100M bps connection
On Link Green 1G bps connection
ACT/LINK LED
SPEED LED
LAN Port
