ASROCK Rack EP2C621D12 WS - Page 36

30 31
English

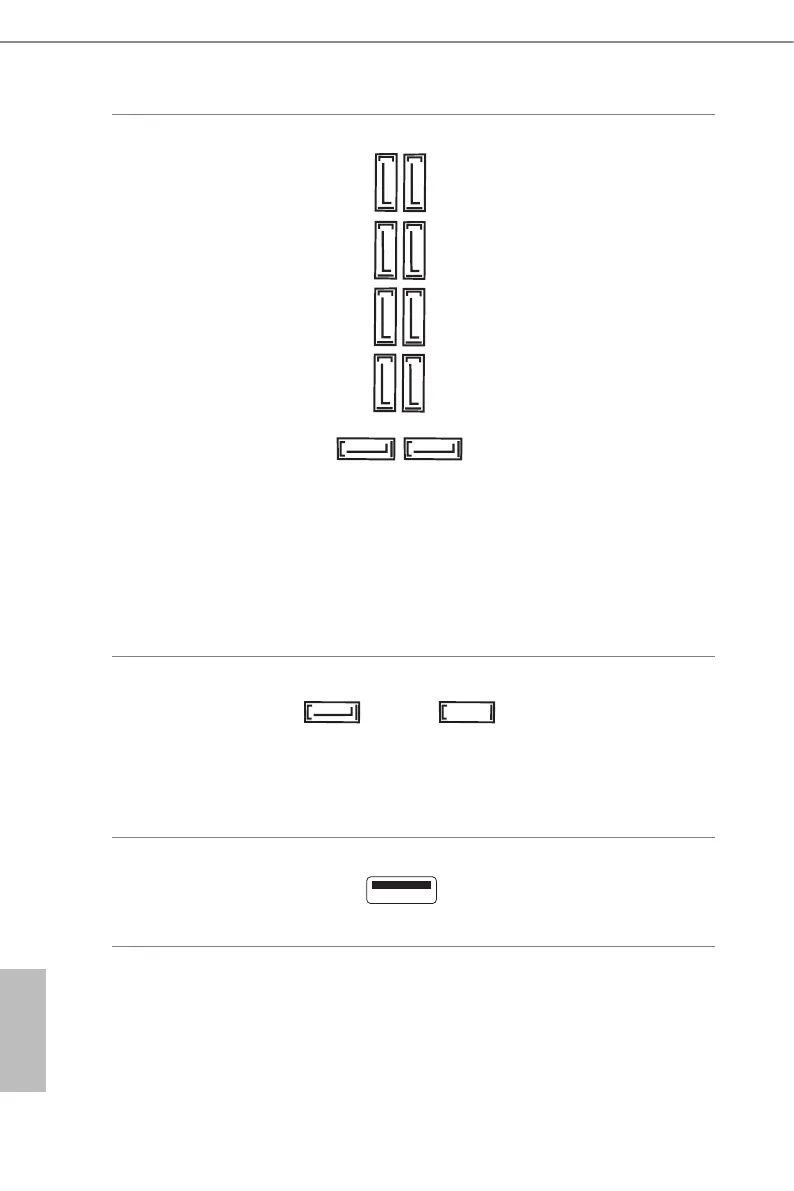

Serial ATA3 Connectors
(SATA_0)
(see p.7, No. 22)
(SATA_1)
(see p.7, No. 23)
(SATA_2)
(see p.7, No. 20)
(SATA_3)
(see p.7, No. 21)
(SATA_4)
(see p.7, No. 18)
(SATA_5)
(see p.7, No. 19)
(SATA_6)
(see p.7, No. 16)
(SATA_7)
(see p.7, No. 17)
(SSATA_0)
(see p.7, No. 32)
(SSATA_1)
(see p.7, No. 34)
SSA TA_0SSA TA_1
SA T A_0
SA T
A_ 1
SA T A_2
SA T A_3
SA T A_4
SA T A_5
SA T A_6
SA T A_7
ese ten SATA3 connectors
support SATA data cables for
internal storage devices with
up to 6.0 Gb/s data transfer
rate.
Serial ATA3 DOM
Connectors
(SSATA_2)
(see p.7, No. 28)
(SSATA_3)
(see p.7, No. 24)
SSA TA _3
SSA TA_2
e SATA3 DOM
connectors support
both a SATA DOM
(Disk-On-Module) and
a SATA data cable for
internal storage device.
USB 3.0 Connector
(USB3_1)
(see p.7, No. 38)
