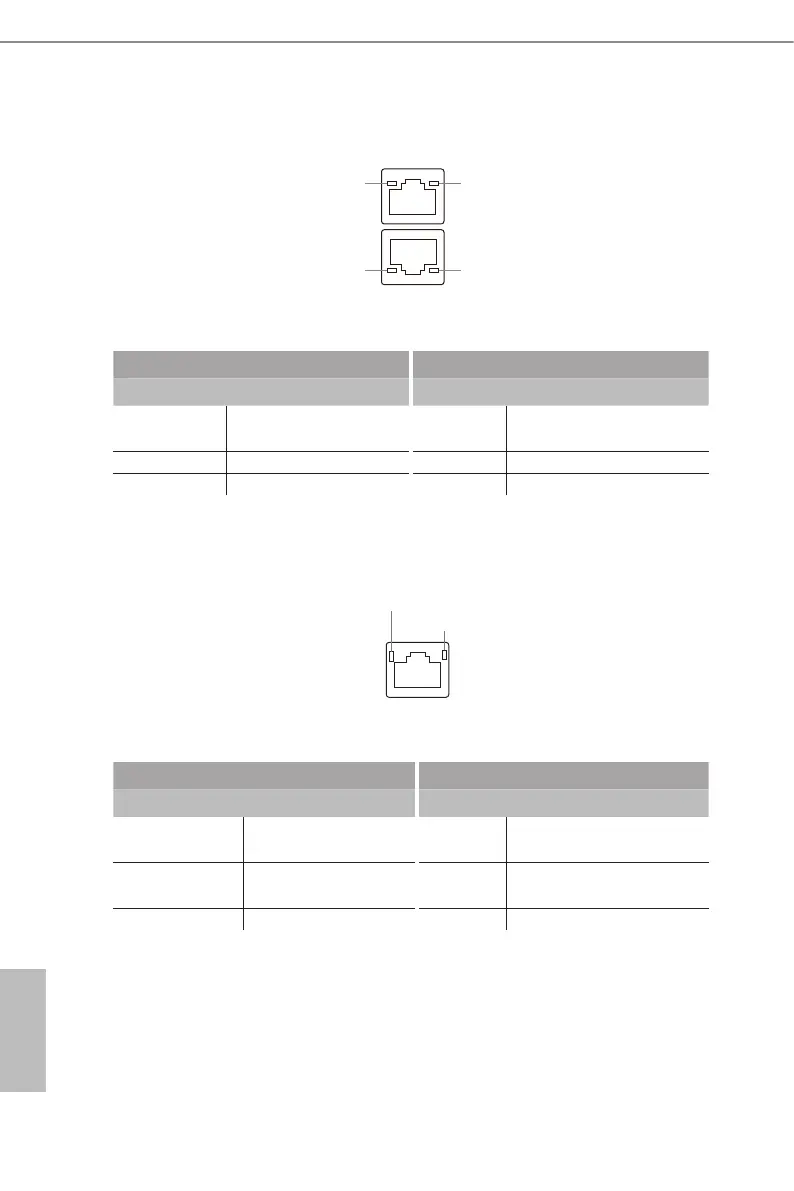

**ere are two LEDs on each LAN port. Please refer to the table below for the LAN port
LED indications.
2.5G LAN Port (LAN1, LAN2) LED Indications
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps/100Mbps
connection or no link
Blinking Data Activity Yellow 1Gbps connection
On Link Green 2.5Gbps connection
***ere are two LEDs on each LAN port. Please refer to the table below for the LAN port
LED indications.
10G LAN Port (LAN3, LAN4) LED Indications
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 100Mbps connection or no
link
Blinking Yellow Data Activity Yellow 5Gbps/2.5Gbps/1Gbps
connection
On Link Green 10Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
ACT/LINK LED
SPEED LED
ACT/LINK LED
SPEED LE
LAN Port
