10 11
English

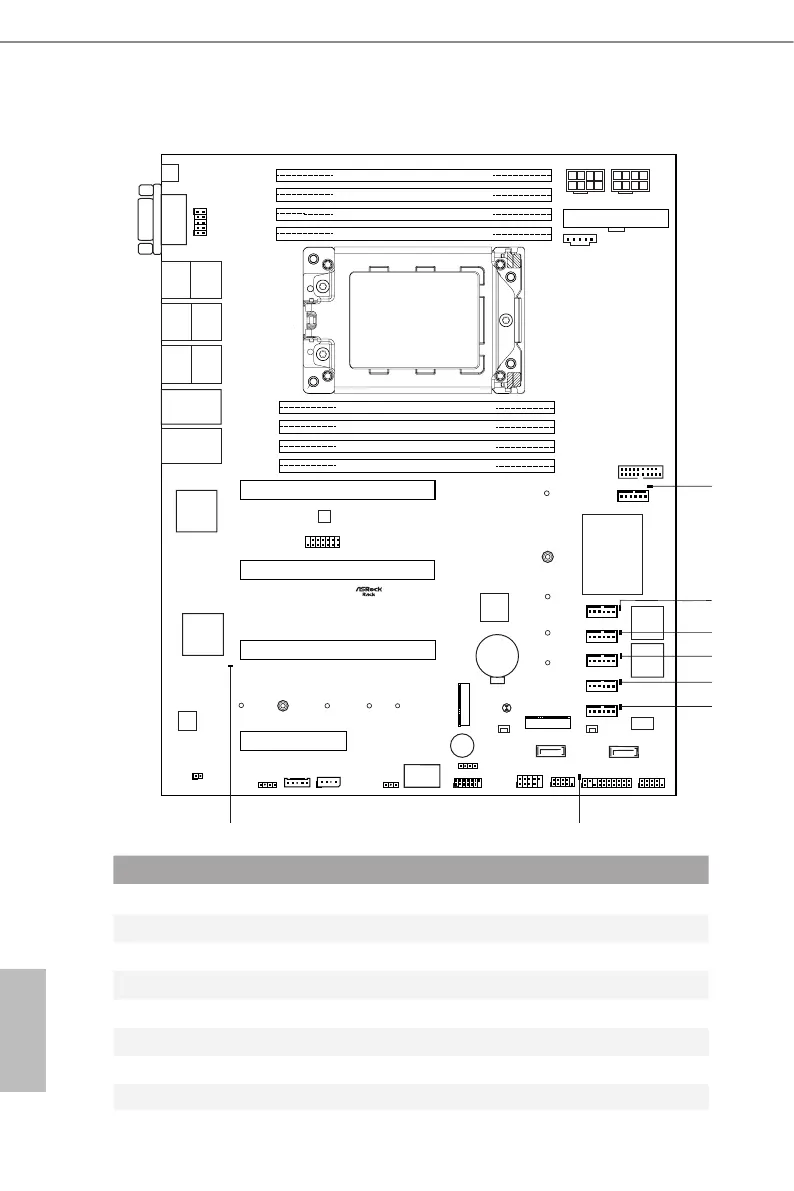

1.5 Onboard LED Indicators
ATXPWR1
DDR4_B1 (64 bit, 288-pin module), Blue
DDR4_B2 (64 bit, 288-pin module), White
DDR4_A1 (64 bit, 288-pin module), Blue
DDR4_A2 (64 bit, 288-pin module), White
DDR4_C2 (64 bit, 288-pin module), White
DDR4_C1 (64 bit, 288-pin module), Blue
DDR4_D2 (64 bit, 288-pin module). White
DDR4_D1 (64 bit, 288-pin module), Blue
TRX40D8-2N2T
NUT30
NUT42NUT60NUT80
M2_1
NUT110
CMOS
Battery
AST2500
Super
I/O
AMD
TRX40
FAN1
FAN2
FAN3
FAN4
FAN5
FAN6
(Red)
(Red)
NUT110_2
M2_2
NUT30_2NUT42_2NUT60_2
NUT80_2
RoHS
BIOS
ROM
SATAPWR1
2
3
4
6
7
8
1
5
No. Status Description
1 Amber FAN1 failed
2 Amber FAN2 failed
3 Amber FAN3 failed
4 Amber FAN4 failed
5 Amber FAN5 failed
6 Amber FAN6 failed
7 Green STB PWR ready
8 Green BMC heartbeat LED
