TRX40D8-2N2T
10 11
English

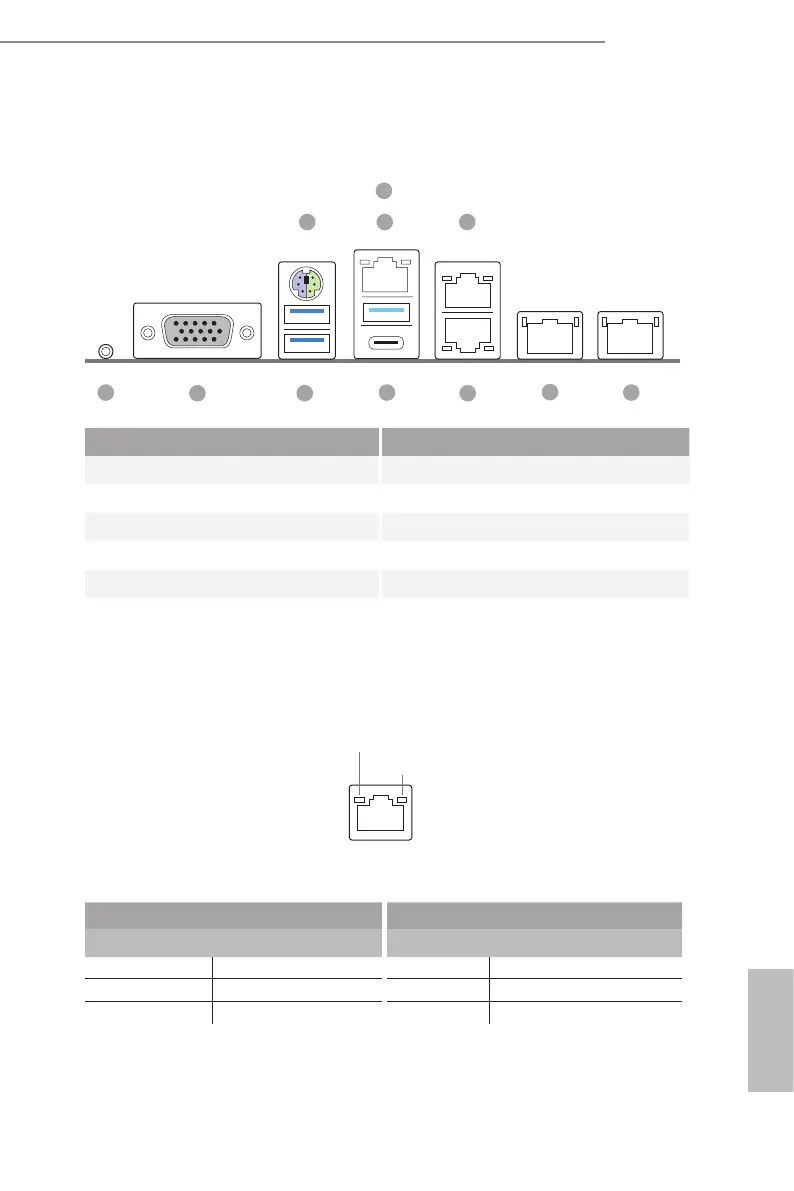

1.6 I/O Panel
No. Description No. Description
1 UID Switch (UID1) 7 LAN RJ-45 Port (IPMI_LAN)*
2 VGA Port (VGA1) 8 2.5G LAN RJ-45 Port (2.5G_LAN1)**
3 USB 3.2 Gen1 Ports (USB3_1_2) 9 2.5G LAN RJ-45 Port (2.5G_LAN2)**
4 PS/2 Mouse/Keyboard Port 10 10G LAN RJ-45 Port (LAN3)***
5 USB 3.2 Gen2 Port (USB31_TC_1) 11 10G LAN RJ-45 Port (LAN4)***
6 USB 3.2 Gen2 Port (USB31_TA_1)
LAN Port LED Indications
*ere are two LED next to the LAN port. Please refer to the table below for the LAN port
LED indications.
Dedicated IPMI LAN Port LED Indications
Activity / Link LED Speed LED
Status Description Status Description
O No Link O No link
Blinking Yellow Data Activity Yellow 10M/100M bps connection
On Link Green 1G bps connection
3
1
2
5
6
10
11
8
94
ACT/LINK LED
SPEED LED
LAN Port
To Next Page
