28 29
English

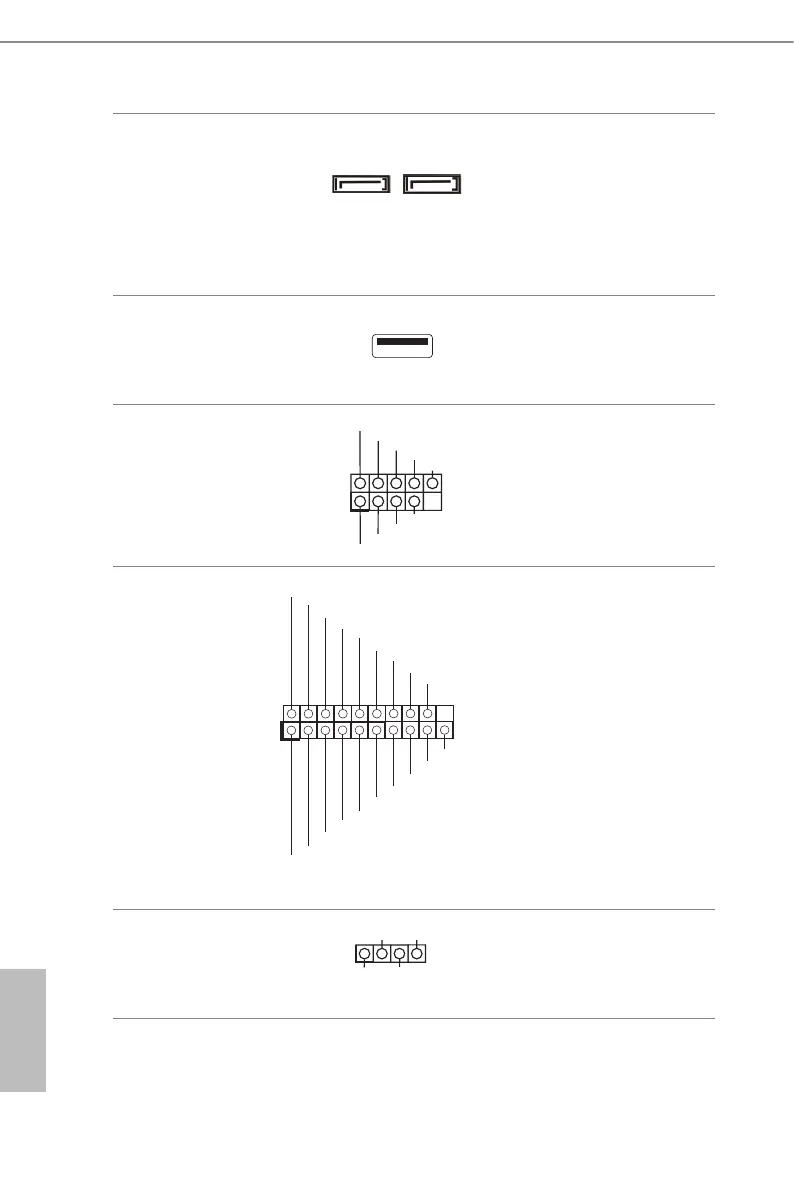

Serial ATA3 DOM
Connectors
(SATA2)
(see p.7, No. 25)
(SATA3)
(see p.7, No. 20)
e SATA3 DOM connectors
support both a SATA DOM
(Disk-On-Module) and a SATA
data cable for internal storage
device.
USB 3.2 Gen1 Connector
(USB3_5)
(see p.7, No. 18)
USB 2.0 Header
(9-pin USB_1_2)
(see p.7, No. 26)
DUMMY
GND
GND
P+
P-
P+
P-
USB_PWR
1
is is one header on
this motherboard. is
USB 2.0 header can
support two ports.
USB 3.2 Gen1 Header
(19-pin USB3_6_7)
(see p.7, No. 10)
Besides two default USB 3.2
Gen1 ports on the I/O panel,
there is one USB 3.2 Gen1
header on this motherboard.
Each USB 3.2 Gen1 header
can support two USB 3.2 Gen1
ports.
Chassis Speaker Header
(4-pin SPEAKER1)
(see p.7, No. 31)
1
+5V
DUMMY
DUMMY
SPEAKER
Please connect the chassis
speaker to this header.
1
Dummy
GND
GND
Vbus
GND
GND
IntA_PA_SSRX+
Vbus
IntA_PA_D-
IntA_PA_SSTX+
IntA_PA_SSTX-
IntA_PA_SSRX-
IntA_PB_SSRX-
IntA_PB_SSRX+
IntA_PB_SSTX-
IntA_PBA_SSTX+
IntA_PB_D-
IntA_PB_D+
SATA3
SATA2
