ASROCK 970DE3/U3S3 User Manual

20

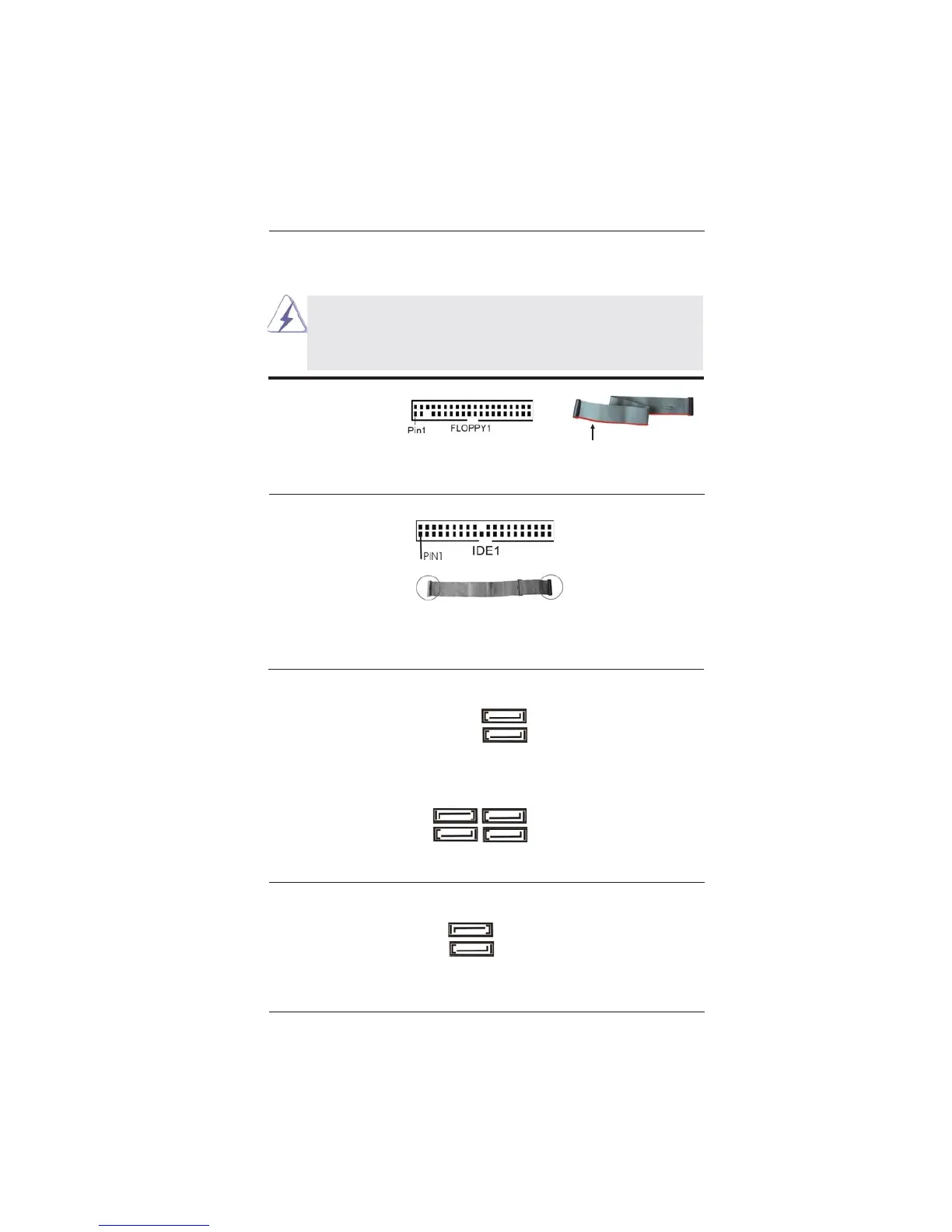

2.6 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
Serial ATA3 Connectors These two Serial ATA3
(SATA3_1 (PORT 6): see p.12, No. 11)
(SATA3) connectors support
(SATA3_2 (PORT 7): see p.12, No. 9)
SATA data cables for internal
storage devices. The current
SATA3 interface allows up to
6.0 Gb/s data transfer rate.
FDD connector
(33-pin FLOPPY1)
(see p.12 No. 27)
Note: Make sure the red-striped side of the cable is plugged into Pin1 side of the
connector.
the red-striped side to Pin1
Primary IDE connector (Black)
(39-pin IDE1, see p.12 No. 36)
Note: Please refer to the instruction of your IDE device vendor for the details.
connect the black end
to the IDE devices
connect the blue end
to the motherboard
80-conductor ATA 66/100/133 cable
Serial ATA2 Connectors These six Serial ATA2 (SATA2)
(SATAII_1 (PORT 0): see p.12, No. 20)
connectors support SATA data
(SATAII_2 (PORT 1): see p.12, No. 19)
cables for internal storage
(SATAII_3 (PORT 2): see p.12, No. 18)
devices. The current SATA2
(SATAII_4 (PORT 3): see p.12, No. 17)
interface allows up to 3.0 Gb/s
(SATAII_5 (PORT 4): see p.12, No. 16)
data transfer rate.
(SATAII_6 (PORT 5): see p.12, No. 15)
SATAII_1 SATAII_3
(PORT 0) (PORT 2)
SATAII_2 SATAII_4
(PORT 1) (PORT 3)
SATAII_5
(PORT 4)
SATAII_6
(PORT 5)
SATA3_1
(PORT 6)
SATA3_2
(PORT 7)

ASROCK 970DE3/U3S3 Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	800, 1066, 1333, 1600, 1866 MHz
Processor socket	Socket AM3+
Processor manufacturer	AMD
Compatible processor series	AMD Phenom II X2, AMD Phenom II X3, AMD Phenom II X4, AMD Phenom II X6
USB 2.0 connectors	3
Number of SATA II connectors	6
Number of SATA III connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	-
I/O ports	1 x IR 1 x ATA133 IDE 1 x HDMI_SPDIF 1 x Power LED 1 x 8 pin 12V power
Serial ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Certification	FCC, CE, WHQL ErP/EuP Ready
Component for	PC
Motherboard chipset	AMD 770
Audio output channels	5.1 channels
Motherboard form factor	ATX
Motherboard southbridge	AMD SB710
Compatible operating systems	Windows 7 / 7 64-bit / Vista / Vista 64-bit / XP / XP Media Center / XP 64-bit
Supported storage drive interfaces	SATA
Parallel processing technology support	Not supported
LAN controller	Realtek RTL8111E
Ethernet interface type	Gigabit Ethernet
BIOS type	AMI
ACPI version	1.1
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	191 mm
Width	305 mm
