ASROCK 970DE3/U3S3 User Manual

43
3.4.4 Storage Configuration
Onboard SATA Controller
This item is for SATA2 ports. Use this item to enable or disable the “Onboard
SATA Controller” feature.
SATA Operation Mode
This item is for SATA2 ports. Use this item to adjust Onboard SATA Opera-
tion Mode. The default value of this option is [AHCI]. Confi guration options:
[AHCI], [IDE] and [RAID].
If you set this item to RAID mode, it is suggested to install SATA ODD
driver on SATAII_5 (PORT 4) and SATAII_6 (PORT 5) ports.
SATA IDE Combined Mode
This item is for SATAII_5 (PORT 4) and SATAII_6 (PORT 5) ports. Use this
item to enable or disable SATA IDE combined mode. The default value is
[Enabled].
If you want to build RAID on SATAII_5 (PORT 4) and SATAII_6 (PORT 5
ports, please disable this item.
Onboard SATA3 Operation Mode
This item is for SATA3 ports. Use this item to adjust Onboard SATA3 Op-
eration Mode. The default value of this option is [AHCI]. Confi guration op-
tions: [IDE], [AHCI] and [Disabled].

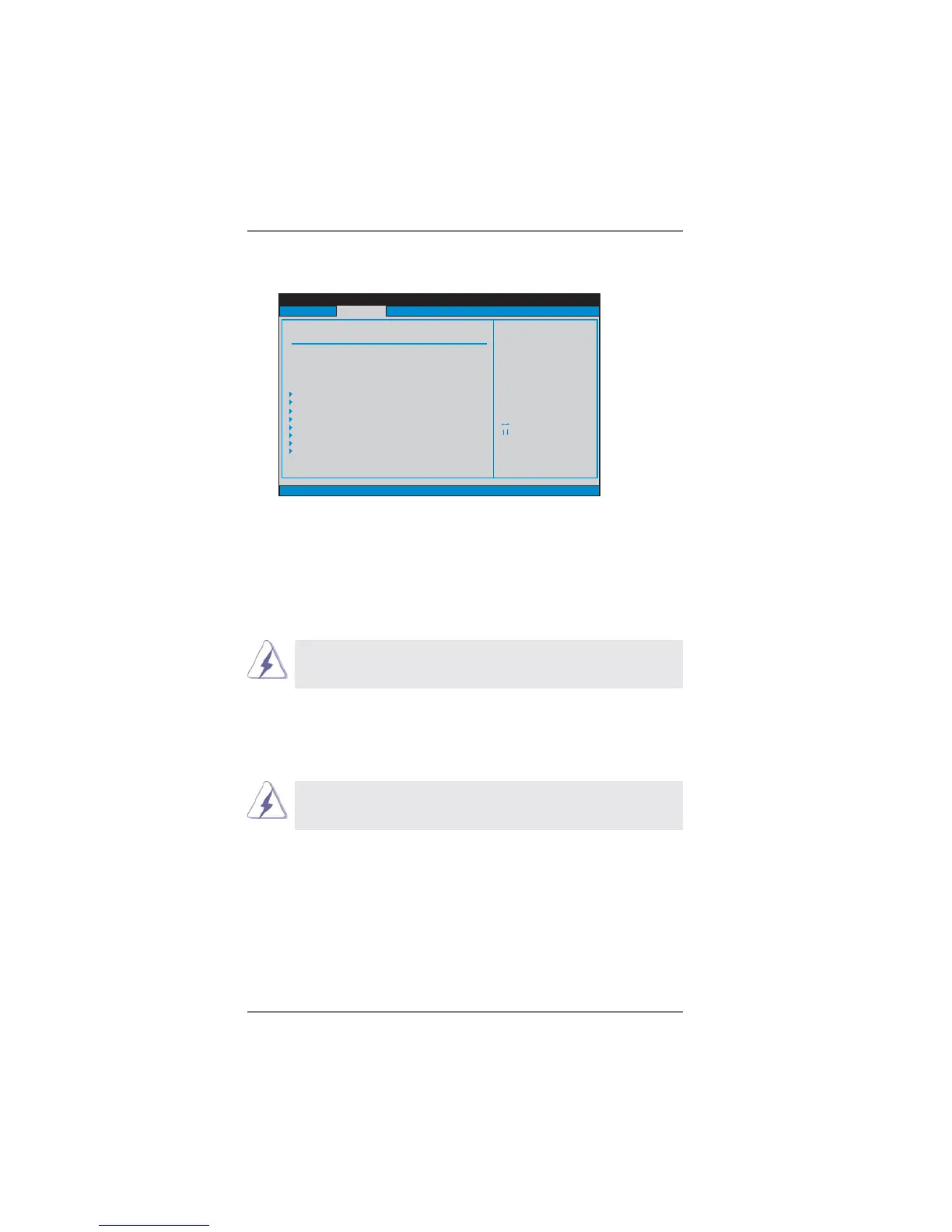

BIOS SETUP UTILITY
Storage Configuration
v02.54 (C) Copyright 1985-2003, American Megatrends, Inc.
Advanced
Onboard SATA Controller
SATA Operation Mode
SATA IDE Combined Mode
Onboard SATA3 Operation Mode
IDE1 Master
IDE1 Slave
SATAII_1
SATAII_2
SATAII_3
SATAII_4
SATAII_5
SATAII_6
[Enabled]
[AHCI]
[Enabled]
[AHCI]
[Hard Disk]
[Not Detected]
[Not Detected]
[Not Detected]
[Not Detected]
[Not Detected]
[Not Detected]
[Not Detected]
Select Screen
Select Item
+- Change Option
F1 General Help
F9 Load Defaults
F10 Save and Exit
ESC Exit
Select Screen
Select Item
+- Change Option
F1 General Help
F9 Load Defaults
F10 Save and Exit
ESC Exit
Configure onboard
serial ATA
controller.

ASROCK 970DE3/U3S3 Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	800, 1066, 1333, 1600, 1866 MHz
Processor socket	Socket AM3+
Processor manufacturer	AMD
Compatible processor series	AMD Phenom II X2, AMD Phenom II X3, AMD Phenom II X4, AMD Phenom II X6
USB 2.0 connectors	3
Number of SATA II connectors	6
Number of SATA III connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	-
I/O ports	1 x IR 1 x ATA133 IDE 1 x HDMI_SPDIF 1 x Power LED 1 x 8 pin 12V power
Serial ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Certification	FCC, CE, WHQL ErP/EuP Ready
Component for	PC
Motherboard chipset	AMD 770
Audio output channels	5.1 channels
Motherboard form factor	ATX
Motherboard southbridge	AMD SB710
Compatible operating systems	Windows 7 / 7 64-bit / Vista / Vista 64-bit / XP / XP Media Center / XP 64-bit
Supported storage drive interfaces	SATA
Parallel processing technology support	Not supported
LAN controller	Realtek RTL8111E
Ethernet interface type	Gigabit Ethernet
BIOS type	AMI
ACPI version	1.1
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	191 mm
Width	305 mm
