ASROCK 970DE3/U3S3 User Manual

26
Caution
1. Without SATA 15-pin power connector interface, the SATA / SATAII Hot Plug
cannot be processed.
2. Even some SATA / SATAII HDDs provide both SATA 15-pin power connector and
IDE 1x4-pin conventional power connector interfaces, the IDE 1x4-pin
conventional power connector interface is defi nitely not able to support Hot Plug
and will cause the HDD damage and data loss.
SATA 7-pin
connector
1x4-pin conventional
power connector (White)
connect to power supply

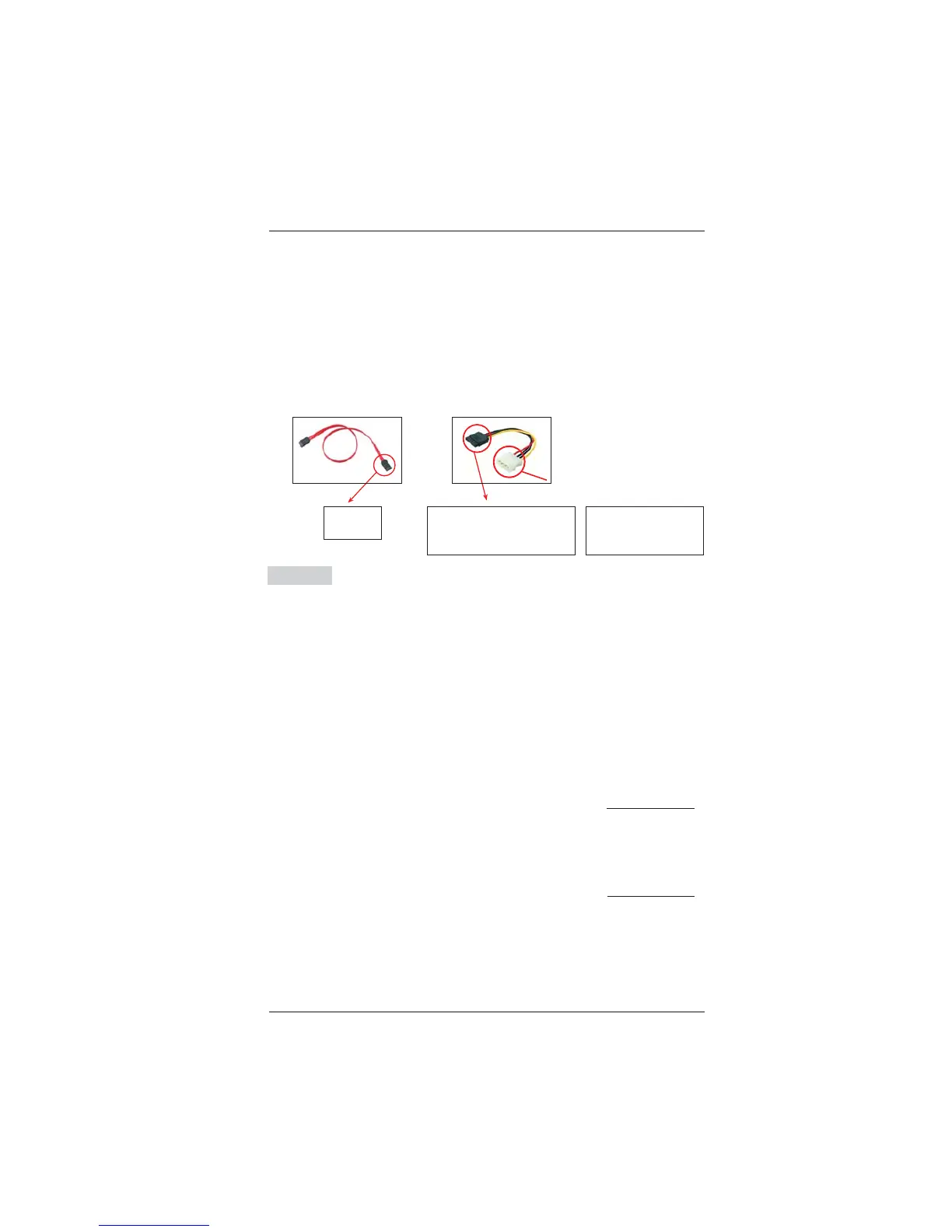

2.9 SATA / SATAII HDD Hot Plug Feature and Operation Guide
This motherboard supports Hot Plug feature for SATA / SATAII HDD in RAID / AHCI
mode. Please read below operation guide of Hot Plug feature carefully. Before you
process the SATA / SATAII HDD Hot Plug, please check below cable accessories
from the motherboard gift box pack.
A. 7-pin SATA data cable
B. SATA power cable with SATA 15-pin power connector interface
The SATA 15-pin power
connector (Black) connect
to SATA / SATAII HDD
Points of attention, before you process the Hot Plug:
1. Below operation procedure is designed only for our motherboard, which supports
SATA / SATAII HDD Hot Plug.
* The SATA / SATAII Hot Plug feature might not be supported by the chipset
because of its limitation, the SATA / SATAII Hot Plug support information of our
motherboard is indicated in the product spec on our website: www.asrock.com
2. Make sure your SATA / SATAII HDD can support Hot Plug function from your
dealer or HDD user manual. The SATA / SATAII HDD, which cannot support Hot
Plug function, will be damaged under the Hot Plug operation.
3. Please make sure the SATA / SATAII driver is installed into system properly. The
latest SATA / SATAII driver is available on our support website: www.asrock.com
4. Make sure to use the SATA power cable & data cable, which are from our
motherboard package.
5. Please follow below instructions step by step to reduce the risk of HDD crash
or data loss.
A. SATA data cable (Red) B. SATA power cable

ASROCK 970DE3/U3S3 Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	800, 1066, 1333, 1600, 1866 MHz
Processor socket	Socket AM3+
Processor manufacturer	AMD
Compatible processor series	AMD Phenom II X2, AMD Phenom II X3, AMD Phenom II X4, AMD Phenom II X6
USB 2.0 connectors	3
Number of SATA II connectors	6
Number of SATA III connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	-
I/O ports	1 x IR 1 x ATA133 IDE 1 x HDMI_SPDIF 1 x Power LED 1 x 8 pin 12V power
Serial ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Certification	FCC, CE, WHQL ErP/EuP Ready
Component for	PC
Motherboard chipset	AMD 770
Audio output channels	5.1 channels
Motherboard form factor	ATX
Motherboard southbridge	AMD SB710
Compatible operating systems	Windows 7 / 7 64-bit / Vista / Vista 64-bit / XP / XP Media Center / XP 64-bit
Supported storage drive interfaces	SATA
Parallel processing technology support	Not supported
LAN controller	Realtek RTL8111E
Ethernet interface type	Gigabit Ethernet
BIOS type	AMI
ACPI version	1.1
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	191 mm
Width	305 mm
