AMD X670/B650/A620 Series

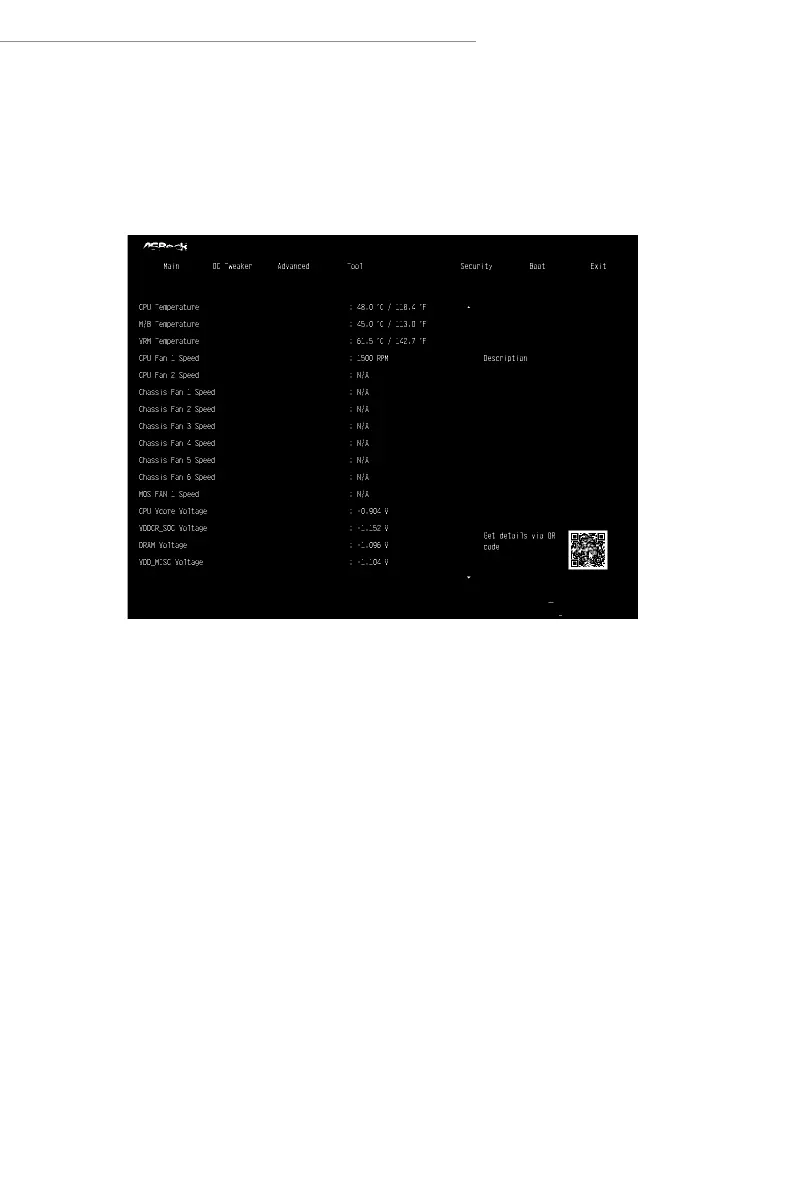

3.6 Hardware Health Event Monitoring Screen
is section allows you to monitor the status of the hardware on your system,
including the parameters of the CPU temperature, motherboard temperature, fan
speed and voltage.
NOTE: Options vary depending on the features of your motherboard.
CPU_FAN1 Setting
Allows you to select a fan mode for CPU Fan 1, or choose [Customize] to set 5 CPU
temperatures and assign a respective fan speed for each temperature.
Conguration options:
[Customize] [Silent Mode] [Standard Mode] [Performance Mode] [Full Speed]
CPU_FAN2/WP Switch
Allows you to select CPU Water Pump mode.
CPU Fan 2 Control Mode
Allows you to select PWM mode or DC mode for CPU Fan 2.
[Auto] Select this mode to detect the type of installed fan and automatically switch the
control modes.
[DC Mode] Select this mode for 3-pin fan.
[PWM Mode] Select this mode for 4-pin fan.
