2.5 ASRock Polychrome SYNC
ASRock Polychrome SYNC is a lighting control utility specically designed for unique
individuals with sophisticated tastes to build their own stylish colorful lighting system.
Simply by connecting the LED strip, you can customize various lighting schemes and
patterns, including Static, Breathing, Strobe, Cycling, Music, Wave and more.
2.5.1 Connecting the LED Strip

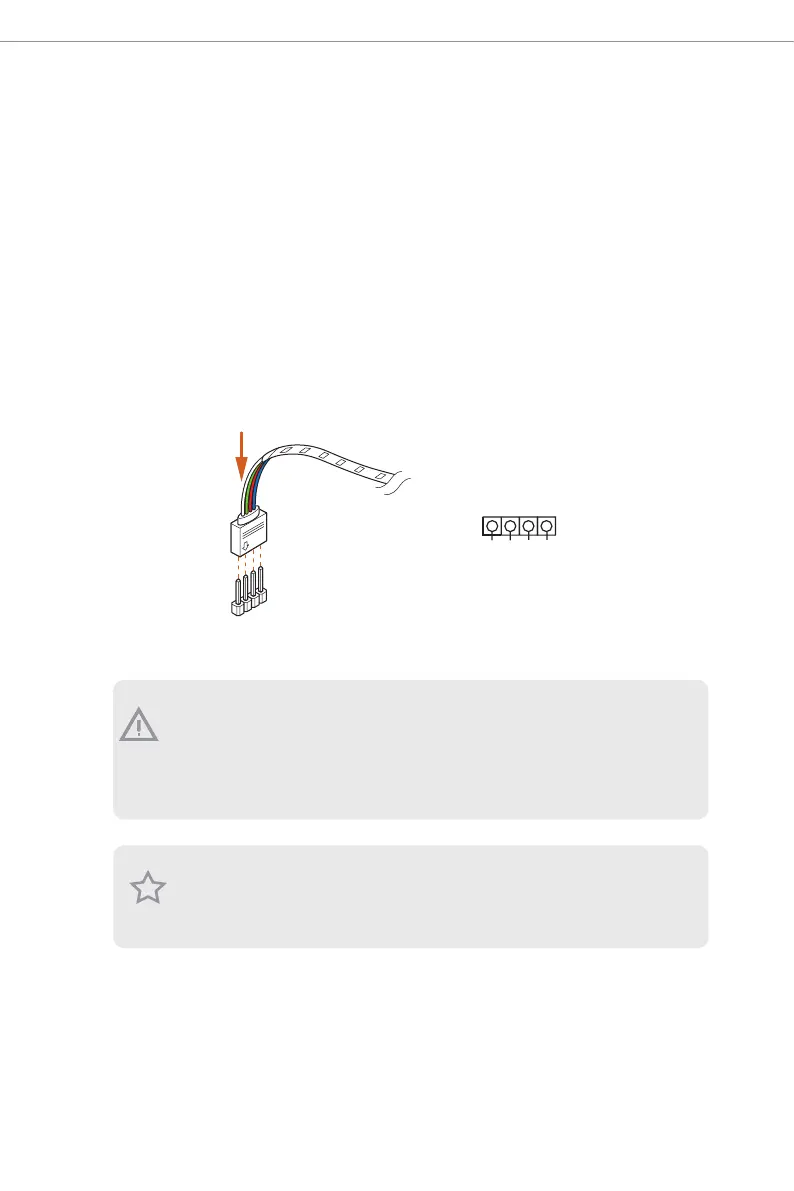

Connect your RGB LED strip to the
RGB LED Header
on the motherboard.
1. Never install the RGB LED cable in the wrong orientation; otherwise, the cable may be
damaged.
2. Before installing or removing your RGB LED cable, please power o your system and
unplug the power cord from the power supply. Failure to do so may cause damages to
motherboard components.
1. Please note that the RGB LED strips do not come with the package.
2. e RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a
maximum power rating of 3A (12V) and length within 2 meters.
1
2
V
G
R
B
1
12V GRB
1
RGB LED Header
