ASROCK B75M-DGS R2.0 Manual

2
ASRock B75M-DGS R2.0 Motherboard
English

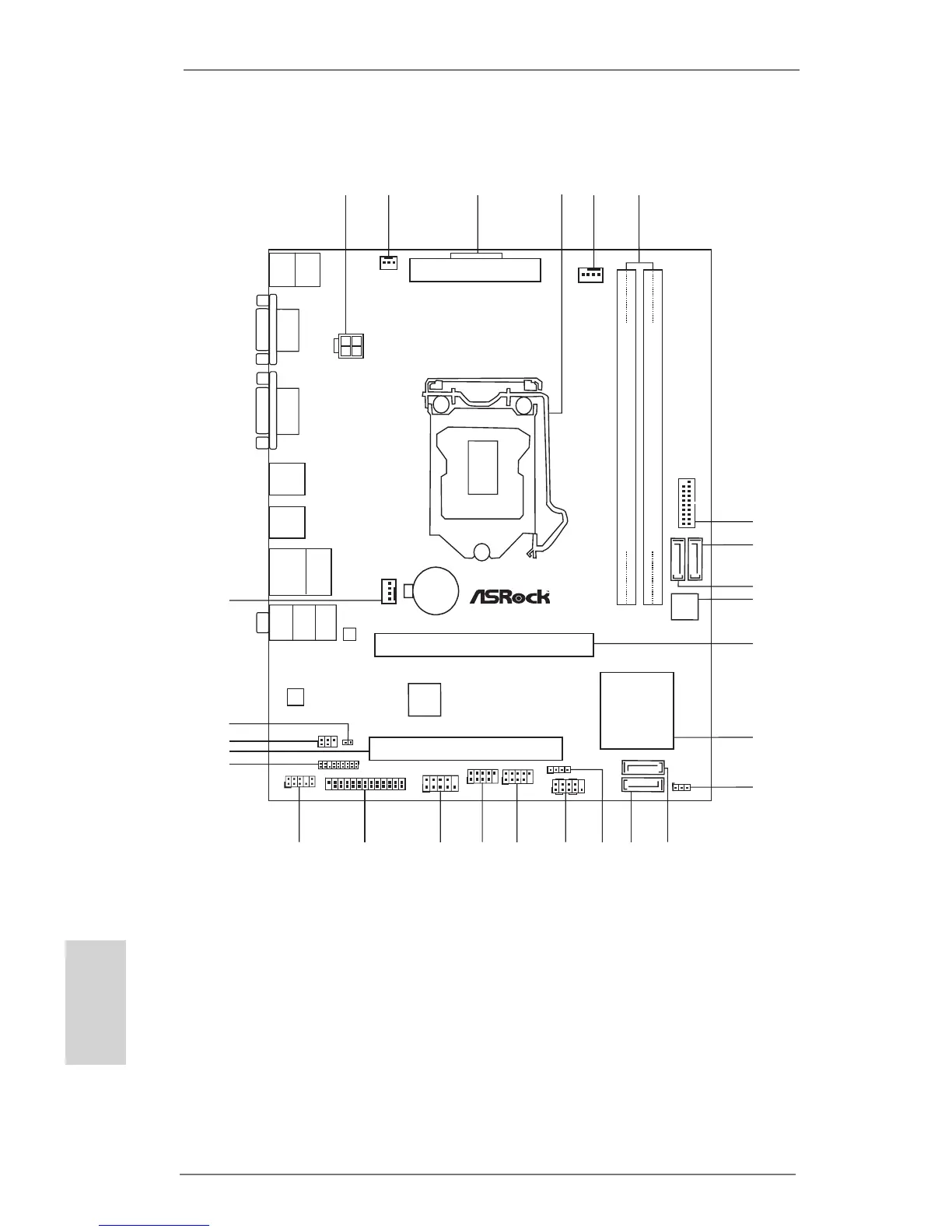

Motherboard Layout
Intel
B75
64Mb
BIOS
DDR3_A1 (64 bit, 240-pin module)
CMOS
Battery
Super
I/O
ATXPWR1
DDR3_B1 (64 bit, 240-pin module)
PCIE1
PCI1
ATX1 2V 1
PS2
Keyboard
PS2
Mouse
VGA1
AUDIO
CODEC
LAN
PHY
Top:
RJ-45
USB 2.0
T: USB2
B: USB3
Top:
Line In
Center:
Front
Bottom:
Mic In
USB 3.0
T: USB0
B: USB1
USB 2.0
T: USB0
B: USB1
HD_AU DIO 1
1
COM1
1
IR1
1
USB4_ 5
1
USB6_ 7
1
HDL ED RE SET
PLE D PW RBTN
PANE L1
1
SATA2 _2
1
SPEAK ER 1
SATA2 _3
SATA2 _1
SATA3 _0
PWR_FA N1
CPU_FA N1
CHA_FA N1
CLRCM OS 1
1
B75M-DGS
PCI Express 3.0
X
Fast LAN
RoHS
LPT1
1
2 3
4
5
6
7
8
11
9
12
10
14
13
15
16
18
19
17
20
21
22
23
24
27
USB 3_2_3
X
Fast USB
X
Fast RAM
1
CI1
25
DVI1
1
Front USB 3.0
TPM S1
1
26
1 ATX 12V Power Connector (ATX12V1)
2 Power Fan Connector (PWR_FAN1)
3 ATX Power Connector (ATXPWR1)
4 1155-Pin CPU Socket
5 CPU Fan Connector (CPU_FAN1)
6 2 x 240-pin DDR3 DIMM Slots
(DDR3_A1, DDR3_B1)
7 USB 3.0 Header (USB3_2_3)
8 SATA2 Connector (SATA2_1)
9 SATA3 Connector (SATA3_0)
10 SPI Flash Memory (64Mb)
11 PCI Express 3.0 x16 Slot (PCIE1)
12 Intel B75 Chipset
13 Clear CMOS Jumper (CLRCMOS1)
14 SATA2 Connector (SATA2_2)
15 SATA2 Connector (SATA2_3)
16 Chassis Speaker Header (SPEAKER1)
17 System Panel Header (PANEL1)
18 USB 2.0 Header (USB6_7)
19 USB 2.0 Header (USB4_5)
20 COM Port Header (COM1)
21 Print Port Header (LPT1)
22 Front Panel Audio Header (HD_AUDIO1)
23 TPM Header (TPMS1)
24 PCI Slot (PCI1)
25 Infrared Module Header (IR1)
26 Chassis Intrusion Header (CI1)
27 Chassis Fan Connector (CHA_FAN1)

ASROCK B75M-DGS R2.0 Specifications

General

Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1066, 1333, 1600 MHz
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Power fan connector	Yes
Number of SATA III connectors	4
Number of Parallel ATA connectors	0
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC662
Cooling type	Passive
Certification	FCC, CE, WHQL, ErP/EuP
Component for	PC
Power source type	ATX
Motherboard chipset	Intel B75
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Supported storage drive interfaces	SATA III
Parallel processing technology support	-
Cables included	SATA
LAN controller	Realtek RTL8111E
Ethernet interface type	Gigabit Ethernet
BIOS type	UEFI AMI
ACPI version	1.1
BIOS memory size	64 Mbit

Weight and Dimensions

Width	- mm
