ASROCK B75M Quick Installation Guide

2
ASRock B75M Motherboard
English

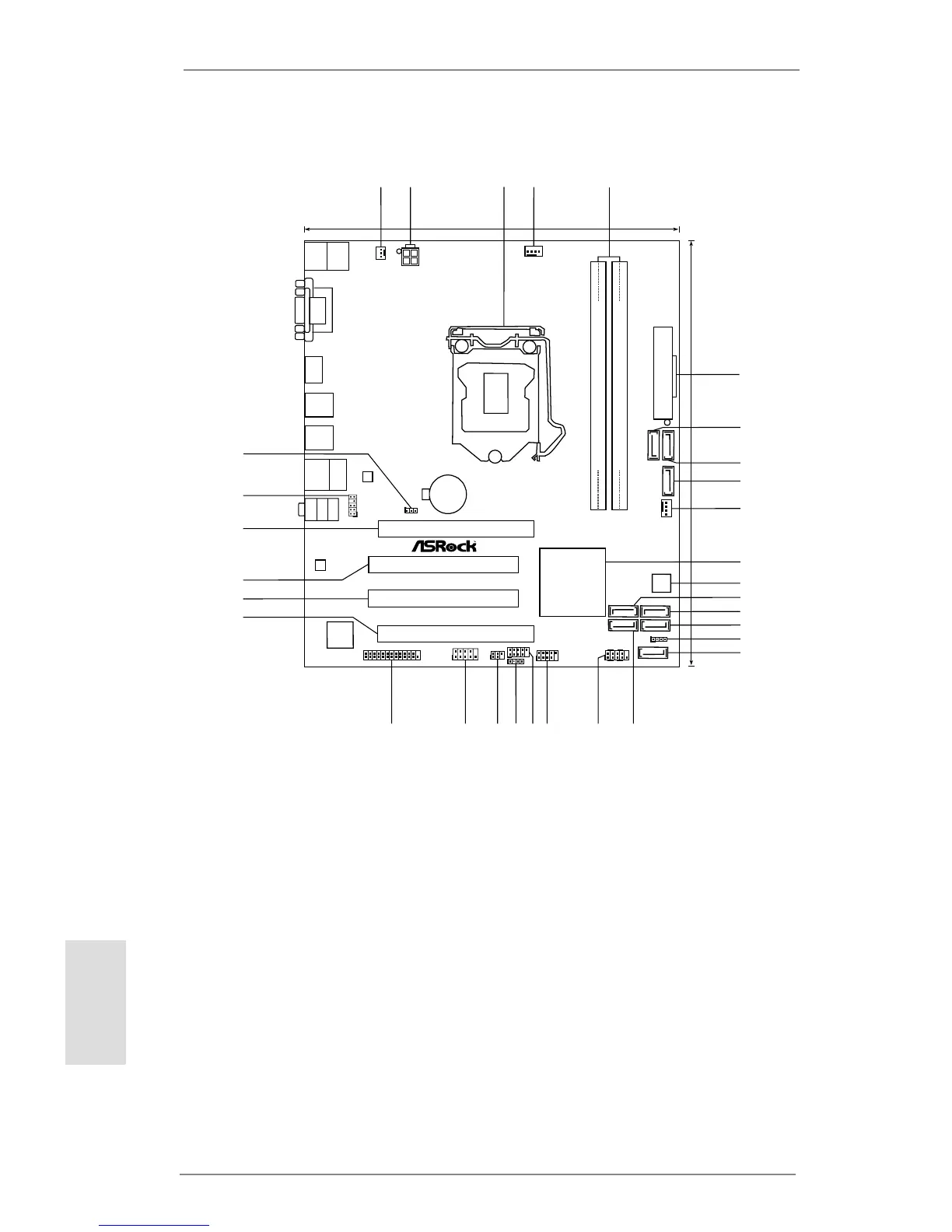

Motherboard Layout
1 Power Fan Connector (PWR_FAN1)
2 ATX 12V Power Connector (ATX12V1)
3 1155-Pin CPU Socket
4 CPU Fan Connector (CPU_FAN1)
5 2 x 240-pin DDR3 DIMM Slots
(DDR3_A1, DDR3_B1, Black)
6 ATX Power Connector (ATXPWR1)
7 SATA3 Connector (SATA3_A0, Gray)
8 SATA3 Connector (SATA3_A1, Gray)
9 SATA3 Connector (SATA3_0, Gray)
10 Chassis Fan Connector (CHA_FAN1)
11 Intel B75 Chipset
12 SPI Flash Memory (64Mb)
13 SATA2 Connector (SATA2_1, Black)
14 SATA2 Connector (SATA2_3, Black)
15 SATA2 Connector (SATA2_4, Black)
16 Chassis Speaker Header (SPEAKER1, Black)
17 SATA2 Connector (SATA2_5, Black)
18 SATA2 Connector (SATA2_2, Black)
19 System Panel Header (PANEL1, Black)
20 USB 2.0 Header (USB6_7, Black)
21 USB 2.0 Header (USB8_9, Black)
22 Consumer Infrared Module Header
(CIR1, Gray)
23 Infrared Module Header (IR1)
24 COM Port Header (COM1)
25 Print Port Header (LPT1)
26 PCI Express 2.0 x16 Slot (PCIE2, Black)
27 PCI Slot (PCI2, Black)
28 PCI Slot (PCI1, Black)
29 PCI Express 3.0 x16 Slot (PCIE1, Black)
30 Front Panel Audio Header
(HD_AUDIO1, Black)
31 Clear CMOS Jumper (CLRCMOS1)
Intel
B75
64Mb
BIOS
DDR3_A1 (64 bit, 240-pin module)
CMOS
Battery
Super
I/O
ATXPWR1
PCI1
DDR3_B1 (64 bit, 240-pin module)
PCIE1
PCIE2
PCI2
ATX 12V1
PS2
Keybo ard
PS2
Mouse
VGA1
DVI1
HDMI1
AUDIO
CODEC
LAN
PHY
Top:
RJ-45
USB 2.0
T: USB4
B: USB5
Top:
Line In
Cente r:
Front
Botto m:
Mic In
USB 3.0
T: USB2
B: USB3
USB 3.0
T: USB0
B: USB1
HD_AUDIO1
1
COM1
1
IR1
1
USB8_9
1
CIR1
1
USB6_7
1
HDLED RESET
PLED PWRBTN
PANEL1
1
SATA2_1
1
SPEAKER1
SATA2_2
SATA2_3
SATA2_4
SATA2_5
SATA3_ 0
SATA3_ A0
SATA3_ A1
PWR_FAN1
CPU_FAN1
CHA_FAN1
CLRCMOS1
1
B75M
PCI Express 3.0
XFast USB
XFast LAN
XFast RAM
USB 3.0
Designed in Taipei
RoHS
ErP/EuP Ready
DDR3
LPT1
24.4cm (9.6 in)
8.4cm (21.3 in)
1
2
3
4
5
6
7
8
11
9
12
10
14
13
15
16
18
19
17
20
21
22
23
24
25
26
27
28
29
30
31

ASROCK B75M Specifications

General

ECC	No
Non-ECC	Yes
Memory voltage	1.5 V
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1066, 1333, 1600 MHz
Supported memory module capacities	1GB, 2GB, 4GB, 8GB
System bus rate	5 GT/s
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7
Maximum number of SMP processors	1
Number of SATA II connectors	5
Number of SATA III connectors	3
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
HDMI version	1.4a
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Audio chip	Realtek ALC662
Cooling type	Passive
Certification	FCC, CE, WHQL, ErP/EuP Ready
Component for	PC
Power source type	ATX
Motherboard chipset	Intel B75
PC health monitoring	CPU, FAN, Temperature
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Compatible operating systems	Windows 7, Vista, XP 32/64-bit
Supported storage drive interfaces	SATA II, SATA III
Cables included	SATA
Graphics card	GMA X4500
OpenGL version	3.2
DirectX version	11
Maximum resolution	2048 x 1536 pixels
Maximum graphics card memory	1760 MB
Parallel processing technology support	2-Way CrossFireX, Quad-GPU CrossFireX
PCI Express slots version	2.0, 3.0
PCI Express configurations	1x4, 1x16
Controller 2nd interface type	ASMedia ASM1061
LAN controller	Realtek RTL8111E
Wi-Fi standards	Not supported
Networking features	Gigabit LAN
Ethernet interface type	Gigabit Ethernet
BIOS type	EFI AMI
ACPI version	1.1
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	213 mm
Width	244 mm
