27
ASRock B75M Motherboard

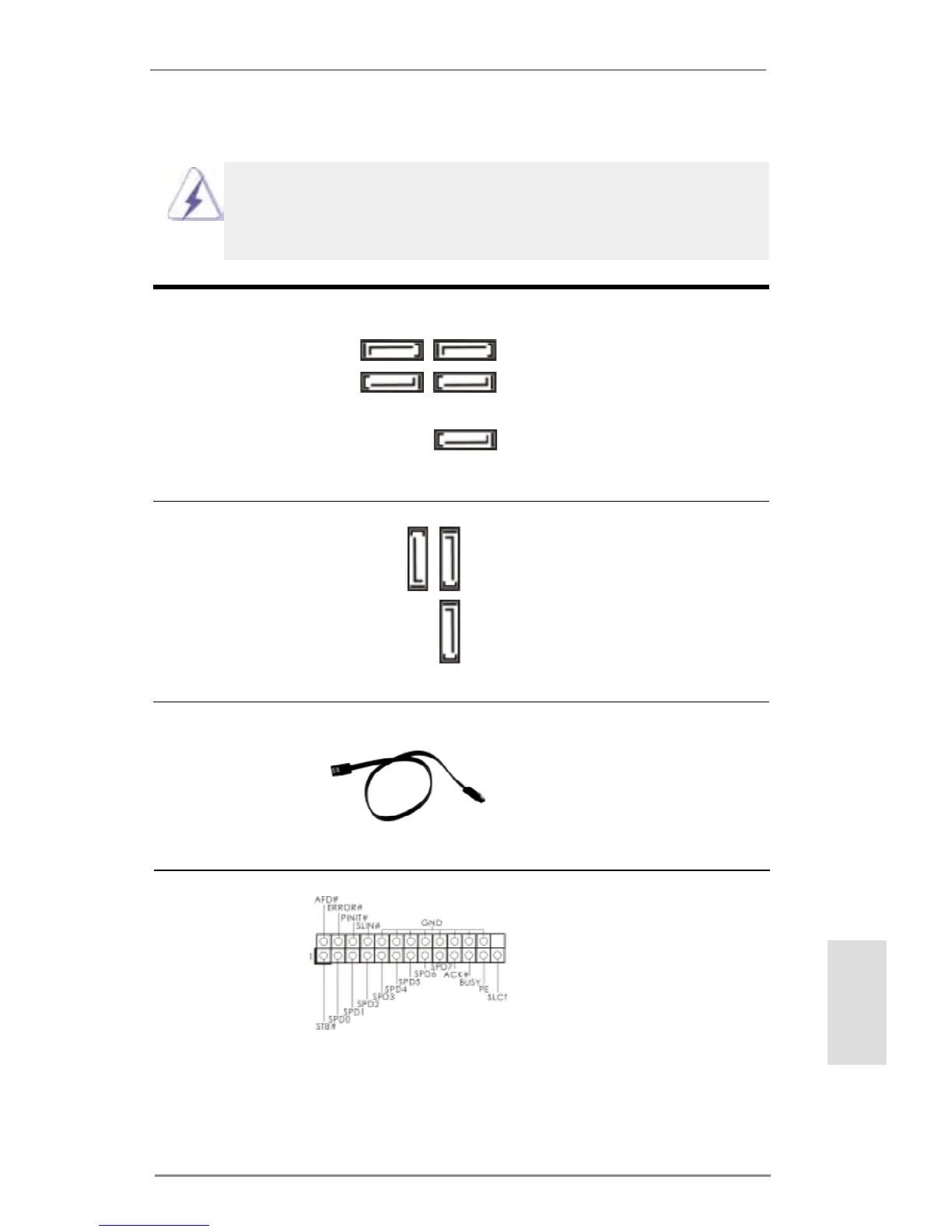

2.11 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
Serial ATA2 Connectors These ve Serial ATA2 (SATA2)
(SATA2_1: see p.2, No. 13)
connectors support SATA data
(SATA2_2: see p.2, No. 18)
cables for internal storage
(SATA2_3: see p.2, No. 14)
devices. The current SATA2
(SATA2_4: see p.2, No. 15)
interface allows up to 3.0 Gb/s
(SATA2_5: see p.2, No. 17)
data transfer rate.
Serial ATA3 Connectors These three Serial ATA3
(SATA3_A0: see p.2, No. 7)
(SATA3) connectors support
(SATA3_A1: see p.2, No. 8)
SATA data cables for internal
(SATA3_0: see p.2, No. 9)
storage devices. The current
SATA3 interface allows up to 6.0
Gb/s data transfer rate.
Serial ATA (SATA) Either end of the SATA data
Data Cable cable can be connected to the
(Optional)
SATA / SATA2 / SATA3 hard
disk or the SATA2 / SATA3
connector on this motherboard.
SATA2_1 SATA2_3
SATA2_2 SATA2_4
SATA3_A0
SATA3_0 SATA3_A1
SATA2_5
Print Port Header This is an interface for print port
(25-pin LPT1)
cable that allows convenient
(see p.2, No. 25)
connection of printer devices.
English
To Next Page
