ASROCK Fatal1ty B360M Performance User Manual

23
English
Fatal1ty B360M Performance Series

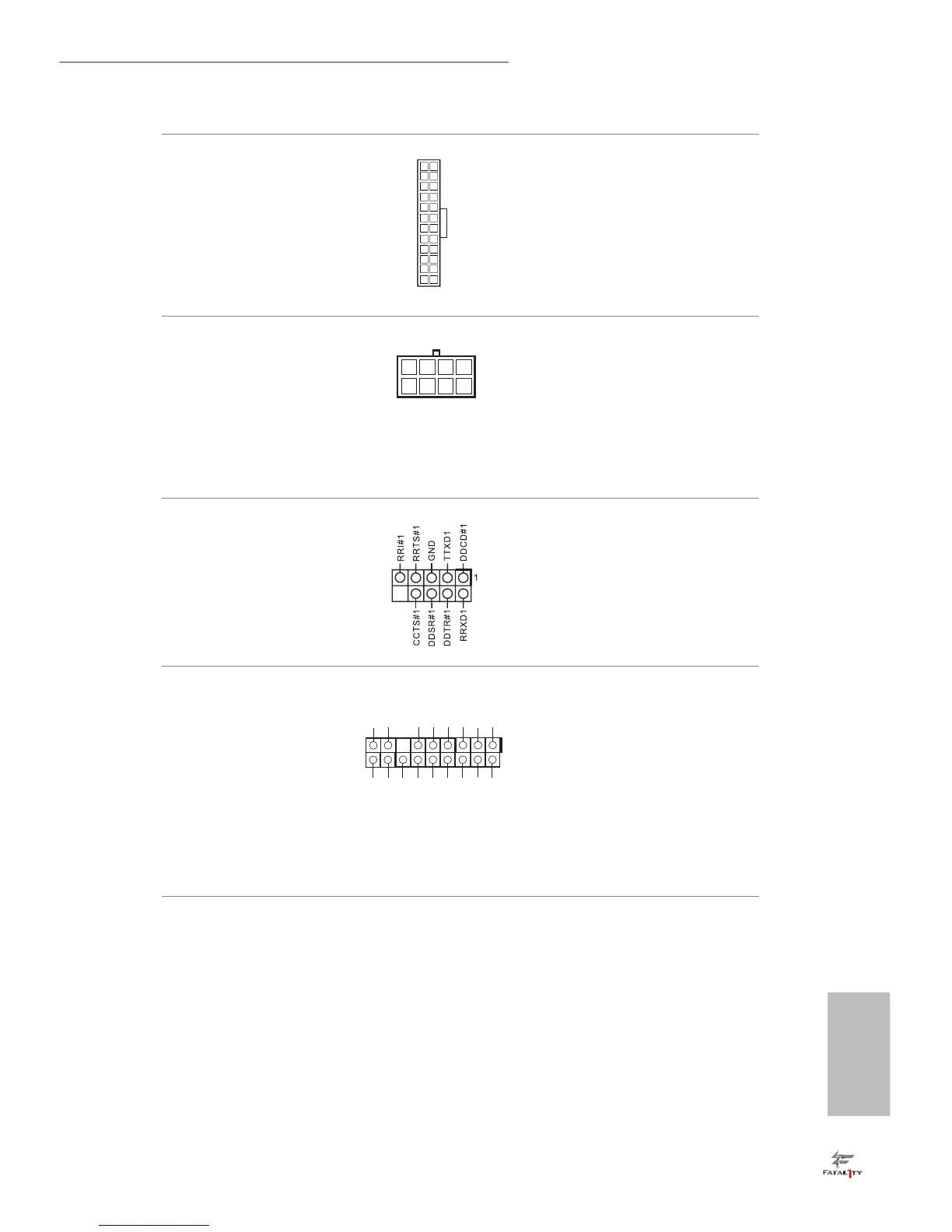

ATX Power Connector
(24-pin ATXPWR1)
(see p.7, No. 8)
is motherboard pro-
vides a 24-pin ATX power
connector. To use a 20-pin
ATX power supply, please
plug it along Pin 1 and Pin
13.
ATX 12V Power
Connector
(8-pin ATX12V1)
(see p.7, No. 1)
is motherboard pro-
vides a 8-pin ATX 12V
power connector. To use a
4-pin ATX power supply,
please plug it along Pin 1
and Pin 5.
Serial Port Header
(9-pin COM1)
(see p.7, No. 24)
is COM1 header
supports a serial port
module.
TPM Header
(17-pin TPMS1)
(see p.7, No. 22)
is connector supports Trusted
Platform Module (TPM) system,
which can securely store keys,
digital certicates, passwords,
and data. A TPM system also
helps enhance network security,
protects digital identities, and
ensures platform integrity.
1
GN D
SMB_DATA_MAIN
LAD2
LAD1
GN D
S_PWRDWN #
SERIRQ #
GN
D
P CICL K
P CIRST #
LAD3
+3 V
LAD0
+3VS B
GN D
FRAM E
SMB_CLK_MAIN
12
1
24
13
5
1
8
4

ASROCK Fatal1ty B360M Performance Specifications

General

Form Factor	Micro ATX
Chipset	Intel B360
CPU Socket	LGA 1151
Maximum Memory	64 GB
Audio	Realtek ALC892 Audio Codec
Memory Slots	4 x DIMM
Memory Speed	DDR4 2666/2400/2133 MHz
Storage Interface	6 x SATA3
USB Ports	6 x USB 3.1 Gen1, 6 x USB 2.0
LAN	Intel Gigabit LAN
Video Outputs	HDMI, DisplayPort
Expansion Slots	1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
