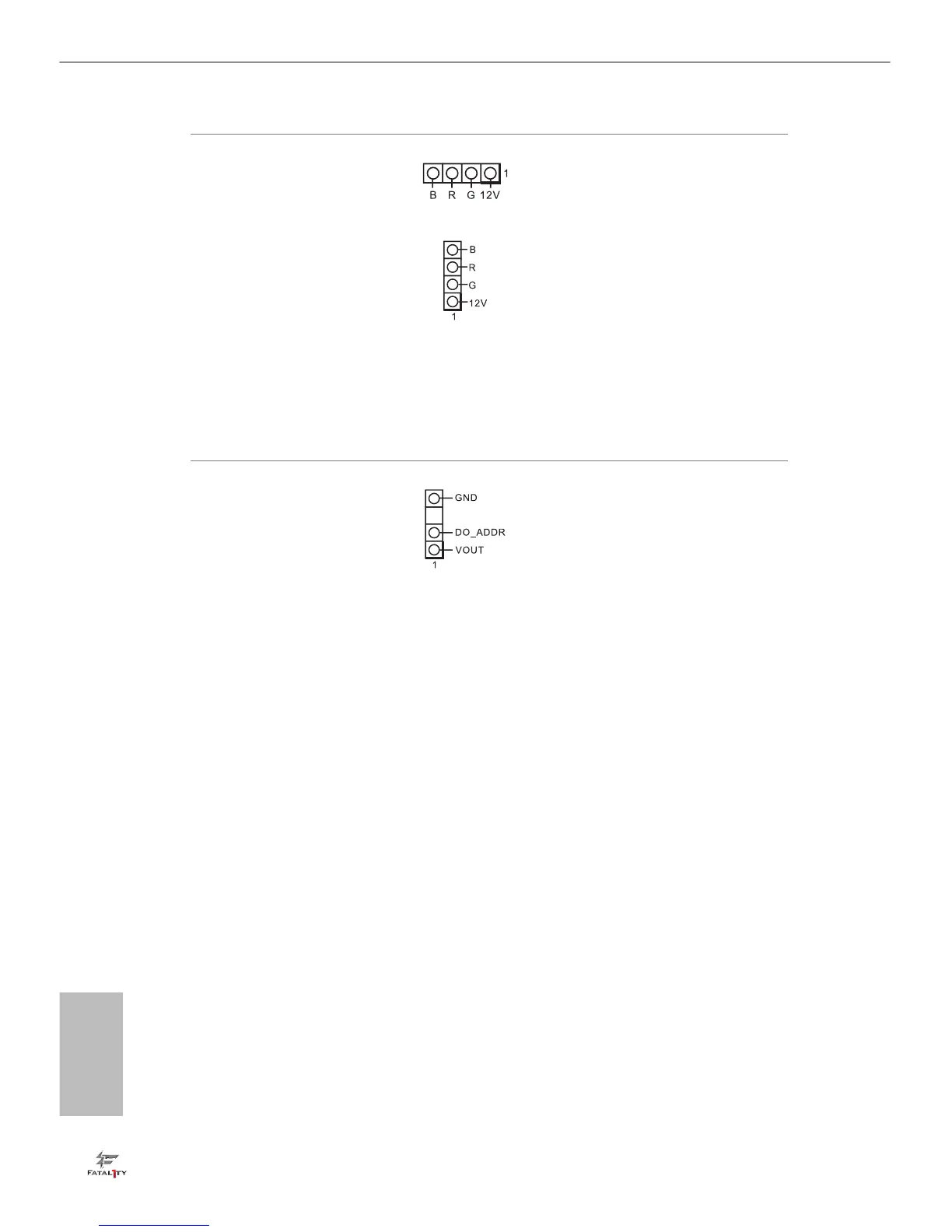

RGB LED Headers
(4-pin RGB_LED1)
(see p.7, No. 23)
(4-pin RGB_LED2)
(see p.7, No. 6)
ese two RGB headers are used
to connect RGB LED exten-
sion cable which allows users to
choose from various LED light-
ing eects.
Caution: Never install the RGB
LED cable in the wrong orienta-
tion; otherwise, the cable may
be damaged.
*Please refer to page 45 for
further instructions on these two
headers.
Addressable LED Header
(3-pin A_RGB_LED1)
(see p.7, No. 7)
is header is used to connect
Addressable LED extension cable
which allows users to choose
from various LED lighting
eects.
Caution: Never install the
Addressable LED cable in the
wrong orientation; otherwise,
the cable may be damaged.
*Please refer to page 46 for
further instructions on these two
headers.
