ASROCK Fatal1ty X99 Professional Series User Manual

English
24
25
Fatal1ty X99 Professional Series

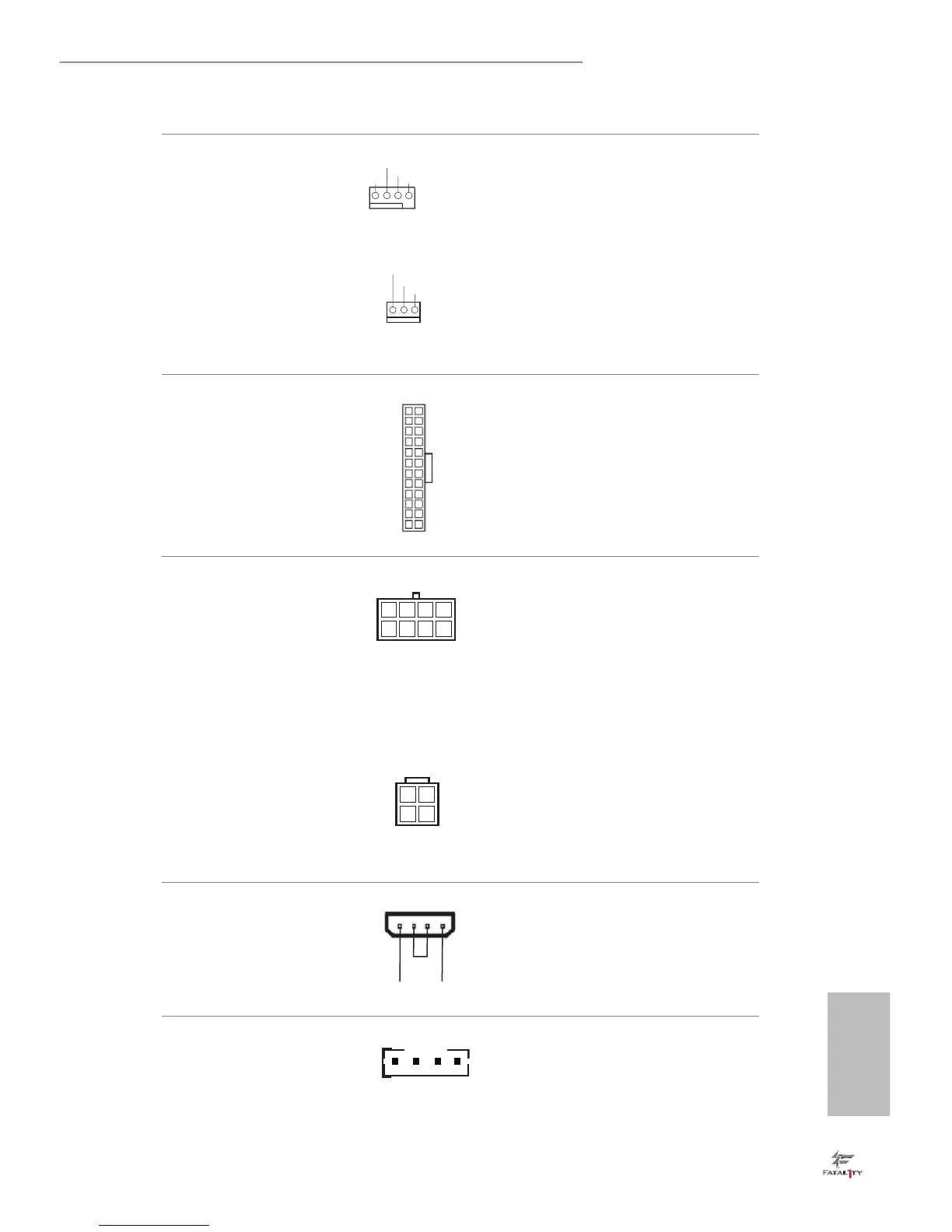

CPU Fan Connectors
(4-pin CPU_FAN1)
(see p.7, No. 5)
(3-pin CPU_FAN2)
(see p.7, No. 8)
is motherboard
provides a 4-Pin CPU fan
(Quiet Fan) connector.
If you plan to connect a
3-Pin CPU fan, please
connect it to Pin 1-3.
ATX Power Connector
(24-pin ATXPWR1)
(see p.7, No. 17)
is motherboard pro-
vides a 24-pin ATX power
connector. To use a 20-pin
ATX power supply, please
plug it along Pin 1 and Pin
13.
ATX 12V Power
Connectors
(8-pin ATX12V1)
(see p.7, No. 3)
(4-pin ATX12V2)
(see p.7, No. 4)
is motherboard
provides an 8-pin ATX
12V power connector and
a 4-pin ATX 12V power
connector. To use a 4-pin
ATX power supply, please
plug it along Pin 1 and Pin
5.
*e 4-pin ATX 12V
power connector is used
to supply additional power
to the motherboard.
PCIe Power Connector
(4-pin PCIE _PWR1)
(see p.7, No. 42)
Please connect a 4 pin molex
power cable to this connector
when more than three graphics
cards are installed.
HDD Saver Connector
(4-pin SATA_PWR _1)
(see p.7, No. 27)
Please connect the HDD Saver
Cable to this connector to
manage the power state of HDD.
GN
D
CPU_FA
N_SPEED
FAN_VOLTAGE
GND
+12V
CPU_FAN_SPEED
FA N_SPEED_CONTROL
12
1
24
13
5
1
8
4
1
+12V DETECT
GND

ASROCK Fatal1ty X99 Professional Series Specifications

General

Chipset	Intel X99
CPU Socket	LGA 2011-v3
Memory Slots	8 x DIMM
Maximum Memory	128GB
Memory Type	DDR4
SATA 6Gb/s Ports	10
M.2 Slots	1
Form Factor	ATX
RAID Support	RAID 0, 1, 5, 10
PCI Express x1 Slots	1 x PCIe 2.0 x1
Storage Interface	SATA 6Gb/s
LAN	Dual Gigabit LAN
Audio	Realtek ALC1150
Multi-GPU Support	AMD 3-Way CrossFireX
USB Ports	10 (6 rear, 4 via headers)
Ethernet	Dual Gigabit LAN
