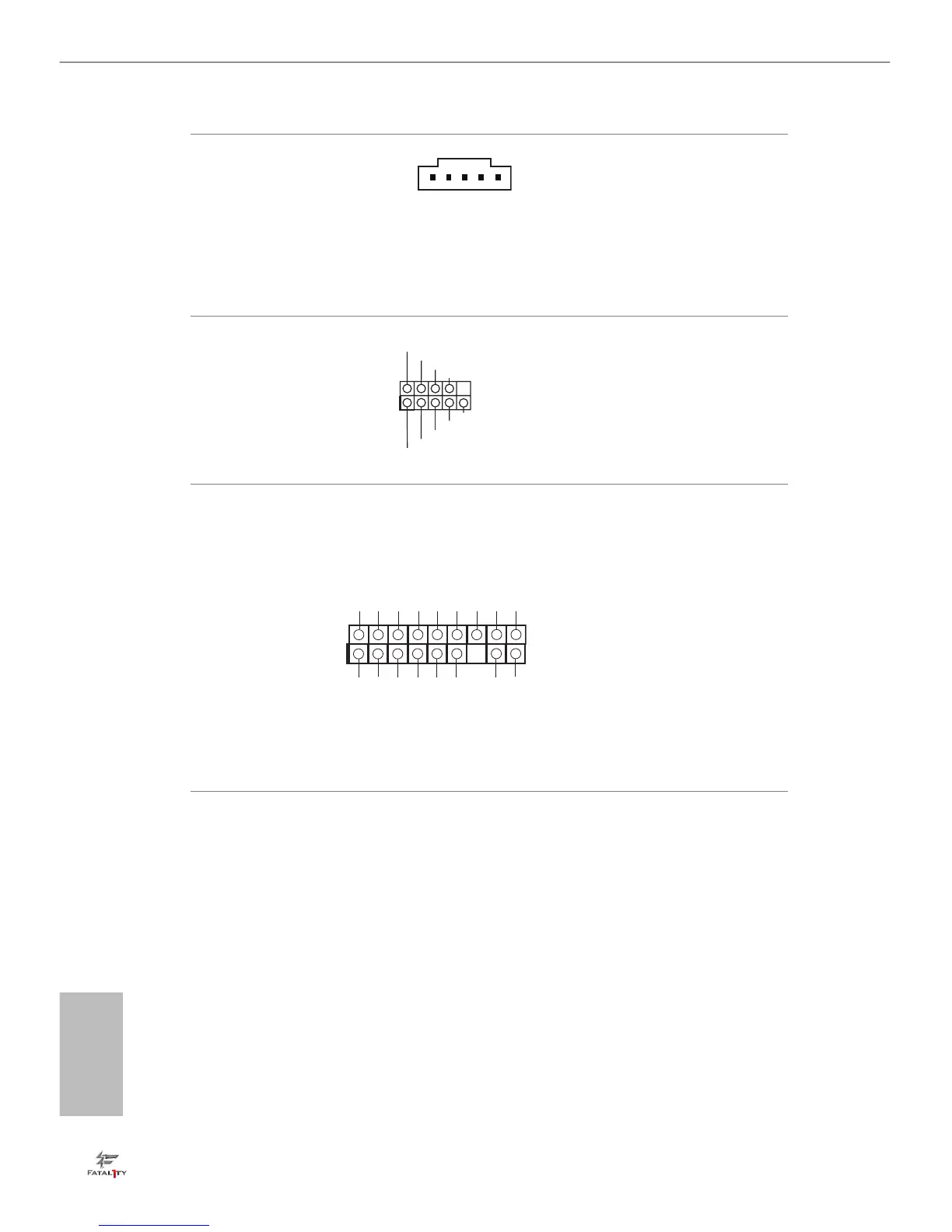

Fatal1ty X99 Professional Series
underbolt AIC
Connector
(5-pin TBT1)
(see p.7, No. 43)
Please connect a underbolt™
add-in card (AIC) to this
connector via the GPIO cable.
*Please install the underbolt™
AIC card to PCIE3 (default
slot).
Serial Port Header
(9-pin COM1)
(see p.7, No. 41)
is COM1 header
supports a serial port
module.
TPM Header
(17-pin TPMS1)
(see p.7, No. 36)
is connector supports Trusted
Platform Module (TPM) system,
which can securely store keys,
digital certicates, passwords,
and data. A TPM system also
helps enhance network security,
protects digital identities, and
ensures platform integrity.
1
GN D
SMB_DATA_MAIN
LAD2
LAD1
GN D
S_PWRDWN #
SERIRQ #
GN
D
P CICL K
P CIRST #
LAD3
+3 V
LAD0
+3VS B
GN D
FRAM E
SMB_CLK_MAIN
CCTS#1
RRTS#1
DDSR#1
DDTR#1
RRXD1
GND
TTXD1
DDCD#1
1
RRI#1

ASROCK Fatal1ty X99 Professional Series Specifications

General

Chipset	Intel X99
CPU Socket	LGA 2011-v3
Memory Slots	8 x DIMM
Maximum Memory	128GB
Memory Type	DDR4
SATA 6Gb/s Ports	10
M.2 Slots	1
Form Factor	ATX
RAID Support	RAID 0, 1, 5, 10
PCI Express x1 Slots	1 x PCIe 2.0 x1
Storage Interface	SATA 6Gb/s
LAN	Dual Gigabit LAN
Audio	Realtek ALC1150
Multi-GPU Support	AMD 3-Way CrossFireX
USB Ports	10 (6 rear, 4 via headers)
Ethernet	Dual Gigabit LAN
