ASROCK Fatal1ty X99 Professional Series User Manual

English
26
27
Fatal1ty X99 Professional Series
I.5V PCH
1.05V CPU
VCCM
CORE3
VCC_IN
GND
1.05V PCH
1

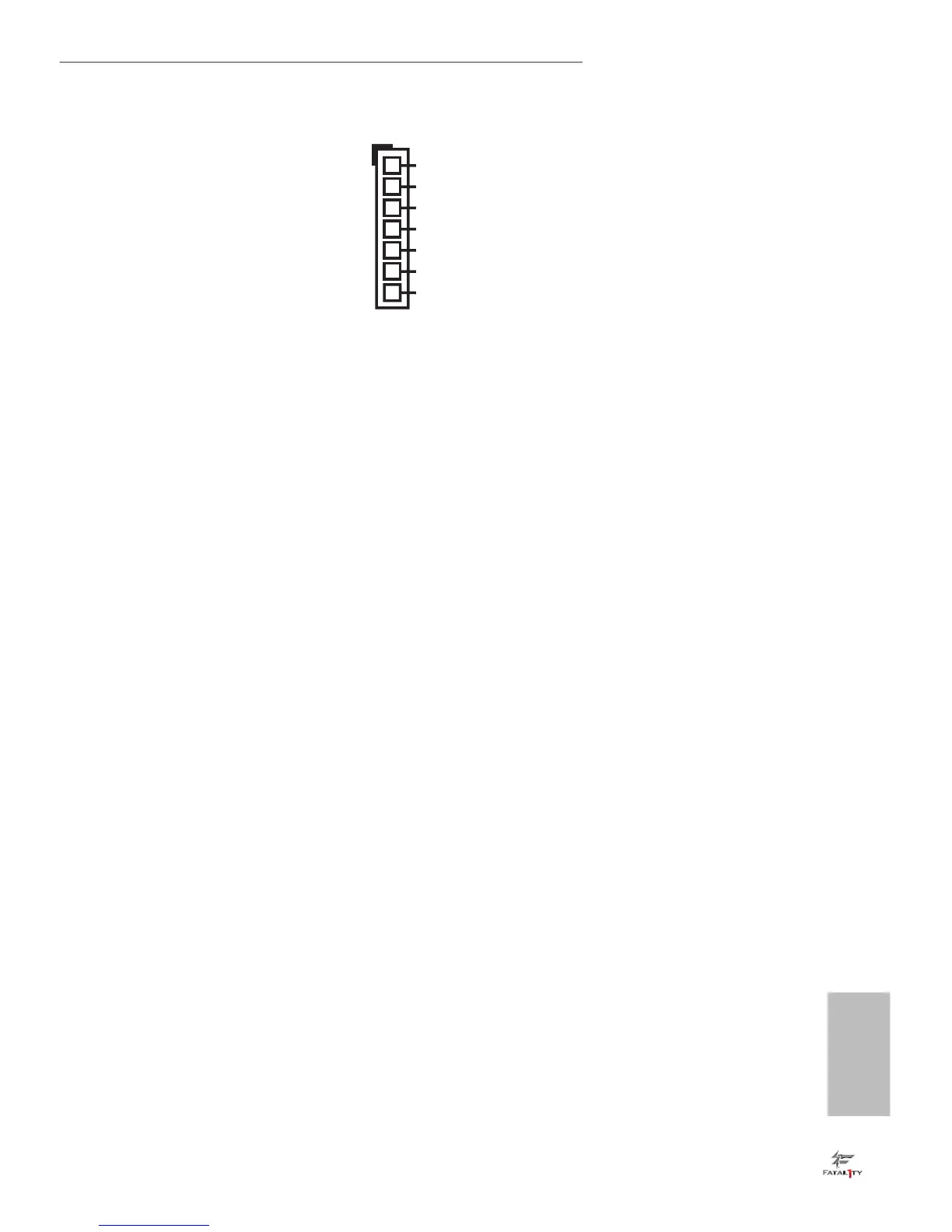

V-Probe
TM
(7-pin VOL_
CON1)
(see p.7, No. 15)
Users are able to measure
onboard components
voltage.
PIN1:
1.5V PCH:
PCH PLL Voltage
PIN2:
1.05V PCH:
PCH Voltage
PIN3:
1.05V CPU:
CPU I/O Voltage (CPU_
V10)
PIN4
:
VCCM:
DR AM Voltage
PIN5
:
CORE3
:
3
rd
CPU CORE
voltage (only works with
8-cores CPU)
PIN6
:
VCC_IN:
CPU Input Voltage
PIN7
:
GND

ASROCK Fatal1ty X99 Professional Series Specifications

General

Chipset	Intel X99
CPU Socket	LGA 2011-v3
Memory Slots	8 x DIMM
Maximum Memory	128GB
Memory Type	DDR4
SATA 6Gb/s Ports	10
M.2 Slots	1
Form Factor	ATX
RAID Support	RAID 0, 1, 5, 10
PCI Express x1 Slots	1 x PCIe 2.0 x1
Storage Interface	SATA 6Gb/s
LAN	Dual Gigabit LAN
Audio	Realtek ALC1150
Multi-GPU Support	AMD 3-Way CrossFireX
USB Ports	10 (6 rear, 4 via headers)
Ethernet	Dual Gigabit LAN
