9
English
H610M-IT X/eDP

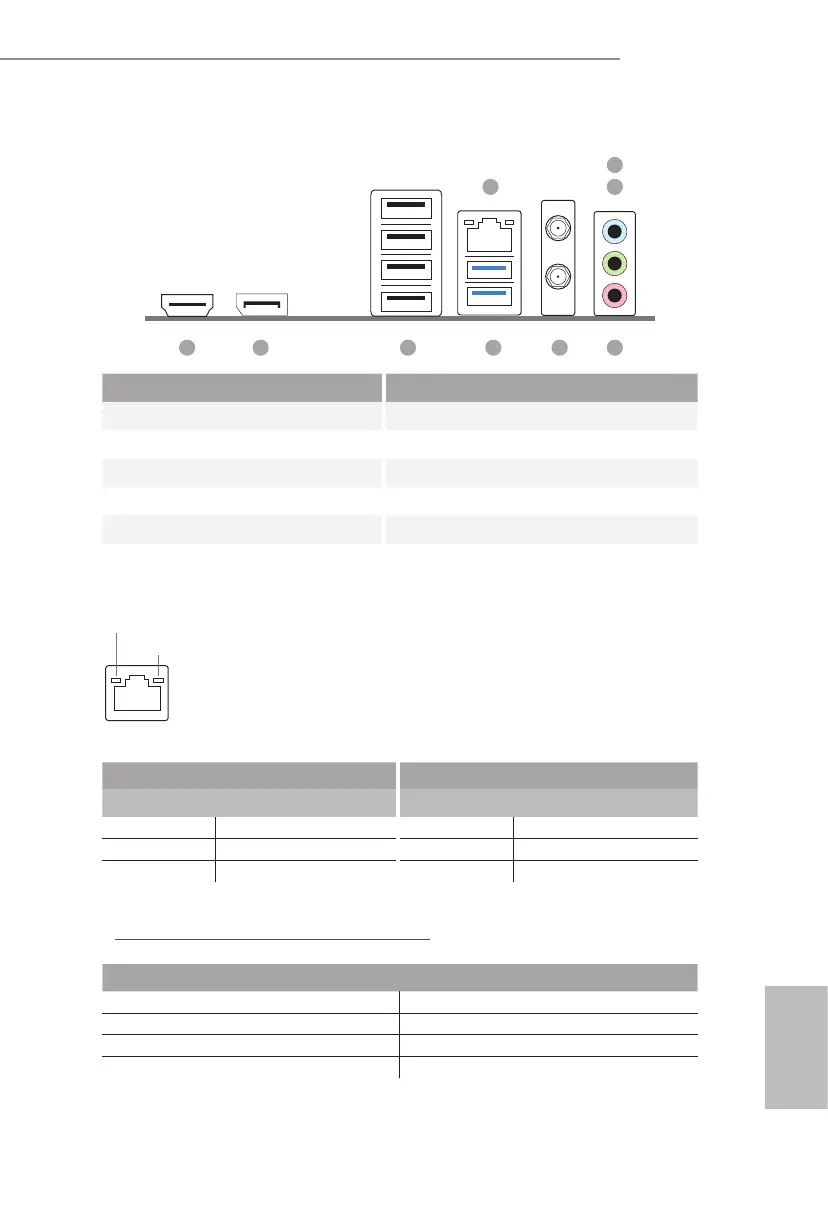

1.4 I/O Panel
No. Description No. Description
1 LAN RJ-45 Port* 6 USB 3.2 Gen1 Ports (USB32_12)
2 Line In (Light Blue)** 7 USB 2.0 Ports (USB_1234)***
3 Front Speaker (Lime)** 8 DisplayPort 1.4
4 Microphone (Pink)** 9 HDMI Port
5 Antenna Ports
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
** Function of the Audio Ports in 7.1-channel Conguration:
Port Function
Light Blue (Rear panel) Rear Speaker Out
Lime (Rear panel) Front Speaker Out
Pink (Rear panel) Central /Subwoofer Speaker Out
Lime (Front panel) Side Speaker Out
9 467
3
2
1
8 5
*** CNVi BT shares bandwidth with the top USB 2.0 port (USB_1). When CNVi BT is used, USB_1 becomes
unavailable.
