ASROCK H610M-ITX/eDP User Manual

23
English
H610M-IT X/eDP

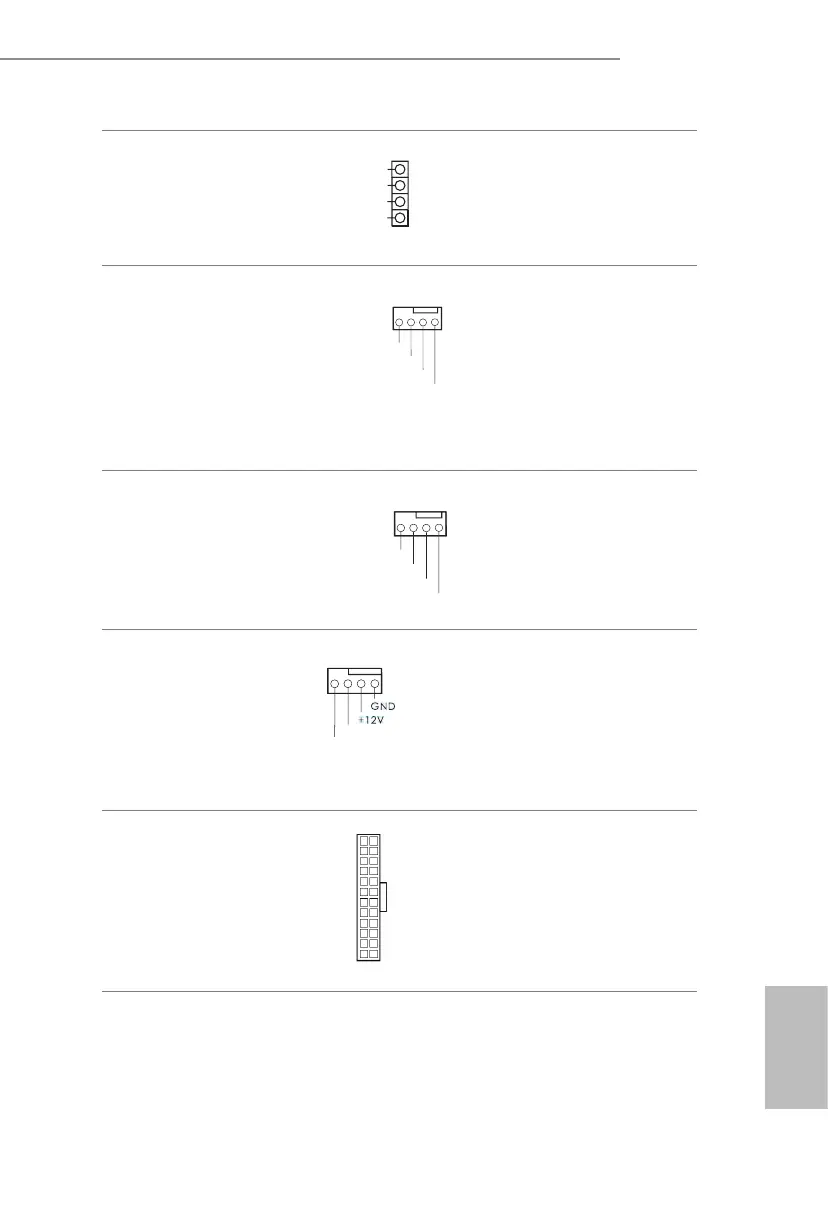

Chassis Speaker Header
(4-pin SPEAKER1)
(see p.6, No. 15)
Please connect the chassis
speaker to this header.
Chassis/Water Pump Fan
Connector
(4-pin CHA_FAN1/WP)
(see p.6, No. 4)
is motherboard
provides a 4-Pin water
cooling chassis fan
connector. If you plan to
connect a 3-Pin chassis
water cooler fan, please
connect it to Pin 1-3.
Chassis Fan Connector
(4-pin CHA_FAN2)
(see p.6, No. 1)
Please connect fan cables
to the fan connector and
match the black wire to
the ground pin.
CPU Fan Connector
(4-pin CPU_FAN1)
(see p.6, No. 3)
is motherboard pro-
vides a 4-Pin CPU fan
(Quiet Fan) connector.
If you plan to connect a
3-Pin CPU fan, please
connect it to Pin 1-3.
ATX Power Connector
(24-pin ATXPWR1)
(see p.6, No. 6)
is motherboard pro-
vides a 24-pin ATX power
connector. To use a 20-pin
ATX power supply, please
plug it along Pin 1 and Pin
13.
GND
+12V
CHA_FAN_SPEED
F A N_ S PE E D_ C ON T RO L
4 3 2 1
CPU_FAN_ SPEED
FAN_SPEED_CONTROL
4 3 2 1
12
1
24
13
1
+5 V
DUM MY
DUM MY
SPE AKER
GN D
F A N _ V O L T A G E
CH A _ F AN_SPEED
FA N _ SPEED_CONTROL
4 3 2 1
