ASROCK H610M-ITX/eDP User Manual

24
English

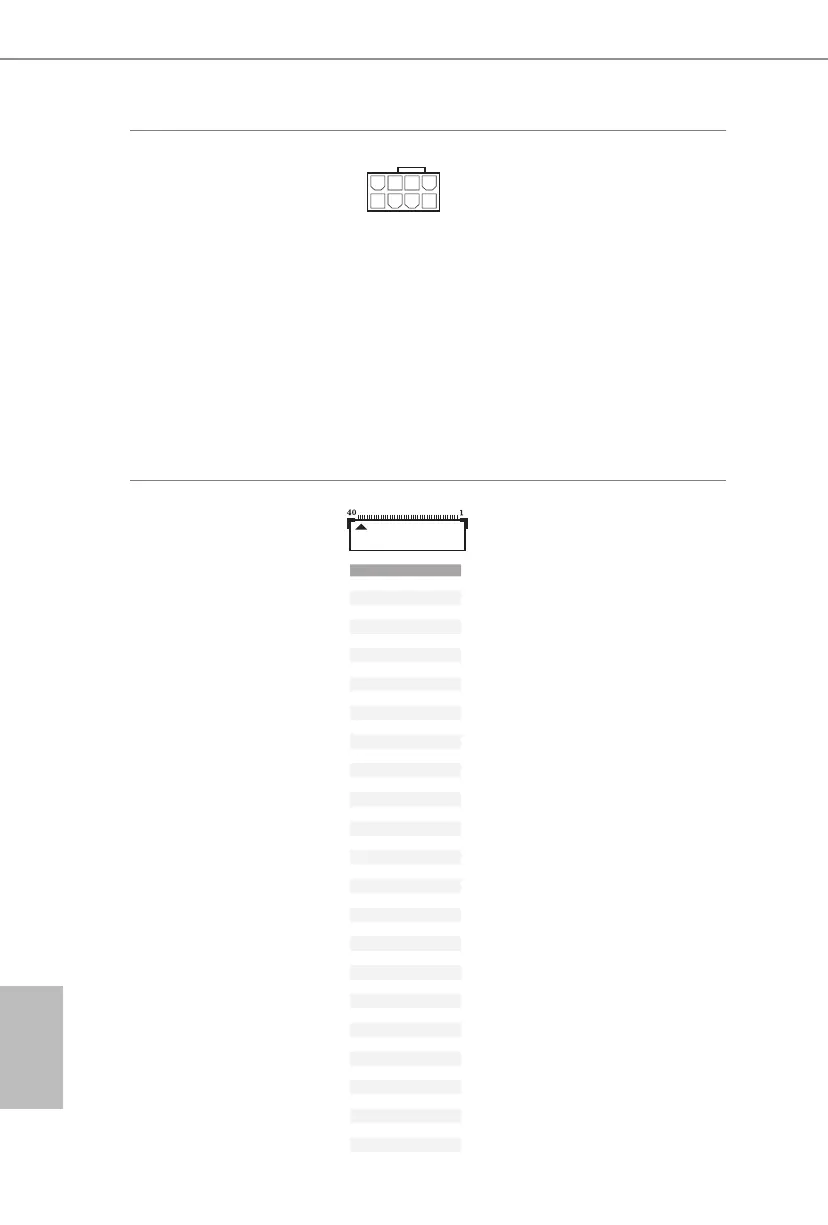

ATX 12V Power
Connector
(8-pin ATX12V1)
(see p.6, No. 2)
is motherboard
provides a 8-pin ATX 12V
power connector. To use a
4-pin ATX power supply,
please plug it along Pin 1
and Pin 5.
*Warning: Please make
sure that the power cable
connected is for the CPU
and not the graphics
card. Do not plug the
PCIe power cable to this
connector.
eDP Signal Connector
(40-pin EDP1)
(see p.7, No. 17)
is connector is for an
LCD monitor that sup-
ports an internal embed-
ded DisplayPort (eDP).
*Please refer to page 29 for further
instructions on how to adjust the
brightness.
4
1
8 5
PIN SIGNAL
1
N/A
2
LCD_BLT_VCC
3
LCD_BLT_VCC
4
LCD_BLT_VCC
5
LCD_BLT_VCC
6
N/A
7
N/A
8
eDP_VARY_BL
9
eDP_BLON
10
BKT_GND
11
BKT_GND
12
BKT_GND
13
BKT_GND
14
eDP_HPD_CON
15
PNL_GND
16
PNL_GND
17
PNL_GND
18
PNL_GND
19
N/A
20
+LVDD
21
+LVDD
22
+LVDD
23
+LVDD
24
GND
25
eDP_AUX#_CON
26
eDP_AUX_CON
27
GND
28
eDP_TX0_CON
29
eDP_TX#0_CON
30
GND
31
eDP_TX1_CON
32
eDP_TX#1_CON
33
GND
34
N/A
35
N/A
36
GND
37
N/A
38
N/A
39
GND
40
N/A
