ASROCK J4125-ITX - 3.2.1 UI Overview

15
English
J5040-ITX
J4125-ITX

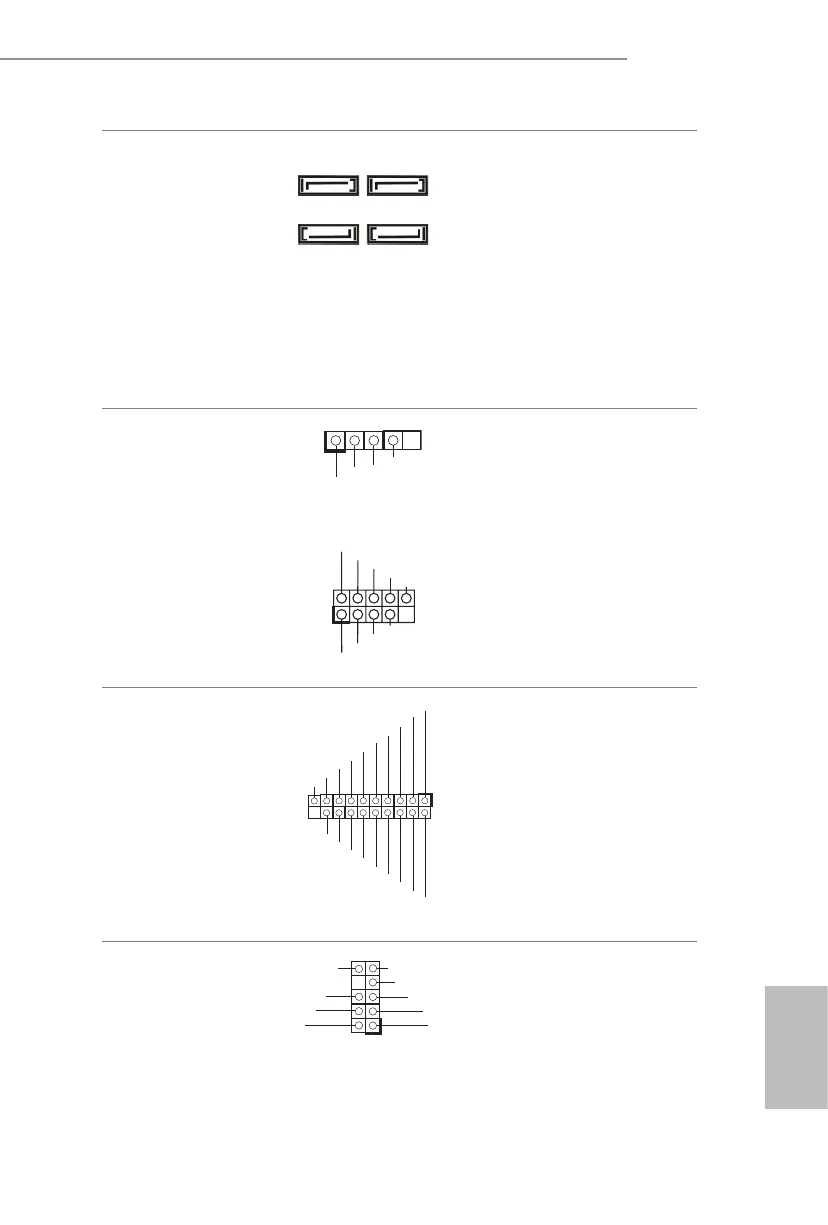

Serial ATA3 Connectors
(SATA3_1:
see p.5, No. 12)
(SATA3_2:
see p.5, No. 13)
(SATA3_A1:
see p.5, No. 15)
(SATA3_A2:
see p.5, No. 14)
ese four SATA3
connectors support SATA
data cables for internal
storage devices with up to
6.0 Gb/s data transfer rate.
* To minimize the boot
time, use Intel® SATA
ports (SATA3_1~2) for
your bootable devices.
USB 2.0 Headers
(4-pin USB_2)
(see p.5, No. 11)
(9-pin USB_0_1)
(see p.5, No. 9)
ere are two headers on
this motherboard.
USB 3.2 Gen1 Header
(19-pin USB3_0_1)
(see p.5, No. 10)
ere is one header on
this motherboard. is
USB 3.2 Gen1 header can
support two ports.
Front Panel Audio Header
(9-pin HD_AUDIO1)
(see p.5, No. 16)
is header is for
connecting audio devices
to the front audio panel.
1
ID
IntA_P_D +
IntA_P_D -
GN D
IntA_P_SSTX+
IntA_P_SSTX-
GN D
IntA_P_SSRX +
Vbu s
IntA_P_D +
IntA_P_D -
GN D
IntA_P_SSTX+
IntA_P_SSTX-
GN D
IntA_P_SSRX +
IntA_P_SSRX -
Vbu s
I
ntA_P_SSRX -
DUMMY
GND
GND
P+
P-
USB_PWR
P+
P-
U SB_PWR
1
J_SENSE
OUT2_L
1
MIC_RED
OUT_RET
OUT2_R
MIC2_R
MIC2_L
GND
PRESENCE#
SATA3_A1 SATA3_1
SATA3_A2 SATA3_2
1
USB_PWR
P-
P+
GND
