ASROCK J4125-ITX User Manual

17
English
J5040-ITX
J4125-ITX
2.5 M.2 WiFi/BT Module and Intel® CNVi (Integrated WiFi/BT)
Installation Guide
e M.2, also known as the Next Generation Form Factor (NGFF), is a small size and
versatile card edge connector that aims to replace mPCIe and mSATA. e M.2 Socket (Key
E) supports type 2230 WiFi/BT module and Intel® CNVi (Integrated WiFi/BT).
* e M.2 socket does not support SATA M.2 SSDs.
Installing the WiFi/BT module

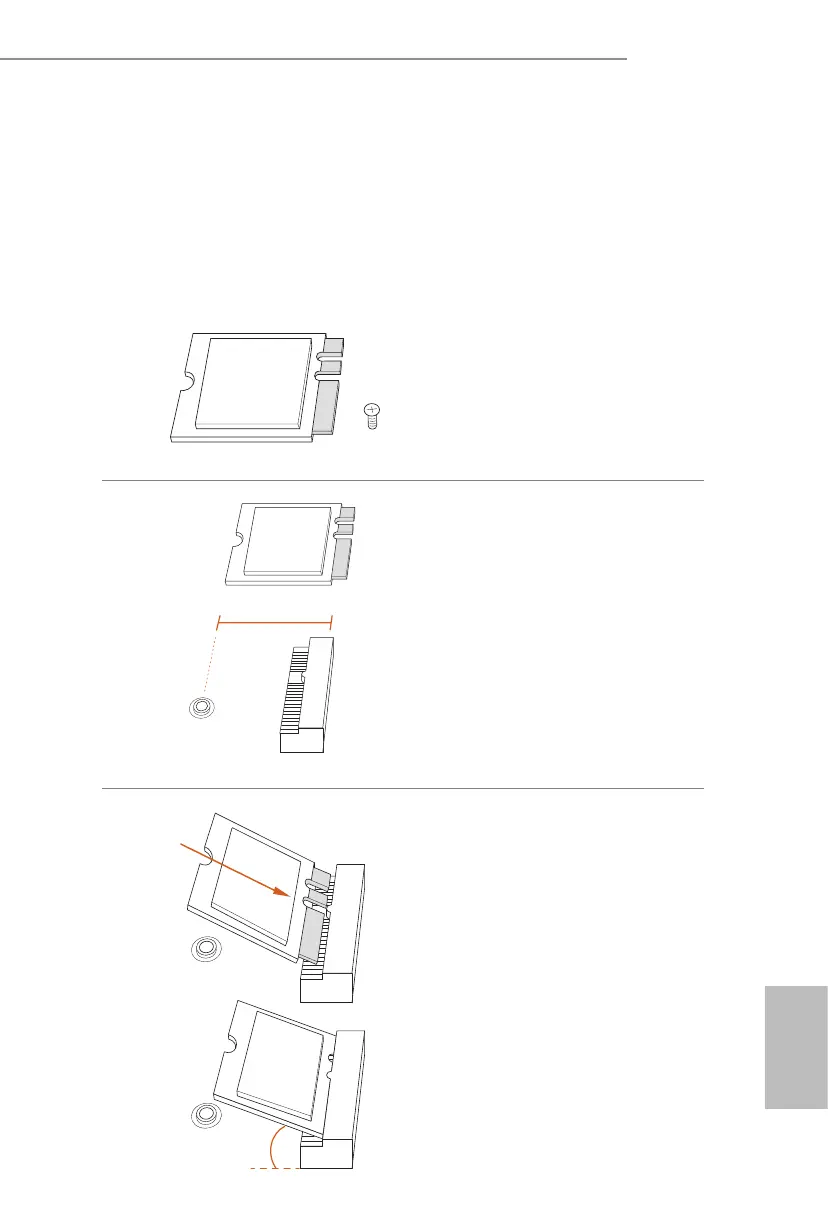

Step 1
Prepare a type 2230 WiFi/BT module
or Intel® CNVi (Integrated WiFi/BT)
and the screw.
PCB Length: 3cm
Module Type: Type2230
A
Step 2
Find the nut location to be used.
A
A
20
o
Step 3
Gently insert the WiFi/BT module
or Intel® CNVi (Integrated WiFi/
BT) into the M.2 slot. Please be
aware that the module only ts in one
orientation.

ASROCK J4125-ITX Specifications

General

Processor cores	4
Processor model	J4125
Processor socket	BGA 1090
Processor manufacturer	Intel
Compatible processor series	-
Maximum number of SMP processors	1
Maximum internal memory supported by processor	8 GB
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	SO-DIMM
Supported memory types	DDR4-SDRAM
Supported memory clock speeds	2133, 2400 MHz
Supported memory module capacities	1GB, 4GB
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	SATA III
Graphics card	Intel® UHD Graphics 600
OpenGL version	4.4
DirectX version	12.0
Maximum resolution	4096 x 2160 pixels
Number of displays supported	3
USB 2.0 connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
USB connector type	USB Type-A
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Wi-Fi	No
LAN controller	Realtek RTL8111H
Ethernet interface type	Gigabit Ethernet
Audio chip	Realtek ALC892
Cooling type	Active
Component for	PC
Power source type	ATX
PC health monitoring	CPU, FAN, LED, Power supply, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	mini ITX
Windows operating systems supported	Windows 10 x64
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	128 Mbit
System Management BIOS (SMBIOS) version	3.0
Cables included	SATA
Harmonized System (HS) code	84733020

Weight and Dimensions

Width	170 mm
