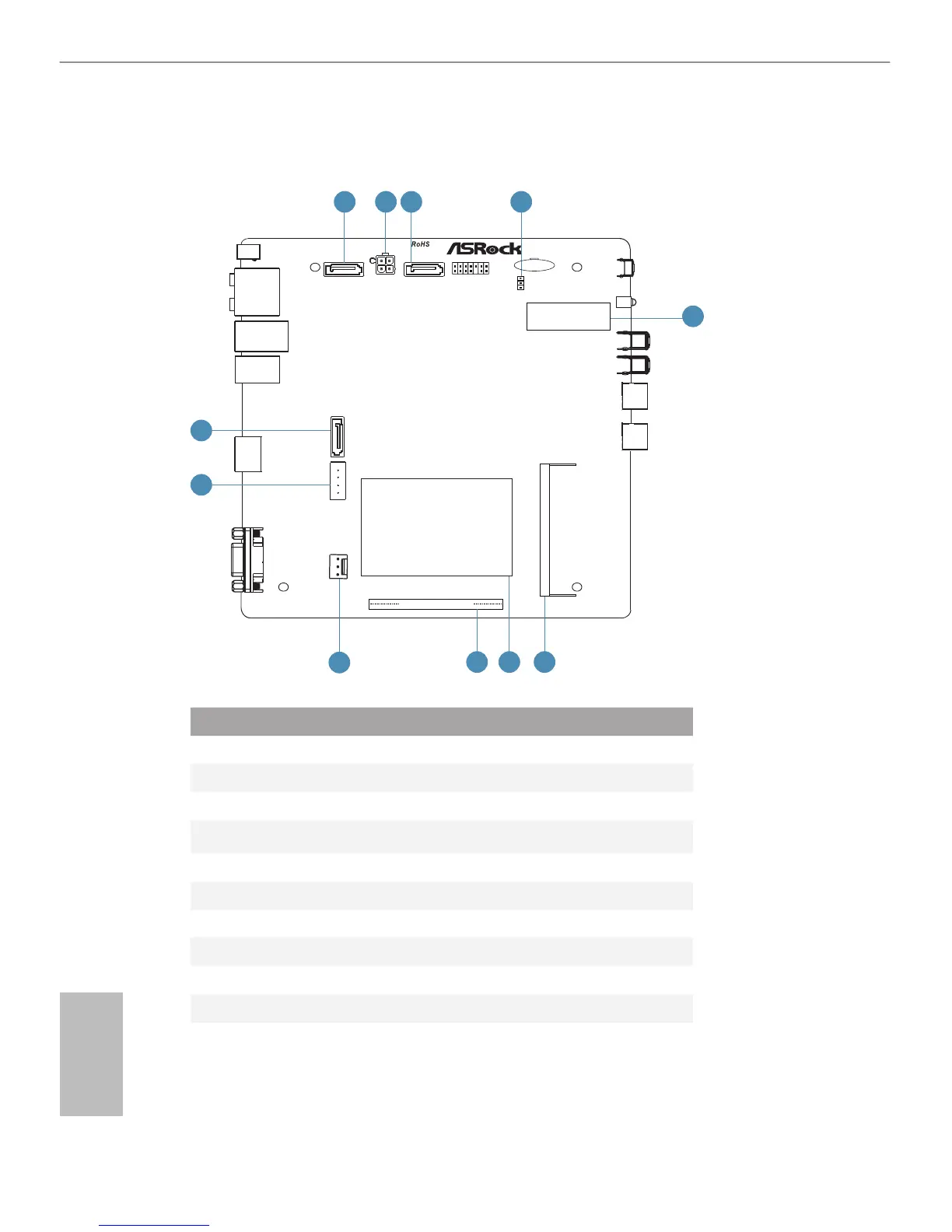

1.3 Motherboard Layout

DDR3_B1

Q1900-HT











DDR3_A1





MINI_PCIE1

No. Description

1 SATA 3.0 connector: For HDD SATA data cable

2 ATX5V output power connector for slim ODD & 2.5” HDD

3 SATA 2.0 connector: For the ODD’s SATA data cable

4 Clear CMOS jumper

5 Mini-PCI Express expansion slot: For the WiFi module

6 SO-DIMM Slot (DDR3_A1)

7 Heatsink

8 SO-DIMM Slot (DDR3_B1)

9 Chassis fan connector

10 +5V output power connector: For the second SATA 2.5” HDD

11 SATA 3.0 connector: For the second HDD’s SATA data cable
