ASROCK PHANTOM GAMING B650I LIGHTNING WiFi User Manual

41
B650I Lightning WiFi

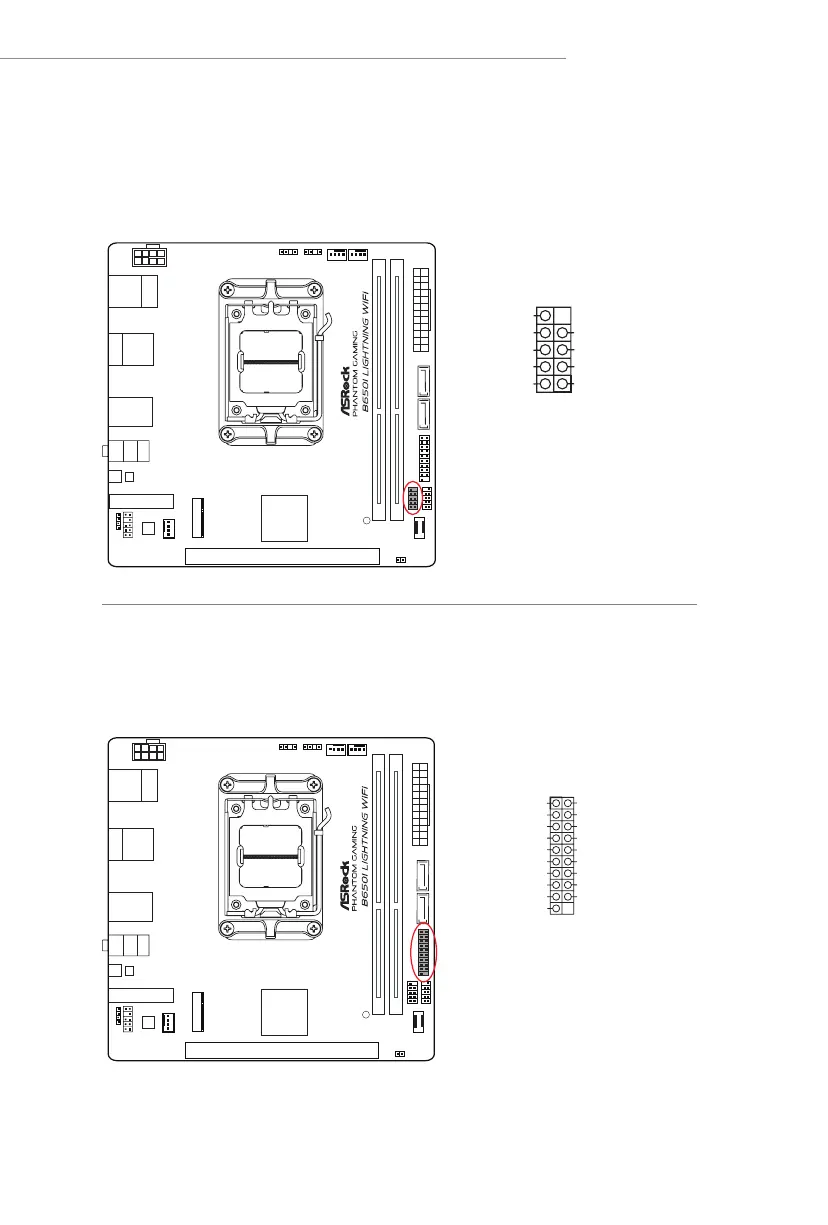

USB 2.0 Header
(9-pin USB_5_6) (see p.6, No. 12)
ere is one header on this motherboard. is USB 2.0 header can support two
ports.
USB 3.2 Gen1 Header
(19-pin USB32_4_5) (see p.6, No. 10)
ere is one header on this motherboard. is USB 3.2 Gen1 header can support
two ports.
USB32_4_5
1
IntA_PB_D+
Dummy
IntA_PB_D-
GND
IntA_PB_SSTX+
GND
IntA_PB_SSTX-
IntA_PB_SSRX+
IntA_PB_SSRX-
VbusV
VbusV
IntA_PA_SSRX-
IntA_P
A_SSRX+
GND
IntA_PA_SSTX-
IntA_P
A_SSTX+
GND
IntA_PA_D-
IntA_PA_D+
USB_5_6
DUMMY
GNDGND
P+
P-
P+
P-
USB_PW
R
USB_PW
R
1

ASROCK PHANTOM GAMING B650I LIGHTNING WiFi Specifications

General

Chipset	AMD B650
Form Factor	Mini-ITX
Memory Slots	2
Maximum Memory	64GB
Memory Type	DDR5
Memory Support	DDR5 6400+(OC)
PCIe Slots	1 x PCIe 4.0 x16
LAN	2.5 Gigabit LAN
CPU Socket	AM5
Bluetooth	Bluetooth 5.2
Audio Codec	Realtek ALC1220
Storage Interface	4 x SATA3 6.0 Gb/s
WiFi	WiFi 6E (802.11ax)
RGB Support	Yes
M.2 Slots	2
USB Ports	4 x USB 3.2 Gen1 Type-A, 2 x USB 2.0
