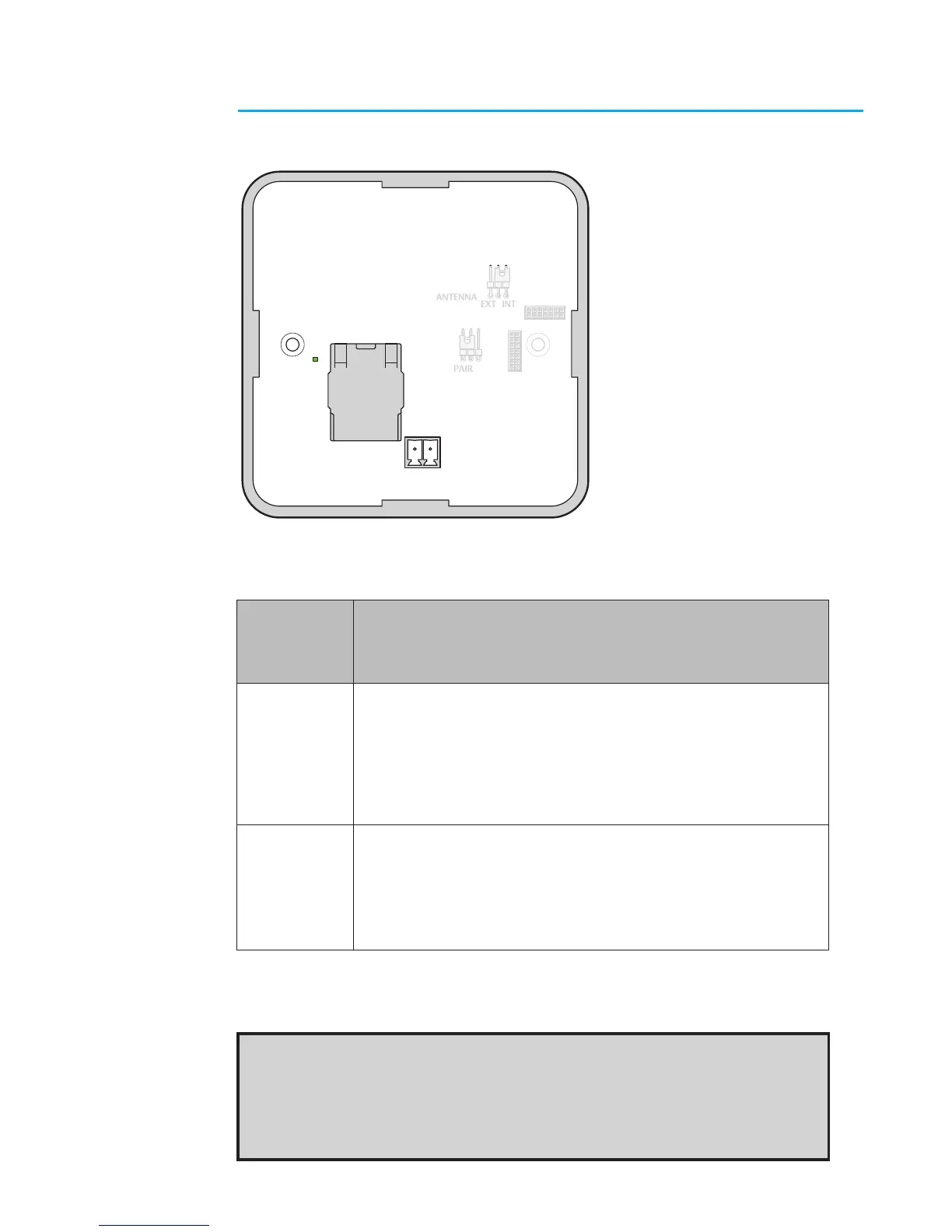

AH40 - Connectors
Note: When PoE (Power over Ethernet) is used, no power supply
should be connected to J321. The installation must comply with
national wiring regulations.
ConneCtors DesCription
J201
Ethernet connector. Connection to the Electronic Access
Control system through a 10BASE-T / 100BASE-TX Local
Area Network. Can also be used for power supply if
connected to a IEEE 802.3af compliant Power Sourcing
Device (PSE). Wire requirements CAT5 or higher.
J321
Power supply input, 8-24 VDC, 3.5 W. The power supply
shall be a Limited Power Source (LPS) according to EN
60950-1. The power supply shall be 3 A over current
protected. Wire requirements 16-22 AWG.
8-24V
- +
LINK PAIR
J201
J321
ANTENNA
EXT INT
