LED Function: LED states are controlled and defined by the User’s EAC. Enabling the red and green LEDs on
the HES K200 occurs via an active low (ground) signal.
Output Type: SIAAC-01-1996 Wiegand Output Compliant.
FCC Part 15, Compliant, Industry Canada Compliant
BHMA: A156.3, A156.36, A156.25 Compliant
NOTE: Contact HID Global Technical Support at (866) 607-7339 for additional configuration cards to enable
the credential capabilities of “iCLASS Elite” and “NFC over HCE.”
Credentials Supported: 125 kHz Proximity or 13.56 MHz iCLASS, iCLASS Elite, iCLASS SEOS, iCLASS SE, ISO
15693 ICLASS, ISO 14443A Mifare, Mifare Plus, Desfire SE, Desfire EV1, and NFC over HCE.

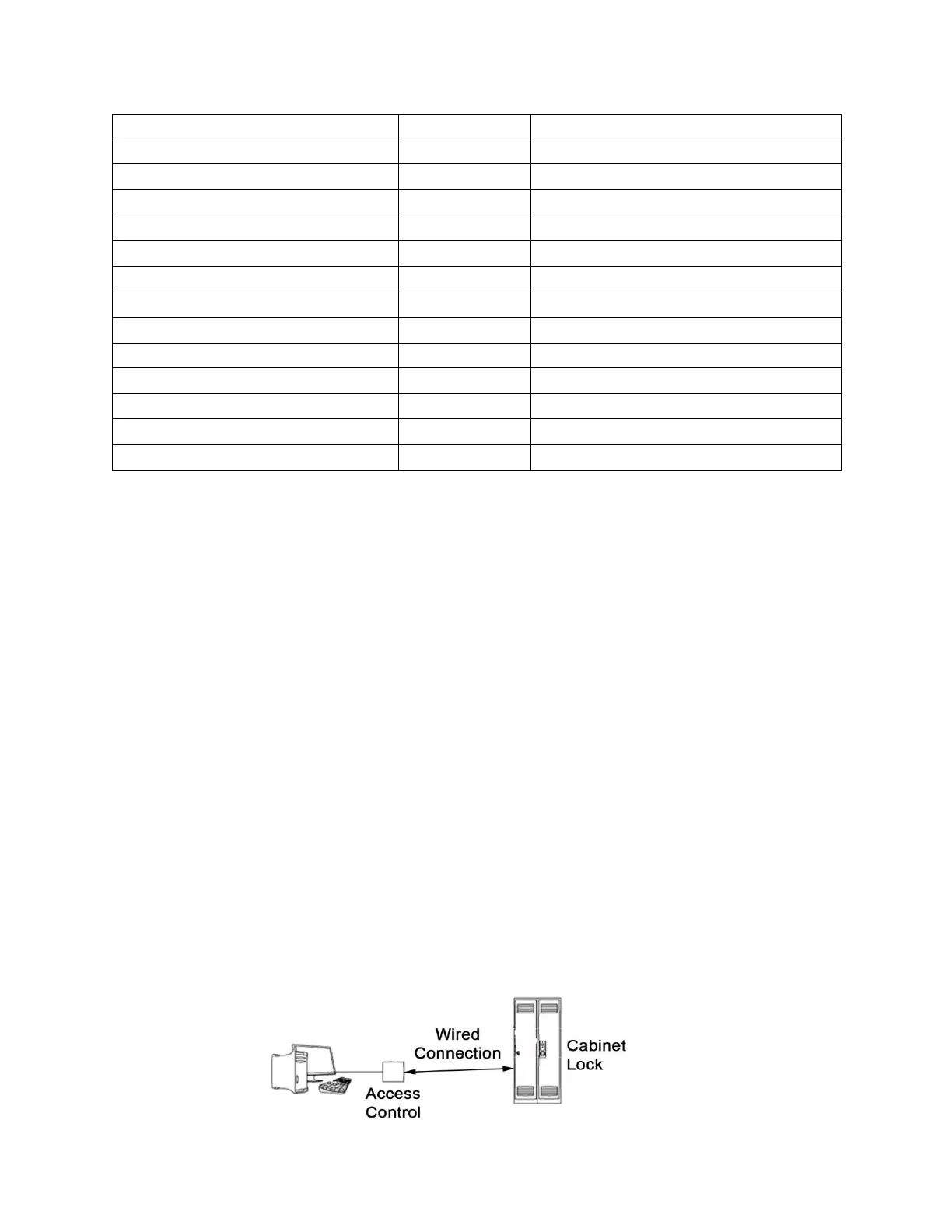

SYSTEM OVERVIEW
The HES K200-622 wired cabinet lock (K200) extends access control to a cabinet or drawer. The HES K200
lock is capable of reading radio-frequency identification (RFID) credentials and providing that credential data
to an electronic access control (EAC) system via Wiegand data signaling. The EAC is responsible for
determining whether user access should be granted or denied. When the EAC provides an active-high unlock
signal to the lock in the access granted case, the HES K200 drives a motor to complete the unlock/lock cycle.
EAC indication of user access/denial is provided to the user by way of LED control inputs on each lock.
Additional lock monitoring features (e.g., door position, tamper) are monitored within the lock and status of
each is provided to the EAC.
