ASSA Interchangeable Cores
TWIN V-10, TWIN EXCLUSIVE, TWIN PRO, TWIN MAXIMUM, CLIQ
Mortise and Rim Interchangeable Core

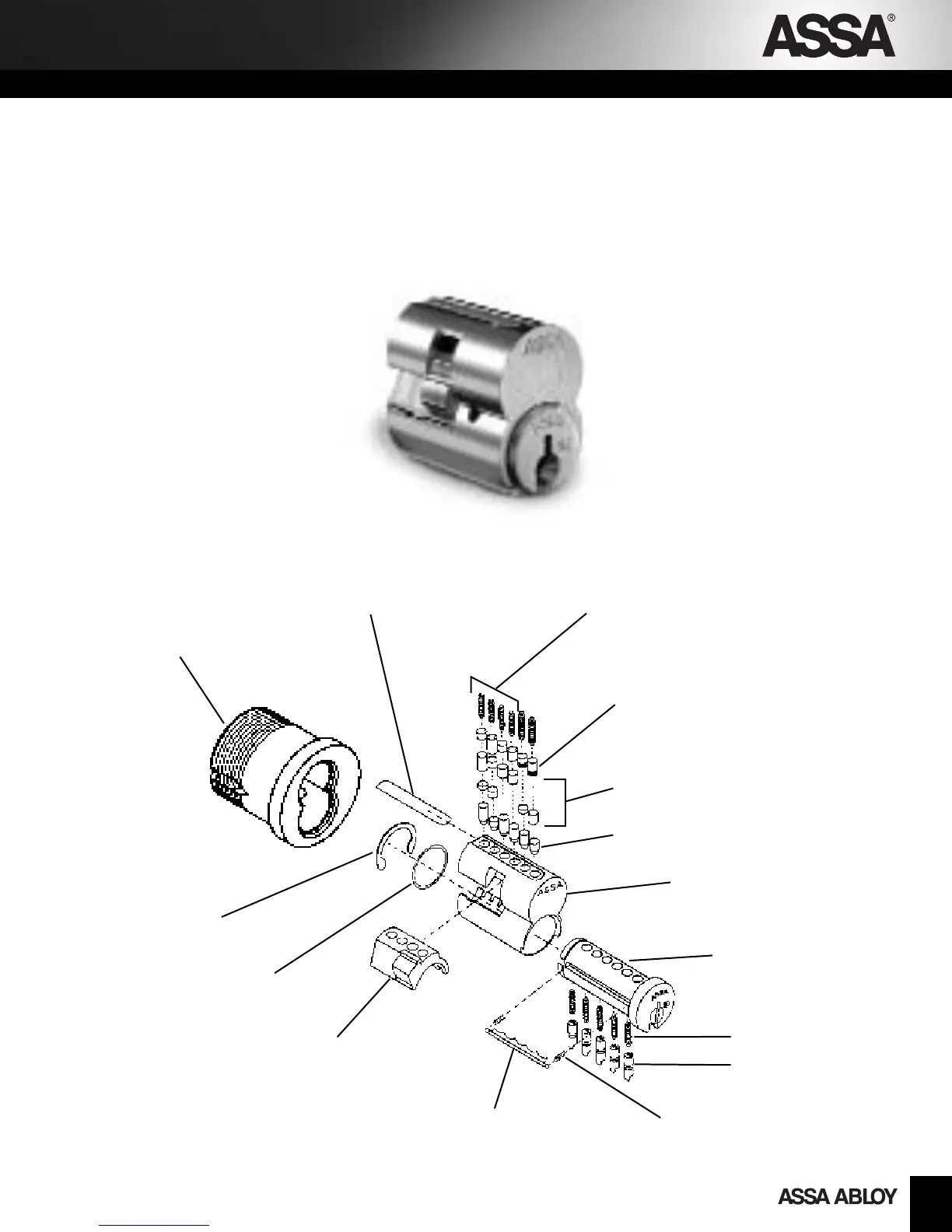

Cylinders Exploded View
ASSA Interchangeable Core
IC Control Chamber Springs
Spool Top Pin
Build Up Pins
Bottom Pins
IC Shell
Cylinder Plug
Side Pin Spring
IC Closing Strip
Side Pin
Sidebar SpringSidebar
IC Contr
ol Sleeve
IC Wave Washer
IC C Ring
IC Cylinder Housing
