79

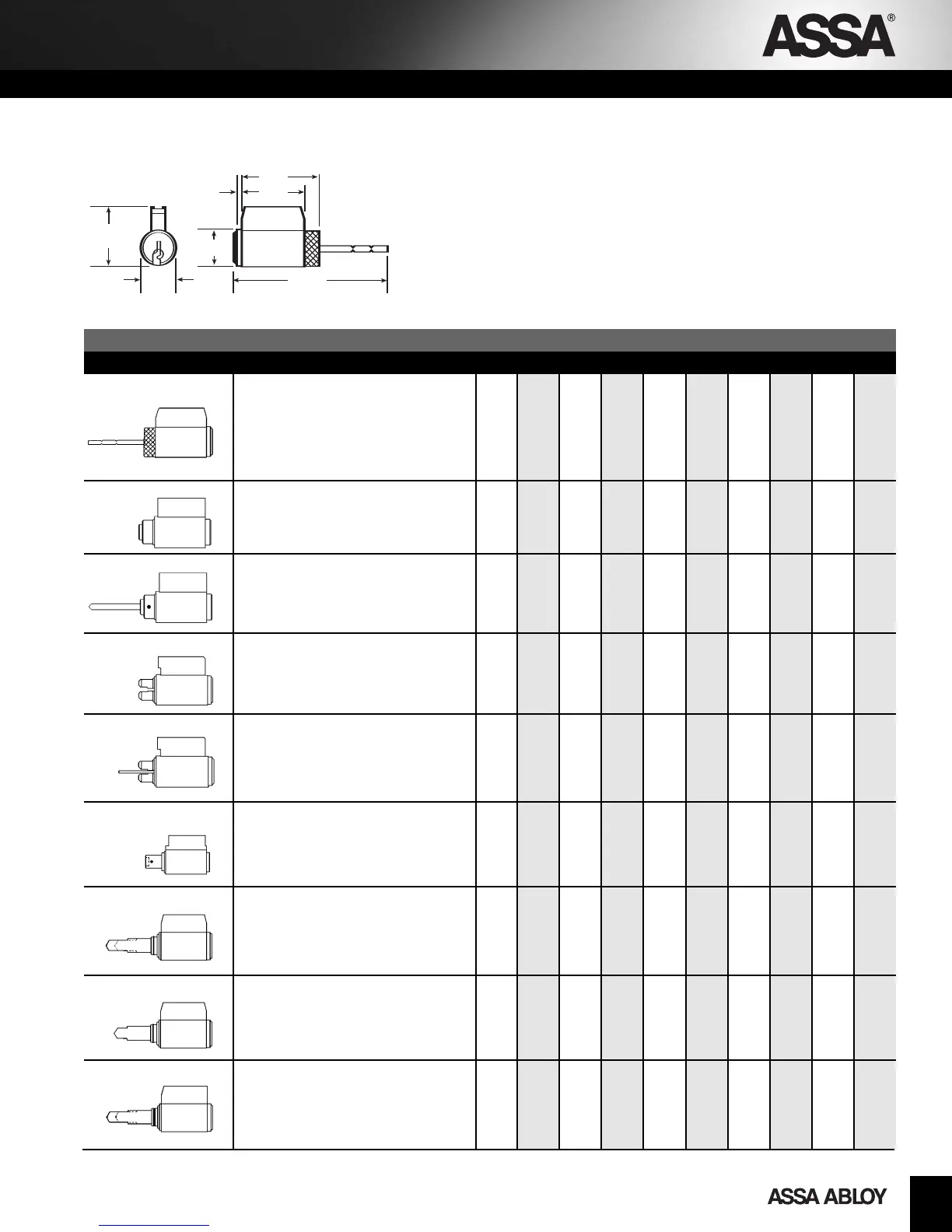

Key-in-Knob/Lever Cylinders
Key-in-Knob/Lever Key:
BL – Bible Length
CD – Cylinder Diameter
CH – Cylinder Height
CL – Cylinder Length
EL – Effective Length
FL – Front Length
PD – Plug Face Diameter
ASSA Key-in-Knob/Lever Cylinders
TWIN V-10, TWIN EXCLUSIVE, TWIN PRO, TWIN MAXIMUM, CLIQ
Key-in-Knob/Lever Cylinders
Model #/Make Description BL CD CH CL EL FL PD Comp Sub SNS
28611 - Schlage Standard and heavy-duty 6-pin, includes
cap, pin, spring and break-off tailpiece.
For B series Deadbolts Corbin/Russwin
CL3300, CL3400, CL3600, CL3700, CK4700,
CL3900 (Must use original manufacturer's
tailpiece and stabilizing sleeve). CK4400
for all functions except 29, 55, & 82. Also
use for A5 & N5 exit trim.
1.023 0.634 1.020 2.465 1.250 0.071 0.560 62.50 56.50 51.00
28631 - Yale
Standard and heavy-duty
1.000 0.677 1.071 N/A 1.429 0.000 0.560 62.50 56.50 51.00
Twin Maximum Medium Security
28632 - Yale
Key-In-Lever style
1.000 0.677 1.071 2.975 1.429 0.000 0.560 62.50 56.50 51.00
28651 - Corbin/Russwin
Heavy-duty, new style (Not 3400, 3600,
3800 series) Use for CK4200, & UT5200
1.038 0.677 1.071 N/A 1.453 0.135 0.560 62.50 56.50 51.00
28652 - Corbin/Russwin
Standard-duty, new style tailpiece
included. For CK4300, 5600, & B2, G2,
G3 exit trim
1.038 0.677 1.071 2.165 1.453 0.135 0.560 62.50 56.50 51.00
28
672 - Sar
gent
Heavy-duty 7, 8, 9 lines KIK
1.010
0.677
1.071
N/A
1.663
0.020 0.560 62.50 56.50 51.00
28
673 - Sar
gent
Standard duty 3 tailpieces included
6 Line KIK, 7 Line KIL, 10 Line KIL
0.990
0.634
1.020
2.000
1.235
0.000 0.560 62.50 56.50 51.00
2.040
2.315
28673-TZ - Sargent
T-Zone 11 Line KIL
0.990 0.634 1.020 1.720 1.235 0.000 0.560 62.50 56.50 51.00
28691 - Arrow
Standar
d and heavy-duty
, 3 tailpiece
included for Ar
r
ow C, H, L, M, Q, S & W
Series key-in-knob & key-in-lever style
1.022 0.634 1.020 2.000 1.268 0.070 0.560 62.50 56.50 51.00
2.040
2.315
