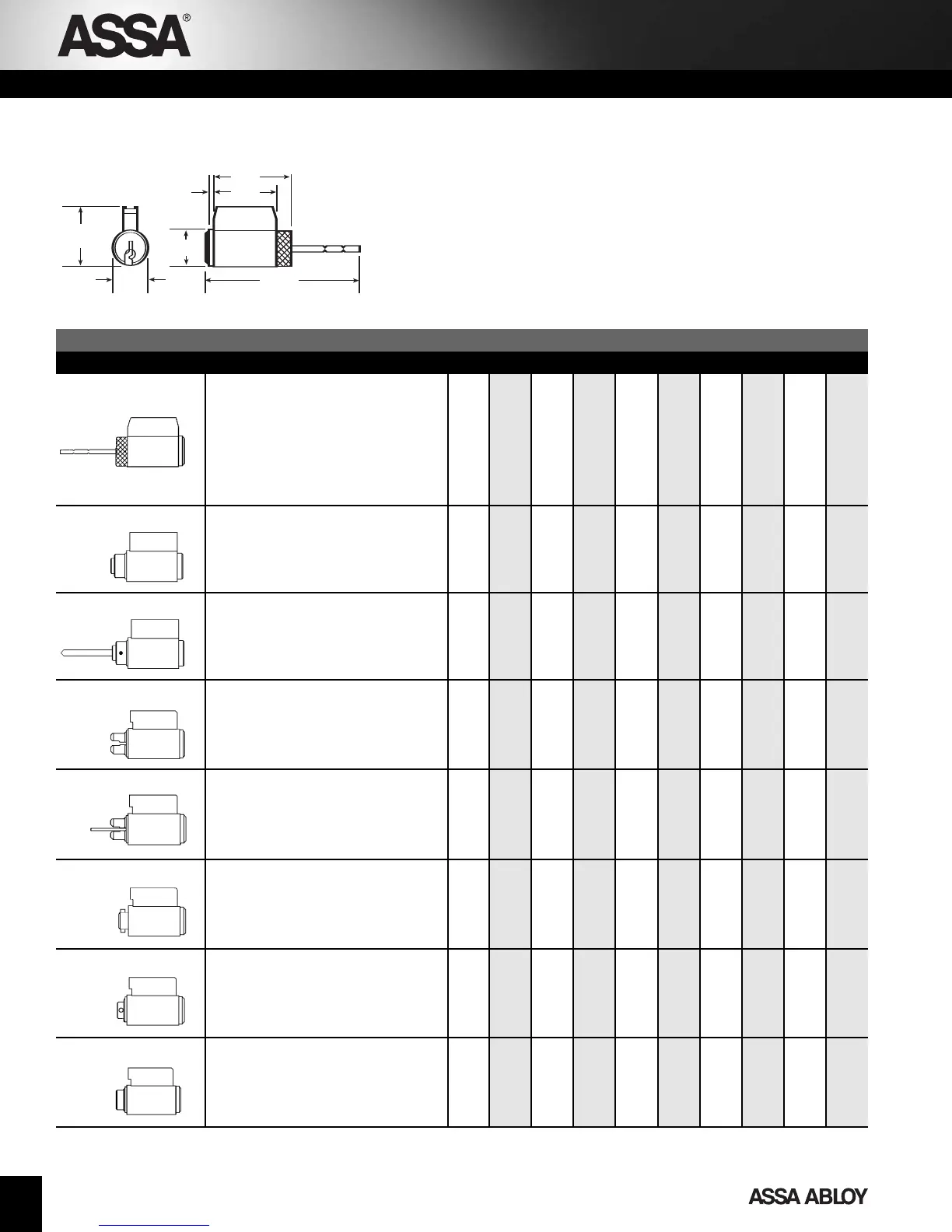

ASSA Key-in-Knob/Lever Cylinders
TWIN V-10, TWIN EXCLUSIVE, TWIN PRO, TWIN MAXIMUM, CLIQ
Key-in-Knob/Lever Cylinders
PD
CL
BLFL
EL
CH
CD
Key-in-Knob/Lever Key:
BL – Bible Length
CD – Cylinder Diameter
CH – Cylinder Height
CL – Cylinder Length
EL – Effective Length
FL – Front Length
PD – Plug Face Diameter
Key-in-Knob/Lever Cylinders
Low 600 Description BL CD CH CL EL FL PD Comp Sub SNS
L6611 6611
Schlage
Standard and heavy-duty 6-pin, includes
cap, pin, spring and break-off tailpiece.
For B series Deadbolts Corbin/Russwin
CL3300, CL3400, CL3600, CL3700, CK4700,
CL3900 (Must use original manufacturer's
tailpiece and stabilizing sleeve). CK4400
for all functions except 29, 55, & 82. Also
use for A5 & N5 exit trim.
1.023 0.634 1.020 2.465 1.250 0.071 0.560 66.00 57.00 —
L6631 6631
Yale
Standard and heavy-duty
1.000 0.677 1.071 N/A 1.429 0.000 0.560 66.00 57.00 —
Twin Low & Twin 600 Series Classic
L6632 6632
Yale
Key-In-Lever style
1.000 0.677 1.071 2.975 1.429 0.000 0.560 66.00 57.00 —
L6651 6651
Corbin/
Russwin
Heavy-duty, new style (Not 3400, 3600,
3800 series) Use for CK4200, & UT5200
1.038 0.677 1.071 N/A 1.453 0.135 0.560 66.00 57.00 —
L6652
6652
Corbin/
Russwin
Standard-duty, new style tailpiece
included. For CK4300, 5600, & B2, G2,
G3 exit trim
1.038
0.677
1.071
2.165
1.453 0.135 0.560 66.00 57.00 —
L6653 6653
Corbin/
Russwin
Russwin cylinder 19F35
1.038 0.677 1.071 N/A 1.275 0.135 0.560 66.00 57.00 —
L6654 6654
Corbin/
Russwin
Russwin cylinder 25F26, 25F56, 24F15,
67F69, 55F76
1.038 0.677 1.071 N/A 1.299 0.135 0.560 66.00 57.00 —
L6655
6655
Corbin/
Russwin
Russwin cylinder 25F65
1.038
0.677
1.071 N/A 1.305 0.135 0.560 66.00 57.00 —
