81

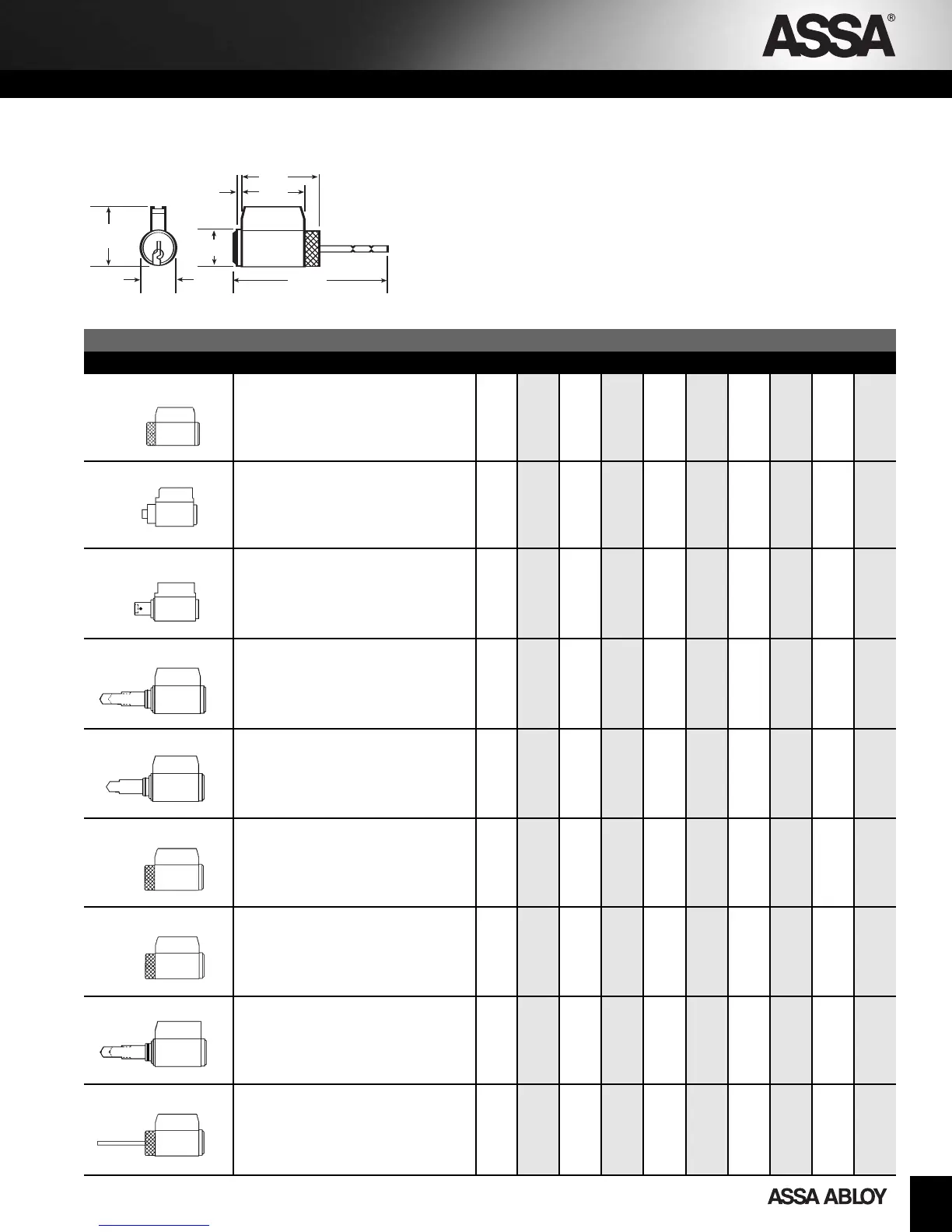

Key-in-Knob/Lever Cylinders
PD
CL
BLFL
EL
CH
CD
Key-in-Knob/Lever Key:
BL – Bible Length
CD – Cylinder Diameter
CH – Cylinder Height
CL – Cylinder Length
EL – Effective Length
FL – Front Length
PD – Plug Face Diameter
ASSA Key-in-Knob/Lever Cylinders
TWIN V-10, TWIN EXCLUSIVE, TWIN PRO, TWIN MAXIMUM, CLIQ
Key-in-Knob/Lever Cylinders
Model #/Make Description BL CD CH CL EL FL PD Comp Sub SNS
L6661 6661
Falcon
S & X Series, Use original manufacturer
cap and tailpiece
1.022 0.634 1.020 N/A 1.325 0.071 0.560 66.00 57.00 —
Twin Maximum
L6671 6671
Sargent
Integra
1.025 0.677 1.071 N/A 1.447 0.000 0.560 66.00 57.00 —
L6672 6672
Sargent
Heavy-duty 7, 8, 9 lines KIK
1.010 0.677 1.071 N/A 1.663 0.020 0.560 66.00 57.00 —
L6673 6673
Sargent
Standard duty 3 tailpieces included
6 Line KIK, 7 Line KIL, 10 Line KIL
0.990 0.634 1.020 2.000 1.235 0.000 0.560 66.00 57.00 —
2.040
2.315
L6673-TZ 6673-TZ
Sargent
T
-Zone 11 Line KIL
0.990 0.634 1.020 1.720 1.235 0.000 0.560 66.00 57.00 —
L6681 6681
W
eiser
4000 & 9000 single cylinder deadbolts,
entrance style handle locks
1.022 0.634 1.020 3.375 1.335 0.000 0.560 66.00 57.00 —
L6682 6682
Weiser
4000 & 9000 double cylinder dead
-
bolts, entrance style handle locks
1.022 0.634 1.020 1.910 1.335 0.000 0.560 66.00 57.00 —
L6691 6691
Ar
r
ow
Standar
d and heavy-duty
, 3 tailpiece
included for Ar
r
ow C, H, L, M, Q, S & W
Series key-in-knob & key-in-lever style
1.022 0.634 1.020 2.000 1.268 0.070 0.560 66.00 57.00 —
2.040
2.315
L6692 6692
Arrow
For Ar
r
ow deadbolts only
, includes
3 tailpieces for double & single cylinders
1.022 0.634 1.020 2.085 1.352 0.000 0.560 66.00 57.00 —
2.340
3.465
