Copyright © 2019-2020, ASSA ABLOY Accessories and Door Controls Group, Inc. All rights reserved. Reproduction in whole
or in part without the express written permission of ASSA ABLOY Accessories and Door Controls Group, Inc. is prohibited.
80-9360-1035-020 Rev 3 03/20
17
D6001DE-R Double Unit Series (Double Egress) Power Operator

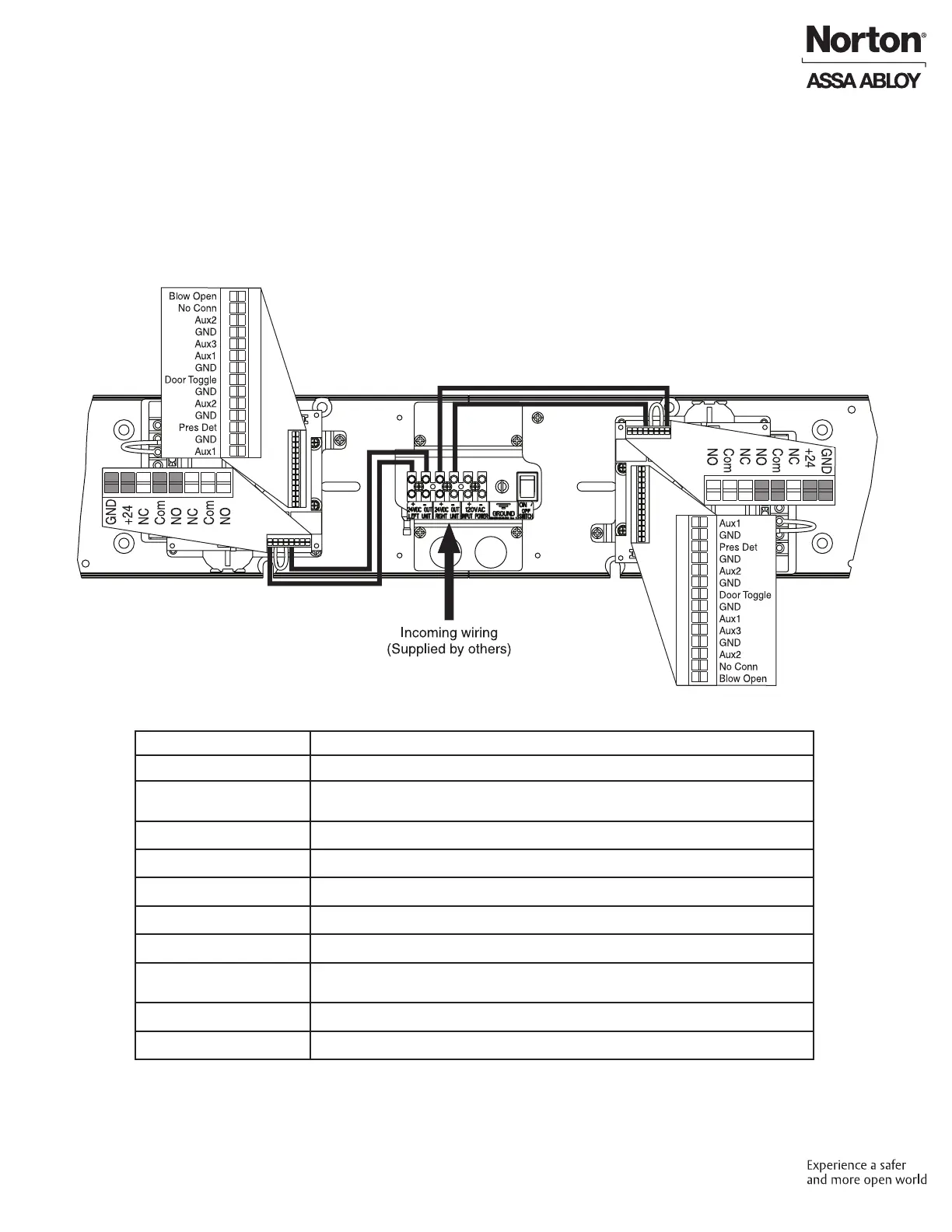

Factory Pre-Wiring of Connections and Incoming Wiring
Controller Error Codes
Error Code
Description
Short Circuit A short was sensed on the motor outputs
Temperature Trip
Power module reached 200°F or greater (too much load in too hot ambient
condition)
Over Voltage Line Voltage has reached 145VAC or greater
Under Voltage Line Voltage has dropped below 80VAC
Aux 1 Stuck Activation device connected to Aux 1 is sending constant signal
Aux 2 Stuck Activation device connected to Aux 2 is sending constant signal
Aux 3 Stuck Activation device connected to Aux 3 is sending constant signal
Comm Error
No communication between top and bottom controller boards. Boards not
functioning properly
Presence Detect Device connected to Presence Detect and was activated
Drive Disabled Selector mode switch on end cap closest to latch is in “OFF” position
To connect wiring:
For Incoming 120VAC and 24VDC for accessories
1. For 20 - 10 AWG wire
2. Strip end of wire 1/4 inch
3. Insert wire into appropriate position as shown
and use at head screw driver to secure
For Low Voltage / Dry Contacts on Inverter
1. For 24 - 16AWG wire
2. Strip end of wire 3/8 inch
3. Use at blade screw driver to push down on
white button above desired location, insert
wire, release button. Pull on wire to conrm
installed properly.
To Next Page
