D6001DE-R Double Unit Series (Double Egress) Power Operator

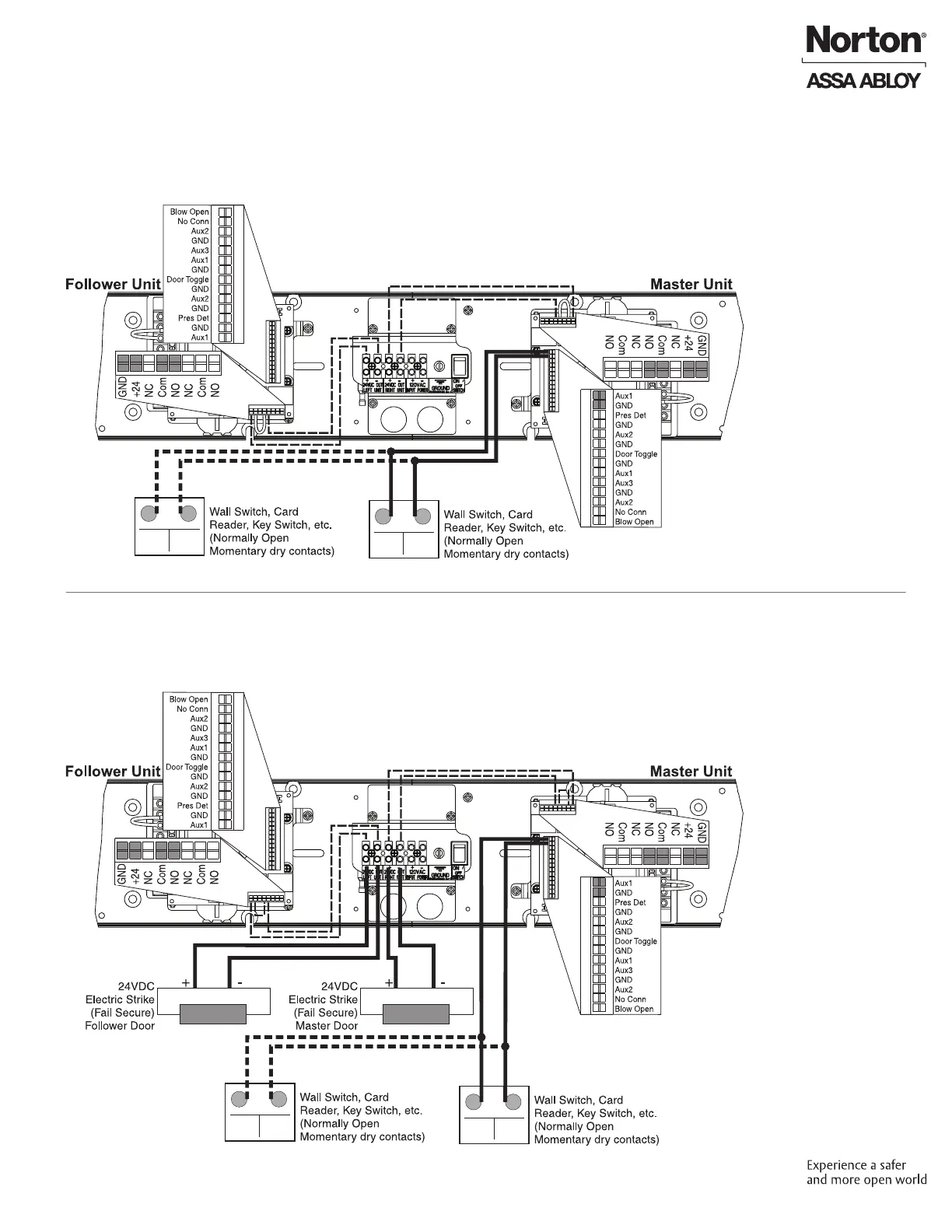

Basic Double Door Wiring Diagrams Using Factory Pre-Wired Connection
Standard Function with Switches
• For Master/Follow or Master-Coord/Follow
only (Sync Cable must be used to connect
inverters.)
• Doors are normally closed.
Fail Secure Electric Strike 24VDC Wiring
• For Master/Follow or Master-Coord/Follow
only (Sync Cable must be used to connect
inverters.)
• Doors are normally closed and latched.
• Activating either switch will open both
doors. Door will close after hold open time
delay has expired.
• Activating switch will unlock electric strike and
door will automatically open. Door will close
after hold open time delay has expired.
• Door will remain locked during power failure.
