Copyright © 2019-2020, ASSA ABLOY Accessories and Door Controls Group, Inc. All rights reserved. Reproduction in whole
or in part without the express written permission of ASSA ABLOY Accessories and Door Controls Group, Inc. is prohibited.
80-9360-1035-020 Rev 3 03/20
21

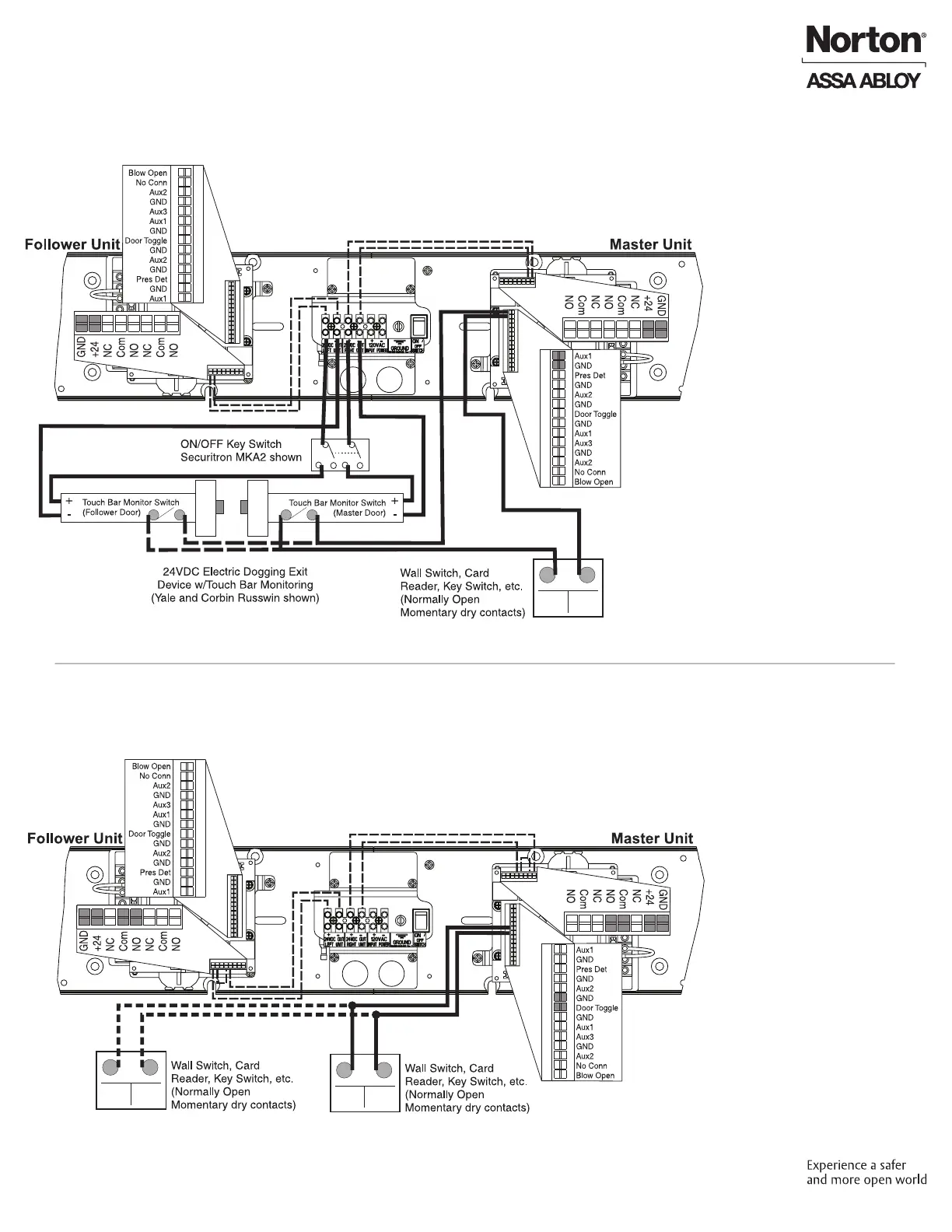

D6001DE-R Double Unit Series (Double Egress) Power Operator
Double Door Electric Dogging Exit Device Wiring
Double Door Hard Wired Executive Function Wiring
Factory Pre-Wiring Not Required to Change
• For Master/Follow or Master-
Coord/Follow only (Sync
Cable must be used to
connect inverters.)
• Doors are normally closed.
• Activating switch will open
door.
• Door will remain in indenite
hold open until activating
switch is activated a second
time causing door to close.
Change Factory Pre-Wiring to Illustration Below (move NO to +24)
• For Master/Follow or Master-
Coord/Follow only (Sync Cable
must be used to connect
inverters.)
• Doors are normally closed and
latched.
• Turning key switch ON will
apply power to exit device.
• First depression on device
touchpad will electrically dog
device for push/pull operation.
• Door will now open
automatically when wall switch
is depressed.
• Device will re-latch during
a power failure or when key
switch is turned off.
• Exit device allows egress at all
times. Exit device allows egress
during power failures.
• Current draw at Power Outputs
not to exceed 1.3 amps.
To Next Page
