Assa Abloy Norton D6001DE-R Double Unit Series User Manual

Copyright © 2019-2020, ASSA ABLOY Accessories and Door Controls Group, Inc. All rights reserved. Reproduction in whole
or in part without the express written permission of ASSA ABLOY Accessories and Door Controls Group, Inc. is prohibited.
80-9360-1035-020 Rev 3 03/20
25

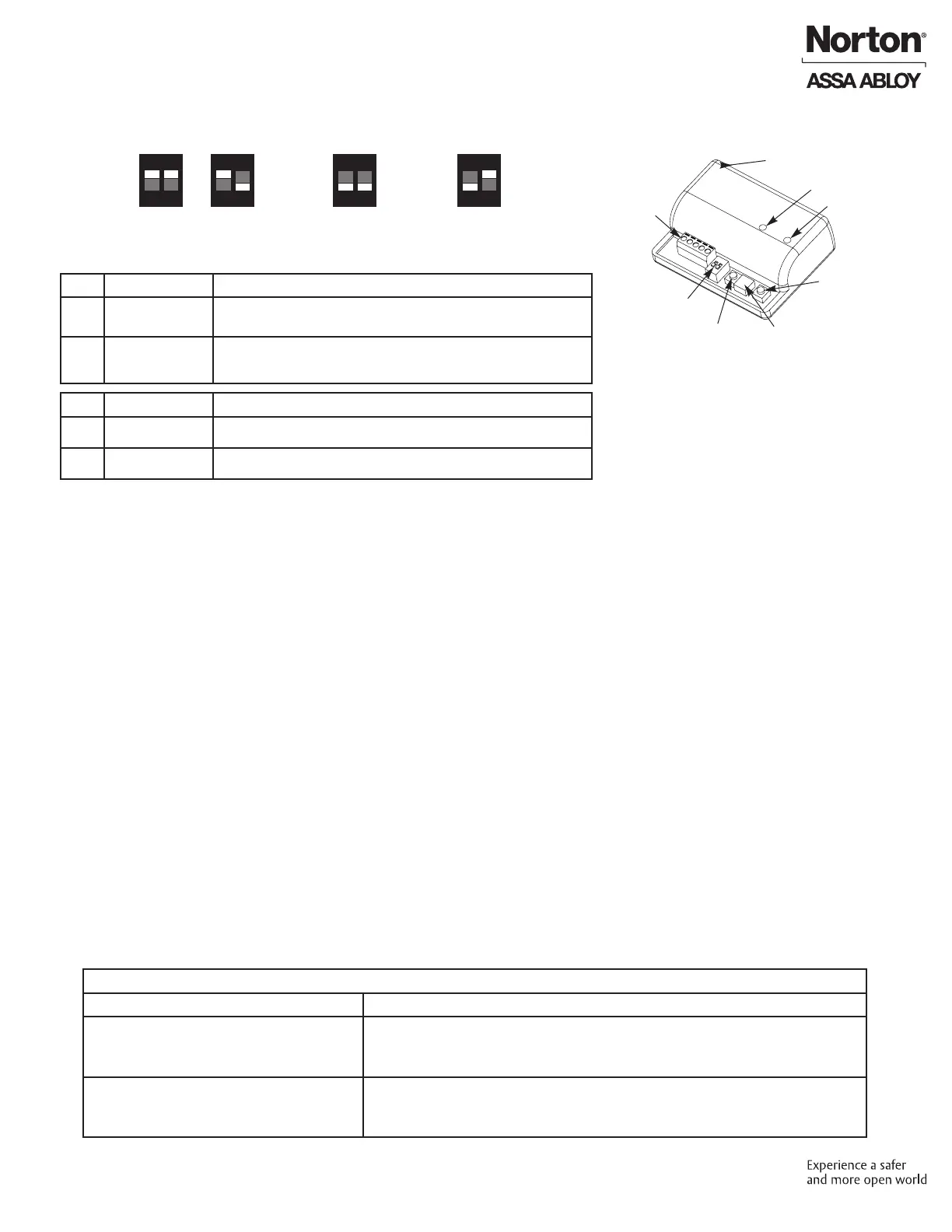

D6001DE-R Double Unit Series (Double Egress) Power Operator
433MHz Receiver User’s Guide
NOTE:
• Always stop pedestrian trafc through doorway when
performing tests that may result in unexpected reactions
by door.
• Ensure compliance with all applicable safety standards
upon completion of installation.
• See diagrams on page 23 for wire colors.
Hand-Held Conguration
1. Set dip switches to receiver to desired activation cycle (dip
switch 1 - Toggle or Pulse and dip switch 2 - 0.5s or 10s hold.
2. Press either Learn w/ Delay Button or Learn w/o Delay
Button on receiver depending on activation requirements
(if delay learn is selected, adjust potentiometer to
counterclockwise limit, 0 second delay). Red LED on
receiver will ash. After learn cycle is complete, adjust
potentiometer to desired delay time (0 - 30 sec).
3. Depress transmitter button repeatedly until Blue LED on
receiver illuminates (indicating reception of signal from
transmitter).
NOTE: Repeat Steps 2 - 3 to program additional
transmitters.
4. To test system, depress transmitter button (Red LED on
Transmitter will illuminate) and observe that Blue LED
illuminates on receiver. This indicates that relay has been
activated.
Push Plate Conguration
1. Before beginning, prepare installation of push plate.
2. Connect wires from transmitter to NO and COM contacts of
push plate’s switch.
3. Follow Steps 1 - 4 (Hand-Held Conguration); depress push
plate to activate transmitter.
4. Attach transmitter to inside of electrical box and complete
installation.
Removing Transmitter Code(s)
Single Transmitter Code:
• Press both Delay and No Delay Buttons simultaneously until
Red LED ashes once (approximately 1 second).
• Press transmitter button twice within 10 seconds and
transmitter code will be deleted.
All Transmitter Codes:
• Press and hold both Delay and No Delay Buttons
simultaneously until Blue LED illuminates then release
(approximately 10 seconds).
Red LED
Blue LED
Antenna Wire
Learn
w/o Delay
Button
Delay
Potentiometer
(Time Adjustment)
Learn w/
Delay Button
DIP Switch
Terminal
Strip
Troubleshooting
Problem
Solution
LED on receiver is ickering - unable to
program and/or won’t work
Push plate stuck or faulty transmitter. Disconnect each push plate until LED goes
out. If LED does not go out, remove each transmitter battery until it does. Replace
appropriate transmitter.
Receiver intermittently doesn’t receive
transmitter(s) signal.
Extend receiver antenna wire only in multiples of 6-3/4" (171)
Example: 6.75 x 4 = 27" (686) of extended antenna wire.
ON
1 2
PUL TOG
0.5s 10s
ON
1 2
PUL TOG
0.5s 10s
In Toggle Setting (1-ON), Hold
Time is inactive. Either setting
for #2 dip switch will have
same result.
ON
1 2
PUL TOG
0.5s 10s
0.5 second
Pulse Setting
ON
1 2
PUL TOG
0.5s 10s
10 second
Pulse Setting
#1
Description Function
OFF Pulse Relay Press transmitter once and relay will be active momentarily.
ON Toggle Relay
Press transmitter once and relay output is active indenitely.
Press it again and relay will de-energize indenitely.
#2
Description Function
OFF 0.5s Hold Time Relay will remain active 0.5 sec after loss of activation.
ON 10s Hold Time Relay will remain active 10 sec after loss of activation.
